SKU: LFR.50/5-6.2Z.EU

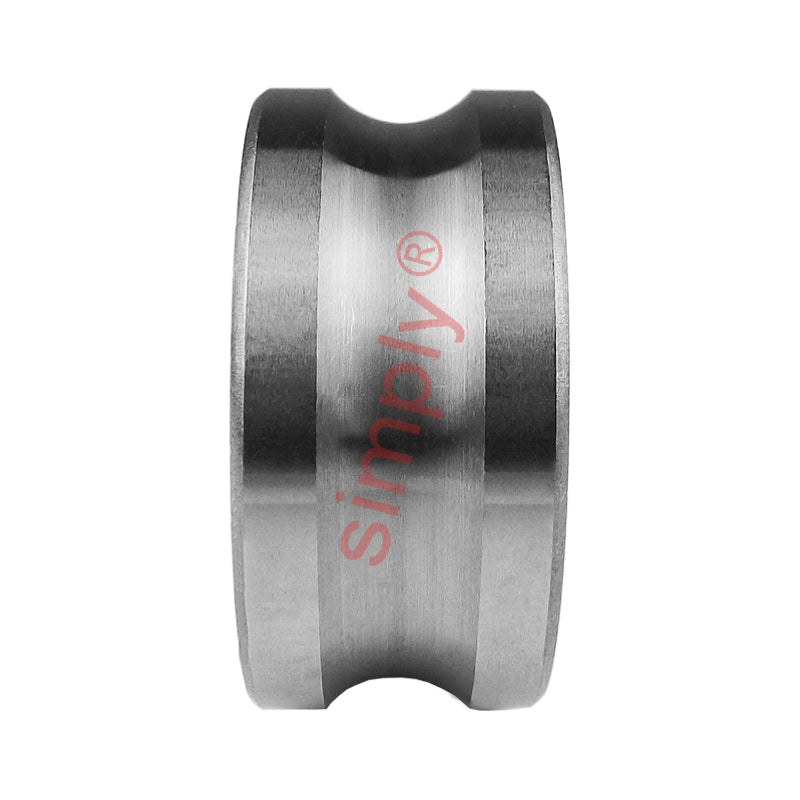

Budget LFR50/5-62Z Yoke Type Track Roller with U Groove 5x17x7/8mm
Budget LFR50/5-62Z Yoke Type Track Roller with U Groove 5x17x7/8mm
Regular price
$16.37
ex VAT
Regular price
Sale price
$16.37
ex VAT
Equivalent to: LFR50/5KDD LFR50562ZHLC
In stock
Price Break
10+
$10.96
19+
$10.35
29+
$10.22
39+
$10.10
49+
$9.98
74+
$9.85
99+
$9.24
199+
$9.11
249+
$8.99
499+
$8.87
999+
$8.62
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Please note: This track roller has a different width for the inner and outer raceways, the inner is 8mm wide the outer is 7mm wide.
|
Metal Shielded U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with metal shields inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The shields can be removed for applications that only require 1 shield. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 17mm
- Width:
- 7mm / 8mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| d | 5mm |
|---|---|
| D max | 17mm |
| B | 8mm |
| AT | 10.5mm |
| C | 7mm |
| ds | 6mm |
| r min | 0.2mm |
| Dynamic load | 1270 N |
| Static load | 820 N |
| Speed in grease | 1300 rpm |
| Speed in oil | 1780 rpm |
