SKU: LFR.50/8-6.2Z.EU

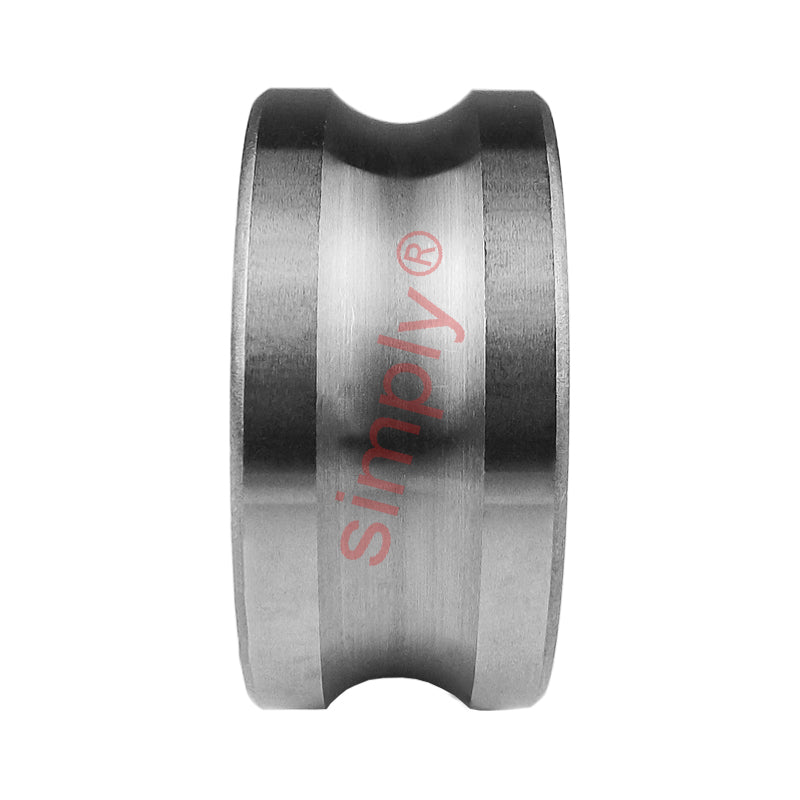

Budget LFR50/8-62Z Yoke Type Track Roller with U Groove 8x24x11mm
Budget LFR50/8-62Z Yoke Type Track Roller with U Groove 8x24x11mm
Regular price
$19.64
ex VAT
Regular price
Sale price
$19.64
ex VAT
Equivalent to: LFR8 LFR50/8KDD LFR50862Z
In stock
Price Break
10+
$13.15
19+
$12.42
29+
$12.27
39+
$12.12
49+
$11.97
74+
$11.82
99+
$11.08
199+
$10.94
249+
$10.79
499+
$10.64
999+
$10.35
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Metal Shielded U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with metal shields inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The shields can be removed for applications that only require 1 shield. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 24mm
- Width:
- 11mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| d | 8mm |
|---|---|
| D max | 24mm |
| B | 11mm |
| AT | 14mm |
| C | 11mm |
| ds | 6mm |
| r min | 0.3mm |
| Dynamic load | 3670 N |
| Static load | 2280 N |
| Speed in grease | 1300 rpm |
| Speed in oil | 4560 rpm |
