SKU: LFR.5207-302Z.MB

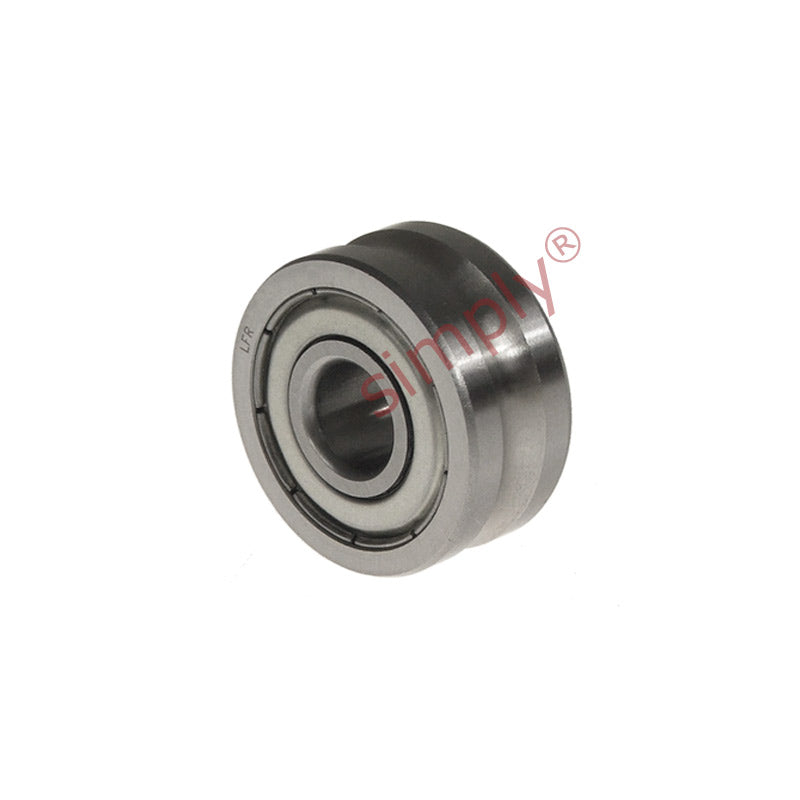

Major Brand LFR5207-302Z Yoke Type Track Roller with U Groove 30x80x27mm
Major Brand LFR5207-302Z Yoke Type Track Roller with U Groove 30x80x27mm
Regular price
$147.19
ex VAT
Regular price
Sale price
$147.19
ex VAT
Equivalent to: LFR5207-30KDD
In stock
Price Break
10+
$98.59
19+
$93.06
29+
$91.95
39+
$90.84
49+
$89.73
74+
$88.62
99+
$83.09
199+
$81.98
249+
$80.87
499+
$79.76
999+
$77.55
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Metal Shielded U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with metal shields inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The shields can be removed for applications that only require 1 shield. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 80mm
- Width:
- 27mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| d | 30mm |
|---|---|
| D max | 80mm |
| B | 29mm |
| AT | 51mm |
| C | 27mm |
| ds | 30mm |
| r min | 1mm |
| Dynamic load | 38000 N |
| Static load | 20800 N |
| Speed in grease | 21400 rpm |
| Speed in oil | 36200 rpm |
