SKU: LFR.5301-10.2RS.EU

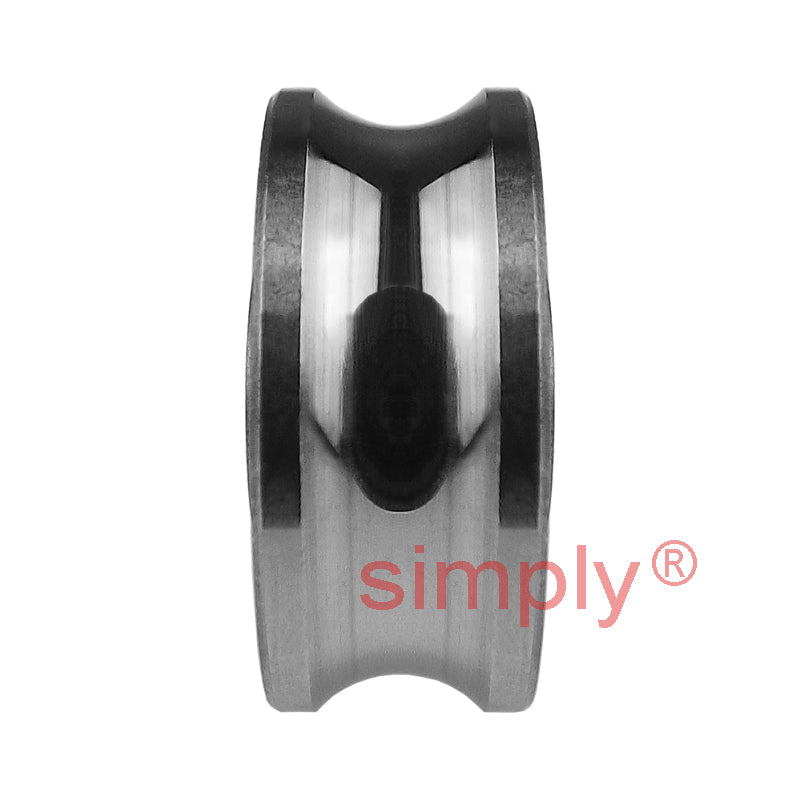

Budget LFR5301-102RS Yoke Type Track Roller with U Groove 12x42x19/19mm
Budget LFR5301-102RS Yoke Type Track Roller with U Groove 12x42x19/19mm
Regular price
$13.27
ex VAT
Regular price
Sale price
$13.27
ex VAT
Equivalent to: LFR5301NPP
In stock
Price Break
10+
$8.89
19+
$8.39
29+
$8.29
39+
$8.19
49+
$8.09
74+
$7.99
99+
$7.49
199+
$7.39
249+
$7.29
499+
$7.19
999+
$6.99
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with rubber seals inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The seal can be easily removed for applications that only require 1 seal. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 42mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 12mm |
|---|---|
| D max | 42mm |
| B | 19mm |
| AT | 24mm |
| C | 19mm |
| ds | 10mm |
| r min | 0.6mm |
| Dynamic load | 13000 N |
| Static load | 7700 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 14200 rpm |
