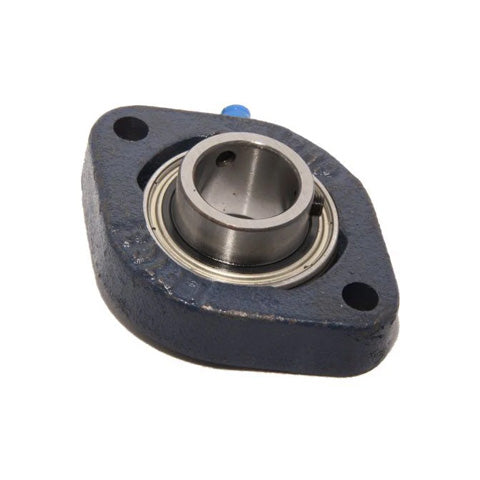

• RHP LFTC1-1/4AL Two Bolt Oval Cast Iron Flange Housing Bearing 1-1/4 inch Bore
1 1

SKU: LFTC1.1/4AL-RHP

RHP LFTC1-1/4AL Two Bolt Oval Cast Iron Flange Housing Bearing 1-1/4 inch Bore

RHP LFTC1-1/4AL Two Bolt Oval Cast Iron Flange Housing Bearing 1-1/4 inch Bore
$119.02 ex VAT
$119.02 ex VAT
Sale Sold out

In stock

Price Break
10+ $79.72
20+ $75.24
30+ $74.35
40+ $73.45
50+ $72.56
75+ $71.66
100+ $67.18
200+ $66.29
250+ $65.39
500+ $64.49
1000+ $62.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
LFTC
Bolt Hole Centres:
100.01mm = 3.937 (3-15/16) inch
Technical
Bore 1-1/4 inch
L 3.661 inch
H 4.921 inch
J 3.937 inch
G 0.375 inch
A 0.866 inch
A1 1.488 inch
B1 1.374 inch
s1 0.376 inch
d1 1.838 inch
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1235-1-1/4AG+insonly">1235-1-1/4AG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
