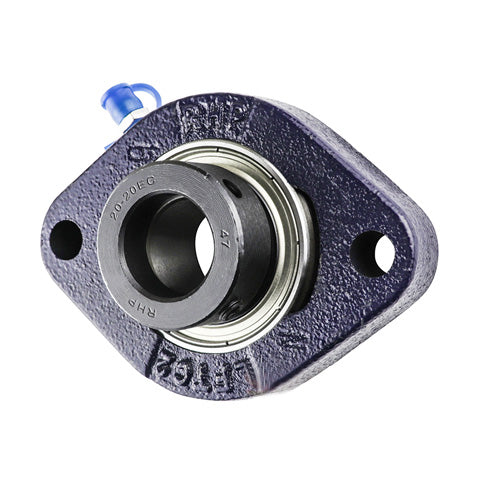

• RHP LFTC1-1/4EC Two Bolt Oval Cast Iron Flange Housing Bearing 1-1/4 inch Bore
1 1

SKU: LFTC1.1/4EC-RHP

RHP LFTC1-1/4EC Two Bolt Oval Cast Iron Flange Housing Bearing 1-1/4 inch Bore

RHP LFTC1-1/4EC Two Bolt Oval Cast Iron Flange Housing Bearing 1-1/4 inch Bore
$78.51 ex VAT
$78.51 ex VAT
Sale Sold out

In stock

Price Break
10+ $52.59
20+ $49.63
30+ $49.04
40+ $48.45
50+ $47.86
75+ $47.27
100+ $44.31
200+ $43.72
250+ $43.13
500+ $42.54
1000+ $41.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
LFTC
Bolt Hole Centres:
90.49mm = 3.563 (3-9/16) inch
Technical
Bore 1-1/4 inch
L 3.307 inch
H 4.409 inch
J 3.563 inch
G 0.375 inch
A 0.807 inch
A2 1.499 inch
B2 1.405 inch
s1 0.356 inch
d2 1.75 inch
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1230-1-1/4ECG+insonly">1230-1-1/4ECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
