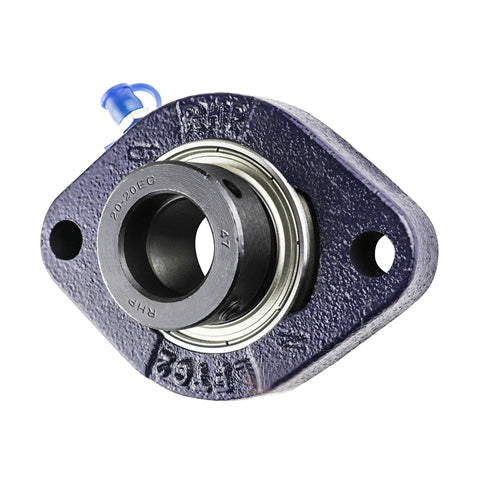

• RHP LFTC1-1/4ECL Two Bolt Oval Cast Iron Flange Housing Bearing 1-1/4 inch Bore
1 1

SKU: LFTC1.1/4ECL-RHP

RHP LFTC1-1/4ECL Two Bolt Oval Cast Iron Flange Housing Bearing 1-1/4 inch Bore

RHP LFTC1-1/4ECL Two Bolt Oval Cast Iron Flange Housing Bearing 1-1/4 inch Bore
$91.31 ex VAT
$91.31 ex VAT
Sale Sold out

In stock

Price Break
10+ $61.17
20+ $57.73
30+ $57.04
40+ $56.35
50+ $55.67
75+ $54.98
100+ $51.54
200+ $50.86
250+ $50.17
500+ $49.48
1000+ $48.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP LFTC EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back
Brand / Quality:
RHP - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
LFTC
Bolt Hole Centres:
100.01mm = 3.937 (3-15/16) inch
Technical
Bore 1-1/4 inch
L 3.661 inch
H 4.921 inch
J 3.937 inch
G 0.375 inch
A 0.866 inch
A2 1.643 inch
B2 1.531 inch
s1 0.376 inch
d2 2.188 inch
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1235-1-1/4ECG+insonly">1235-1-1/4ECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
