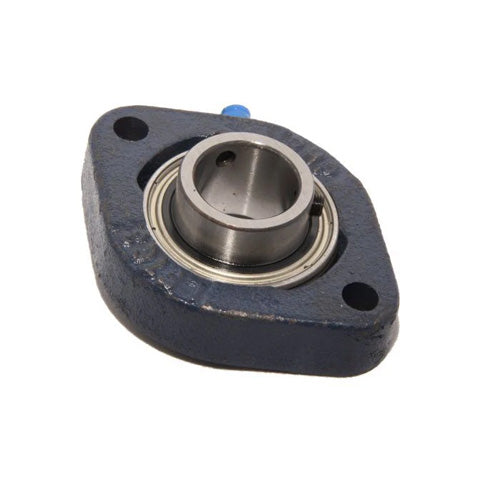

• RHP LFTC1-3/16 Two Bolt Oval Cast Iron Flange Housing Bearing 1-3/16 inch Bore
1 1

SKU: LFTC1.3/16-RHP

RHP LFTC1-3/16 Two Bolt Oval Cast Iron Flange Housing Bearing 1-3/16 inch Bore

RHP LFTC1-3/16 Two Bolt Oval Cast Iron Flange Housing Bearing 1-3/16 inch Bore
$63.88 ex VAT
$63.88 ex VAT
Sale Sold out

In stock

Price Break
10+ $42.79
20+ $40.39
30+ $39.91
40+ $39.43
50+ $38.94
75+ $38.46
100+ $36.06
200+ $35.58
250+ $35.10
500+ $34.62
1000+ $33.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
30.16mm = 1.187 (1-3/16) inch
Style:
LFTC
Bolt Hole Centres:
90.49mm = 3.563 (3-9/16) inch
Technical
Bore 1-3/16 inch
L 3.307 inch
H 4.409 inch
J 3.563 inch
G 0.375 inch
A 0.807 inch
A1 1.324 inch
B 1.5 inch
s 0.627 inch
d1 1.575 inch
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1030-1-3/16G+insonly">1030-1-3/16G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
