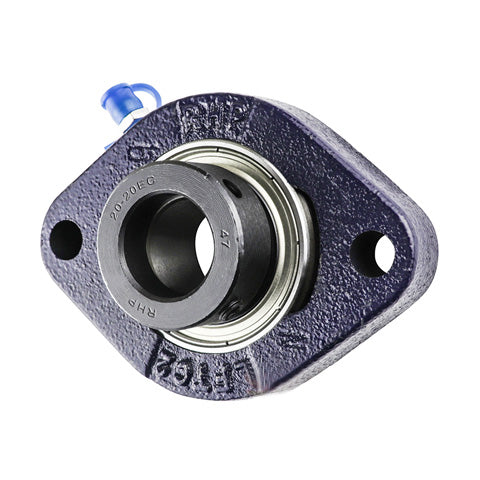

• RHP LFTC1-3/8EC Two Bolt Oval Cast Iron Flange Housing Bearing 1-3/8 inch Bore
1 1

SKU: LFTC1.3/8EC-RHP

RHP LFTC1-3/8EC Two Bolt Oval Cast Iron Flange Housing Bearing 1-3/8 inch Bore

RHP LFTC1-3/8EC Two Bolt Oval Cast Iron Flange Housing Bearing 1-3/8 inch Bore
$78.51 ex VAT
$78.51 ex VAT
Sale Sold out

In stock

Price Break
10+ $52.59
20+ $49.63
30+ $49.04
40+ $48.45
50+ $47.86
75+ $47.27
100+ $44.31
200+ $43.72
250+ $43.13
500+ $42.54
1000+ $41.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
34.93mm = 1.375 (1-3/8) inch
Style:
LFTC
Bolt Hole Centres:
100.01mm = 3.937 (3-15/16) inch
Technical
Bore 1-3/8 inch
L 3.661 inch
H 4.921 inch
J 3.937 inch
G 0.375 inch
A 0.866 inch
A2 1.643 inch
B2 1.531 inch
s1 0.376 inch
d2 2.188 inch
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1235-1-3/8ECG+insonly">1235-1-3/8ECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
