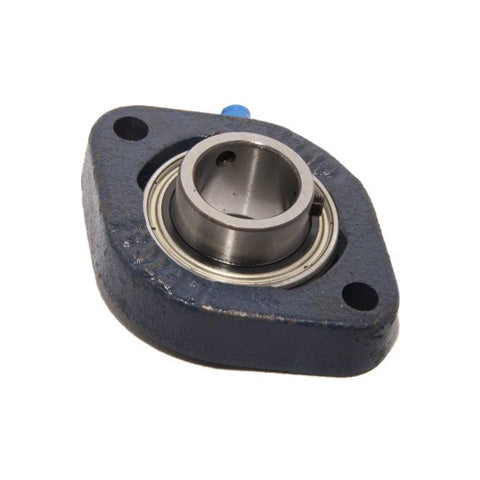

• RHP LFTC1-7/16 Two Bolt Oval Cast Iron Flange Housing Bearing 1-7/16 inch Bore
1 1

SKU: LFTC1.7/16-RHP

RHP LFTC1-7/16 Two Bolt Oval Cast Iron Flange Housing Bearing 1-7/16 inch Bore

RHP LFTC1-7/16 Two Bolt Oval Cast Iron Flange Housing Bearing 1-7/16 inch Bore
$75.48 ex VAT
$75.48 ex VAT
Sale Sold out

In stock

Price Break
10+ $50.56
20+ $47.72
30+ $47.16
40+ $46.59
50+ $46.02
75+ $45.45
100+ $42.61
200+ $42.04
250+ $41.47
500+ $40.91
1000+ $39.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Style:
LFTC
Bolt Hole Centres:
100.01mm = 3.937 (3-15/16) inch
Technical
Bore 1-7/16 inch
L 3.661 inch
H 4.921 inch
J 3.937 inch
G 0.375 inch
A 0.866 inch
A1 1.488 inch
B 1.688 inch
s 0.69 inch
d1 1.838 inch
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-7/16G+insonly">1035-1-7/16G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
