SKU: LFTC15EC-RHP

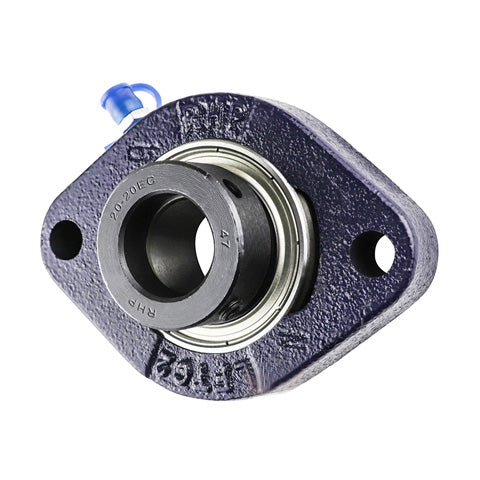

RHP LFTC15EC Two Bolt Oval Cast Iron Flange Housing Bearing 15mm Bore

Name: RHP LFTC15EC Two Bolt Oval Cast Iron Flange Housing Bearing 15mm Bore
Brand: RHP
SKU: LFTC15EC-RHP
Price: 43.70 USD
Availability: InStock

$43.70 ex VAT

Sale Sold out

In stock

Price Break

10+ $29.28

20+ $27.63

30+ $27.30

40+ $26.97

50+ $26.64

75+ $26.31

100+ $24.67

200+ $24.34

250+ $24.01

500+ $23.68

1000+ $23.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 15mm
Style:: LFTC
Bolt Hole Centres:: 63.5mm = 2.5 (2-1/2) inch

Technical

Bore	15mm
L	2.303 inch
H	3.189 inch
J	2.5 inch
G	0.25 inch
A	0.59 inch
A2	1.198 inch
B2	1.124 inch
s1	0.258 inch
d2	1.125 inch
Dynamic load	9550 N
Static load	4800 N
Rec max speed	7000 rpm
Weight	0.3 kg
Insert	<a href="advanced_search_result.php?keywords=1217-15ECG+insonly">1217-15ECG Click Here</a>
Casting group	1
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
