SKU: LFTC20DEC-RHP

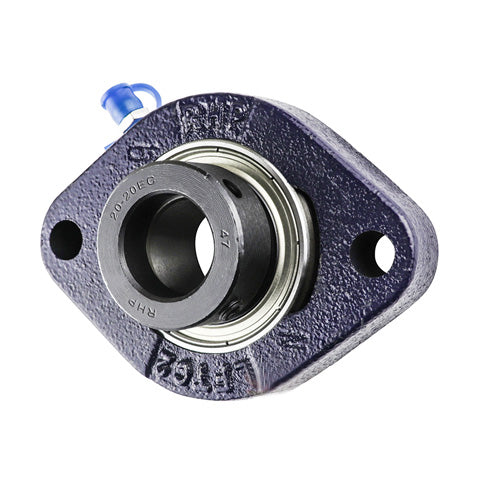

RHP LFTC20DEC Two Bolt Oval Cast Iron Flange Housing Bearing 20mm Bore
RHP LFTC20DEC Two Bolt Oval Cast Iron Flange Housing Bearing 20mm Bore
Out of stock
Share this product
Description
Description
|
RHP LFTC DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- LFTC
- Bolt Hole Centres:
- 71.5mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 66.5mm |
| H | 90.5mm |
| J | 71.5mm |
| G | 8mm |
| A | 17mm |
| A3 | 36.04mm |
| B3 | 43.62mm |
| s2 | 17.12mm |
| d2 | 33.3mm |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-20DECG+insonly">1020-20DECG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
