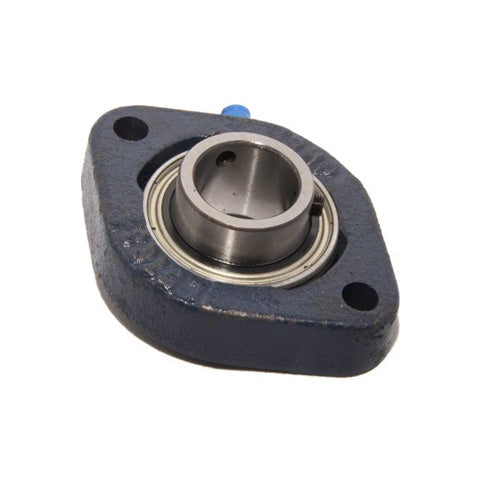

• RHP LFTC3/4 Two Bolt Oval Cast Iron Flange Housing Bearing 3/4 inch Bore
1 1

SKU: LFTC3/4-RHP

RHP LFTC3/4 Two Bolt Oval Cast Iron Flange Housing Bearing 3/4 inch Bore

RHP LFTC3/4 Two Bolt Oval Cast Iron Flange Housing Bearing 3/4 inch Bore
$45.15 ex VAT
$45.15 ex VAT
Sale Sold out

In stock

Price Break
10+ $30.24
20+ $28.54
30+ $28.20
40+ $27.86
50+ $27.52
75+ $27.18
100+ $25.48
200+ $25.14
250+ $24.80
500+ $24.46
1000+ $23.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Style:
LFTC
Bolt Hole Centres:
71.501mm = 2.815 inch
Technical
Bore 3/4 inch
L 2.618 inch
H 3.563 inch
J 2.815 inch
G 0.3125 inch
A 0.669 inch
A1 1.093 inch
B 1.219 inch
s 0.502 inch
d1 1.222 inch
Dynamic load 12800 N
Static load 6650 N
Rec max speed 6700 rpm
Weight 0.4 kg
Insert <a href="advanced_search_result.php?keywords=1020-3/4G+insonly">1020-3/4G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
