SKU: LFTC3/4EC-RHP

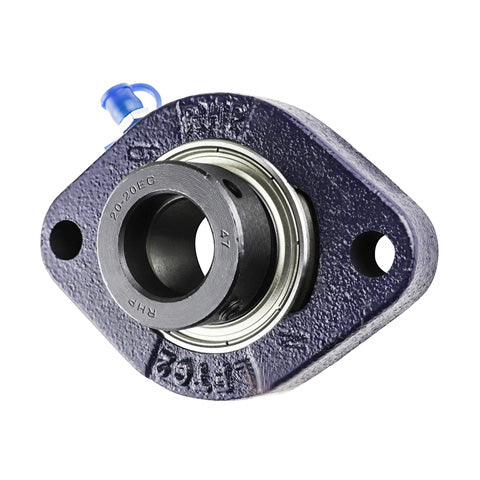

RHP LFTC3/4EC Two Bolt Oval Cast Iron Flange Housing Bearing 3/4 inch Bore

Name: RHP LFTC3/4EC Two Bolt Oval Cast Iron Flange Housing Bearing 3/4 inch Bore
Brand: RHP
SKU: LFTC3/4EC-RHP
Price: 49.12 USD
Availability: InStock

$49.12 ex VAT

Sale Sold out

In stock

Price Break

10+ $32.90

20+ $31.05

30+ $30.69

40+ $30.32

50+ $29.95

75+ $29.58

100+ $27.73

200+ $27.36

250+ $26.99

500+ $26.62

1000+ $25.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 19.05mm = 0.75 (3/4) inch
Style:: LFTC
Bolt Hole Centres:: 71.501mm = 2.815 inch

Technical

Bore	3/4 inch
L	2.618 inch
H	3.563 inch
J	2.815 inch
G	0.3125 inch
A	0.669 inch
A2	1.296 inch
B2	1.217 inch
s1	0.298 inch
d2	1.311 inch
Dynamic load	12800 N
Static load	6650 N
Rec max speed	6700 rpm
Weight	0.4 kg
Insert	<a href="advanced_search_result.php?keywords=1220-3/4ECG+insonly">1220-3/4ECG Click Here</a>
Casting group	2
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
