SKU: LFTC35-RHP

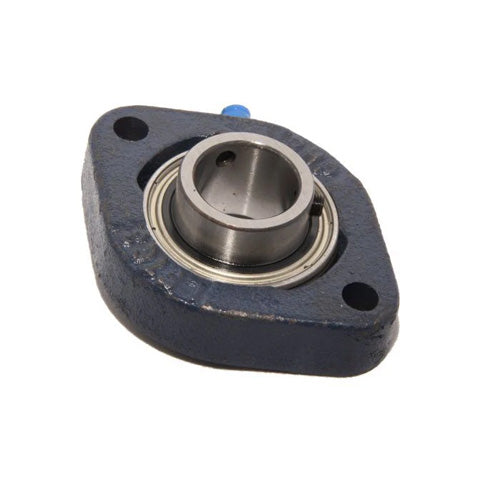

RHP LFTC35 Two Bolt Oval Cast Iron Flange Housing Bearing 35mm Bore
RHP LFTC35 Two Bolt Oval Cast Iron Flange Housing Bearing 35mm Bore
Regular price
$71.16
ex VAT
Regular price
Sale price
$71.16
ex VAT
In stock
Price Break
10+
$47.67
20+
$44.99
30+
$44.45
40+
$43.92
50+
$43.38
75+
$42.85
100+
$40.17
200+
$39.63
250+
$39.10
500+
$38.56
1000+
$37.49
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP LFTC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- LFTC
- Bolt Hole Centres:
- 100mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 93mm |
| H | 125mm |
| J | 100mm |
| G | 10mm |
| A | 22mm |
| A1 | 37.8mm |
| B | 42.88mm |
| s | 17.53mm |
| d1 | 46.69mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-35G+insonly">1035-35G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
