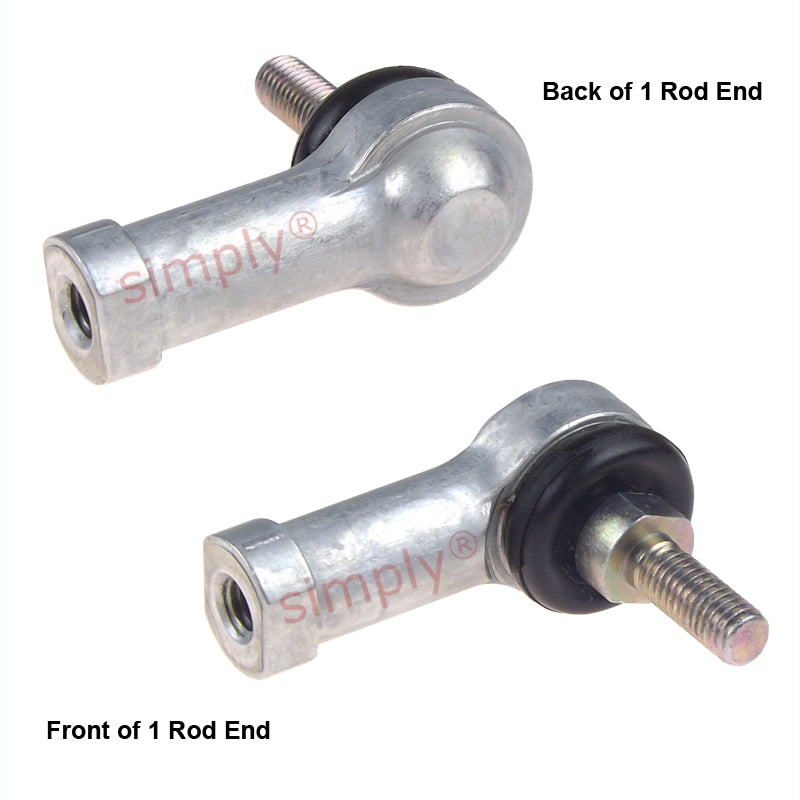

IKO LHSA10M Right Hand Metric Steel / Steel Studded Copper Alloy Bushing with Fixed Dust Cover L-Ball Rod End M10x1.5 Thread

SKU: LHSA-10M-IKO

IKO LHSA10M Right Hand Metric Steel / Steel Studded Copper Alloy Bushing with Fixed Dust Cover L-Ball Rod End M10x1.5 Thread

$19.87 ex VAT
$19.87
ex VAT
In stock

Quantity Price Breaks

10 $17.68
19 $16.69
29 $16.49
39 $16.29
49 $16.09
74 $15.90
99 $14.90
199 $14.70
249 $14.51
499 $14.31
999 $13.91
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
IKO LHSA10M Right Hand Metric Steel / Steel Studded Copper Alloy Bushing with Fixed Dust Cover L-Ball Rod End M10x1.5 Thread
SKU: LHSA-10M-IKO

IKO LHSA10M Right Hand Metric Steel / Steel Studded Copper Alloy Bushing with Fixed Dust Cover L-Ball Rod End M10x1.5 Thread

$19.87 ex VAT
$19.87
ex VAT

Description

L-Ball LHSA Rod Ends: The L-Ball LHSA is a high quality compact rod-end. Constructed with a dust cover on the stud side, this rod end is pre-loaded with quality lithium soap based grease, allowing these rods to be run for extended periods of time between re-lubrication. Other advantages included excellent lubrication with anti dust properties.
The ball-studs of LHSA 10 and lower are formed as a single solid body, LHSA 12 and higher which are designed for larger loads have the stud friction-welded to a high precision steel ball to give better resistance to wear.
L-Balls have a maximum operating temperature of +80°C
Note: The threads on the studs are always right-handed threads, the internal threads are handed dependent on the version purchased. eg: if you purchased an LHSA12 then the internal thread will be right-handed whereas in the case of an LHSA12L the internal thread will be left-handed. (The L in the part number indicates this)
Benefits: Very high quality, excellent lubrication, can be run for extended periods between re-lubrication

Technical

Stud size = M10
Thread = M10x1.5
V = 10mm
D = 28mm
L = 57mm
L1 = 43mm
L2 = 23mm
l1 = 6.5mm
W1 = 17mm
W2 = 17mm
D1 = 15mm
D2 = 19mm
e = 49mm
P = 12mm
e1 = 16mm
e2 = 21mm
e3 = 17mm
Ball Diameter = 19.05mm
Static load = 7400 N
