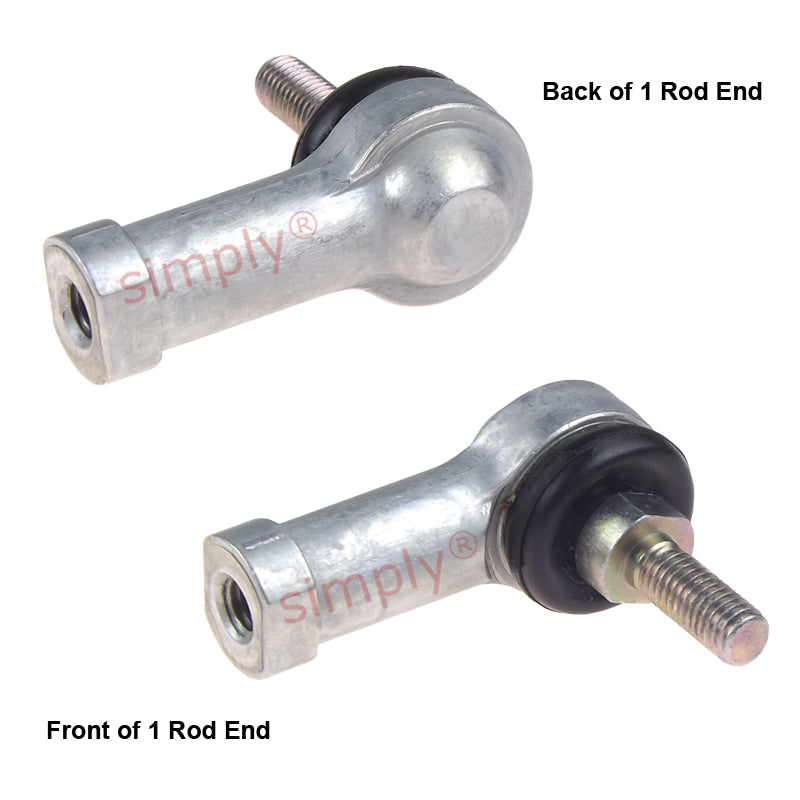

IKO LHSA12L Left Hand Metric Steel / Steel Studded Copper Alloy Bushing with Fixed Dust Cover L-Ball Rod End M12x1.75 Thread

SKU: LHSA-12L-IKO

IKO LHSA12L Left Hand Metric Steel / Steel Studded Copper Alloy Bushing with Fixed Dust Cover L-Ball Rod End M12x1.75 Thread

$26.50 ex VAT
$26.50
ex VAT
Not in stock

Quantity Price Breaks

10 $23.59
19 $22.26
29 $22.00
39 $21.73
49 $21.47
74 $21.20
99 $19.88
199 $19.61
249 $19.35
499 $19.08
999 $18.55
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
IKO LHSA12L Left Hand Metric Steel / Steel Studded Copper Alloy Bushing with Fixed Dust Cover L-Ball Rod End M12x1.75 Thread
SKU: LHSA-12L-IKO

IKO LHSA12L Left Hand Metric Steel / Steel Studded Copper Alloy Bushing with Fixed Dust Cover L-Ball Rod End M12x1.75 Thread

$26.50 ex VAT
$26.50
ex VAT

Description

L-Ball LHSA Rod Ends: The L-Ball LHSA is a high quality compact rod-end. Constructed with a dust cover on the stud side, this rod end is pre-loaded with quality lithium soap based grease, allowing these rods to be run for extended periods of time between re-lubrication. Other advantages included excellent lubrication with anti dust properties.
The ball-studs of LHSA 10 and lower are formed as a single solid body, LHSA 12 and higher which are designed for larger loads have the stud friction-welded to a high precision steel ball to give better resistance to wear.
L-Balls have a maximum operating temperature of +80°C
Note: The threads on the studs are always right-handed threads, the internal threads are handed dependent on the version purchased. eg: if you purchased an LHSA12 then the internal thread will be right-handed whereas in the case of an LHSA12L the internal thread will be left-handed. (The L in the part number indicates this)
Benefits: Very high quality, excellent lubrication, can be run for extended periods between re-lubrication

Technical

Stud size = M12
Thread = M12x1.75
V = 12mm
D = 34mm
L = 67mm
L1 = 50mm
L2 = 27mm
l1 = 6.5mm
W1 = 19mm
W2 = 19mm
D1 = 17.5mm
D2 = 22mm
e = 64mm
P = 14mm
e1 = 20mm
e2 = 30mm
e3 = 20mm
Ball Diameter = 22.225mm
Static load = 9900 N
