IKO LHSA14L Left Hand Metric Steel / Steel Studded Copper Alloy Bushing with Fixed Dust Cover L-Ball Rod End M14x2 Thread
SKU: LHSA-14L-IKO

IKO LHSA14L Left Hand Metric Steel / Steel Studded Copper Alloy Bushing with Fixed Dust Cover L-Ball Rod End M14x2 Thread

$31.68 ex VAT
$31.68
ex VAT

Description

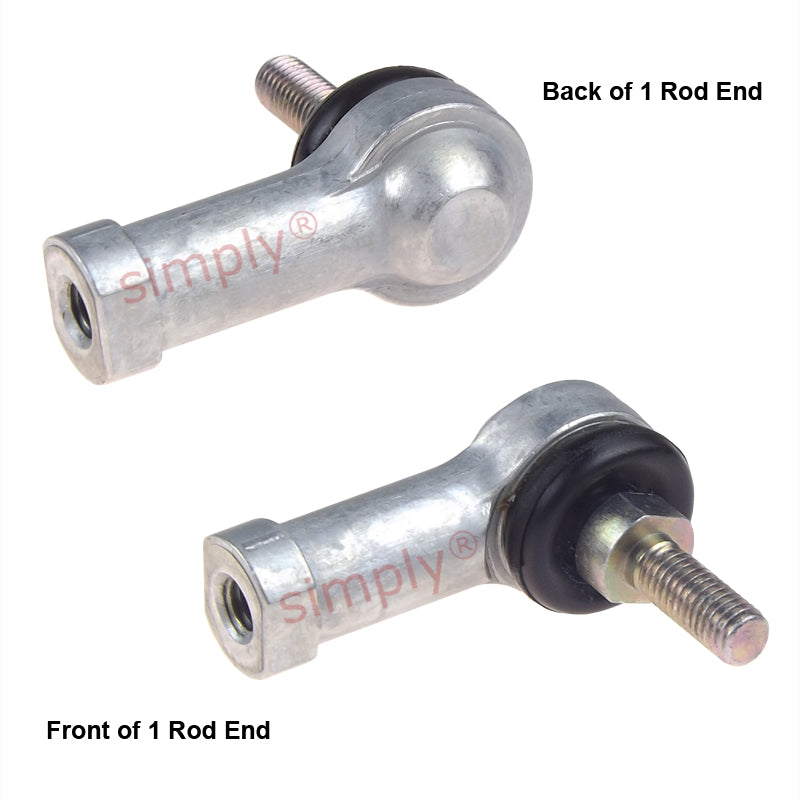

L-Ball LHSA Rod Ends: The L-Ball LHSA is a high quality compact rod-end. Constructed with a dust cover on the stud side, this rod end is pre-loaded with quality lithium soap based grease, allowing these rods to be run for extended periods of time between re-lubrication. Other advantages included excellent lubrication with anti dust properties.
The ball-studs of LHSA 10 and lower are formed as a single solid body, LHSA 12 and higher which are designed for larger loads have the stud friction-welded to a high precision steel ball to give better resistance to wear.
L-Balls have a maximum operating temperature of +80°C
Note: The threads on the studs are always right-handed threads, the internal threads are handed dependent on the version purchased. eg: if you purchased an LHSA12 then the internal thread will be right-handed whereas in the case of an LHSA12L the internal thread will be left-handed. (The L in the part number indicates this)
Benefits: Very high quality, excellent lubrication, can be run for extended periods between re-lubrication

Technical

Stud size = M14
Thread = M14x2
V = 14mm
D = 38mm
L = 76mm
L1 = 57mm
L2 = 30mm
l1 = 8mm
W1 = 22mm
W2 = 22mm
D1 = 20mm
D2 = 25mm
e = 72mm
P = 17mm
e1 = 22.5mm
e2 = 33.5mm
e3 = 22mm
Ball Diameter = 25.4mm
Static load = 14600 N
