SKU: LHSA-4-IKO

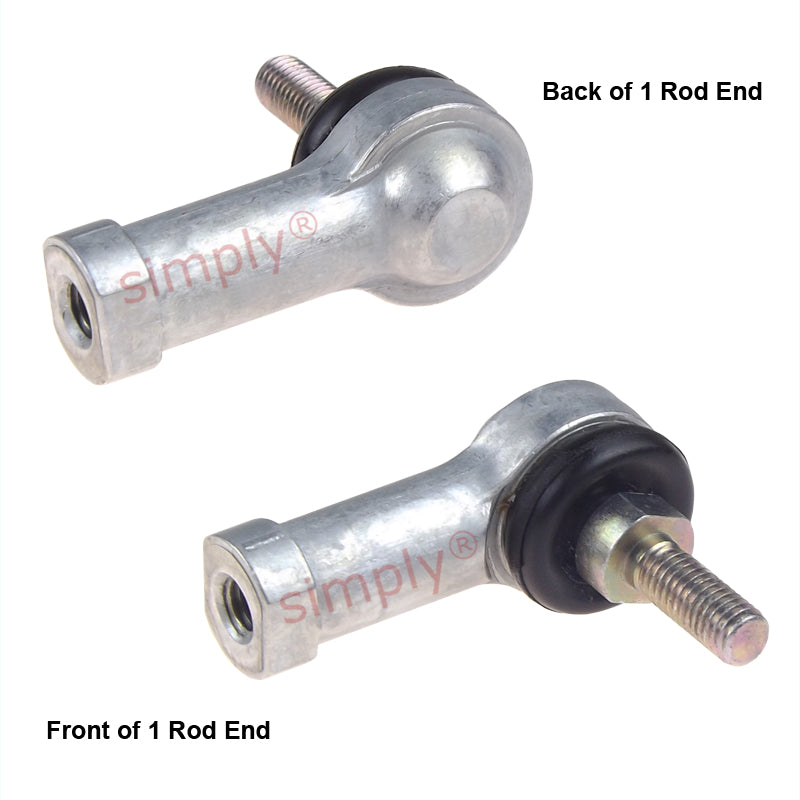

IKO LHSA4 Right Hand Metric Steel / Steel Studded Low Carbon Steel Bushing no Dust Cover L-Ball Rod End M4x0.7 Thread
- Regular price
- $17.64 ex VAT
- Sale price
- $17.64
- Regular price
-
Quantity Price Breaks
IKO LHSA4 Right Hand Metric Steel / Steel Studded Low Carbon Steel Bushing no Dust Cover L-Ball Rod End M4x0.7 Thread
- Regular price
- $17.64 ex VAT
- Sale price
- $17.64
- Regular price
-
Description
L-Ball LHSA Rod Ends: The L-Ball LHSA is a high quality compact rod-end. This rod end is pre-loaded with quality lithium soap based grease, allowing these rods to be run for extended periods of time between re-lubrication. Other advantages included excellent lubrication with anti dust properties.
The ball-studs of LHSA 10 and lower are formed as a single solid body, LHSA 12 and higher which are designed for larger loads have the stud friction-welded to a high precision steel ball to give better resistance to wear.
L-Balls have a maximum operating temperature of +80°C
Note: The threads on the studs are always right-handed threads, the internal threads are handed dependent on the version purchased. eg: if you purchased an LHSA12 then the internal thread will be right-handed whereas in the case of an LHSA12L the internal thread will be left-handed. (The L in the part number indicates this)
Benefits: Very high quality, excellent lubrication, can be run for extended periods between re-lubrication.
