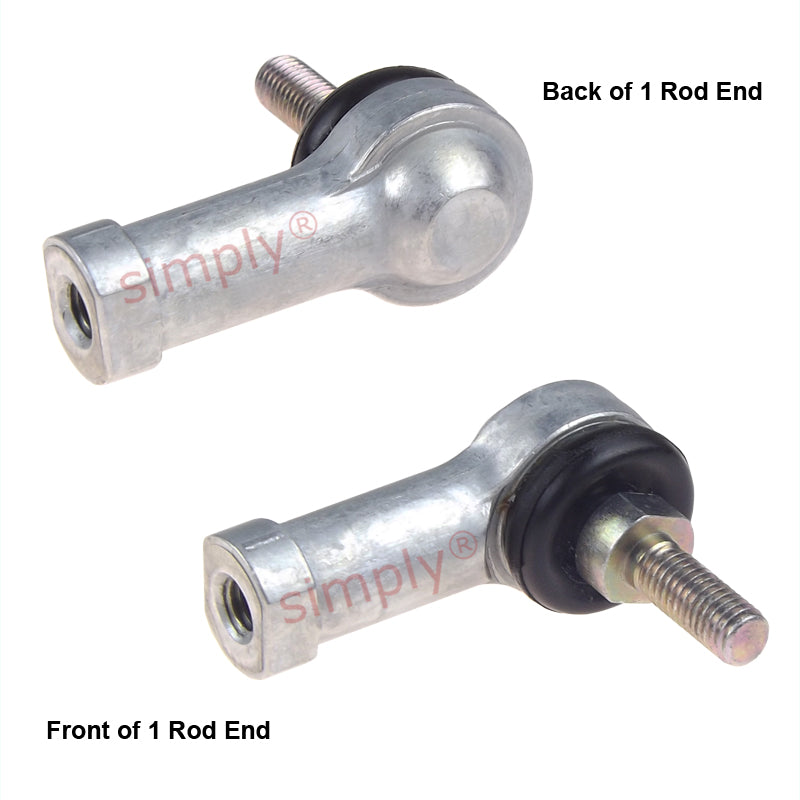

IKO LHSA4L Left Hand Metric Steel / Steel Studded Low Carbon Steel Bushing no Dust Cover L-Ball Rod End M4x0.7 Thread

SKU: LHSA-4L-IKO

IKO LHSA4L Left Hand Metric Steel / Steel Studded Low Carbon Steel Bushing no Dust Cover L-Ball Rod End M4x0.7 Thread

$17.64 ex VAT
$17.64
ex VAT
Not in stock

Quantity Price Breaks

10 $15.70
19 $14.82
29 $14.64
39 $14.46
49 $14.29
74 $14.11
99 $13.23
199 $13.05
249 $12.88
499 $12.70
999 $12.35
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
IKO LHSA4L Left Hand Metric Steel / Steel Studded Low Carbon Steel Bushing no Dust Cover L-Ball Rod End M4x0.7 Thread
SKU: LHSA-4L-IKO

IKO LHSA4L Left Hand Metric Steel / Steel Studded Low Carbon Steel Bushing no Dust Cover L-Ball Rod End M4x0.7 Thread

$17.64 ex VAT
$17.64
ex VAT

Description

L-Ball LHSA Rod Ends: The L-Ball LHSA is a high quality compact rod-end. This rod end is pre-loaded with quality lithium soap based grease, allowing these rods to be run for extended periods of time between re-lubrication. Other advantages included excellent lubrication with anti dust properties.
The ball-studs of LHSA 10 and lower are formed as a single solid body, LHSA 12 and higher which are designed for larger loads have the stud friction-welded to a high precision steel ball to give better resistance to wear.
L-Balls have a maximum operating temperature of +80°C
Note: The threads on the studs are always right-handed threads, the internal threads are handed dependent on the version purchased. eg: if you purchased an LHSA12 then the internal thread will be right-handed whereas in the case of an LHSA12L the internal thread will be left-handed. (The L in the part number indicates this)
Benefits: Very high quality, excellent lubrication, can be run for extended periods between re-lubrication

Technical

Stud size = M4
Thread = M4x0.7
V = 3.4mm
D = 14mm
L = 25mm
L1 = 18mm
L2 = 8mm
l1 = 4mm
W1 = 8mm
D1 = 8mm
D2 = 10mm
e = 19.5mm
P = 5.5mm
e1 = 7mm
e2 = 7mm
e3 = 5mm
Ball Diameter = 8mm
Static load = 880 N
