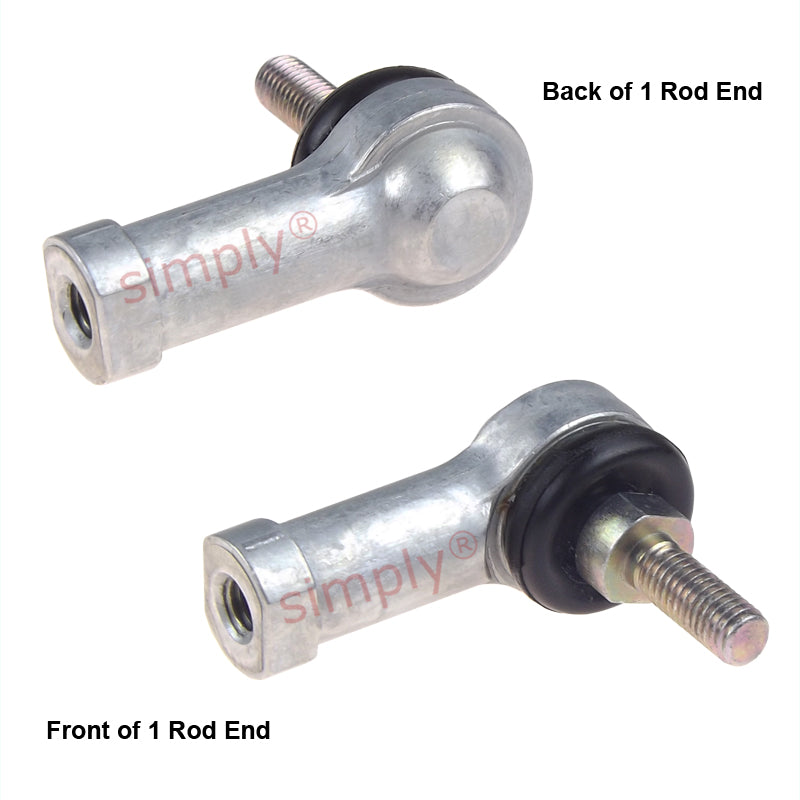

IKO LHSA8L Left Hand Metric Steel / Steel Studded Copper Alloy Bushing with Fixed Dust Cover L-Ball Rod End M8x1.25 Thread

SKU: LHSA-8L-IKO

IKO LHSA8L Left Hand Metric Steel / Steel Studded Copper Alloy Bushing with Fixed Dust Cover L-Ball Rod End M8x1.25 Thread

$16.58 ex VAT
$16.58
ex VAT
Not in stock

Quantity Price Breaks

10 $14.76
19 $13.93
29 $13.76
39 $13.60
49 $13.43
74 $13.26
99 $12.44
199 $12.27
249 $12.10
499 $11.94
999 $11.61
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
IKO LHSA8L Left Hand Metric Steel / Steel Studded Copper Alloy Bushing with Fixed Dust Cover L-Ball Rod End M8x1.25 Thread
SKU: LHSA-8L-IKO

IKO LHSA8L Left Hand Metric Steel / Steel Studded Copper Alloy Bushing with Fixed Dust Cover L-Ball Rod End M8x1.25 Thread

$16.58 ex VAT
$16.58
ex VAT

Description

L-Ball LHSA Rod Ends: The L-Ball LHSA is a high quality compact rod-end. Constructed with a dust cover on the stud side, this rod end is pre-loaded with quality lithium soap based grease, allowing these rods to be run for extended periods of time between re-lubrication. Other advantages included excellent lubrication with anti dust properties.
The ball-studs of LHSA 10 and lower are formed as a single solid body, LHSA 12 and higher which are designed for larger loads have the stud friction-welded to a high precision steel ball to give better resistance to wear.
L-Balls have a maximum operating temperature of +80°C
Note: The threads on the studs are always right-handed threads, the internal threads are handed dependent on the version purchased. eg: if you purchased an LHSA12 then the internal thread will be right-handed whereas in the case of an LHSA12L the internal thread will be left-handed. (The L in the part number indicates this)
Benefits: Very high quality, excellent lubrication, can be run for extended periods between re-lubrication

Technical

Stud size = M8
Thread = M8x1.25
V = 8mm
D = 24mm
L = 48mm
L1 = 36mm
L2 = 19mm
l1 = 5mm
W1 = 14mm
W2 = 14mm
D1 = 13mm
D2 = 16mm
e = 41.5mm
P = 10mm
e1 = 14.5mm
e2 = 17mm
e3 = 12.5mm
Ball Diameter = 15mm
Static load = 4380 N
