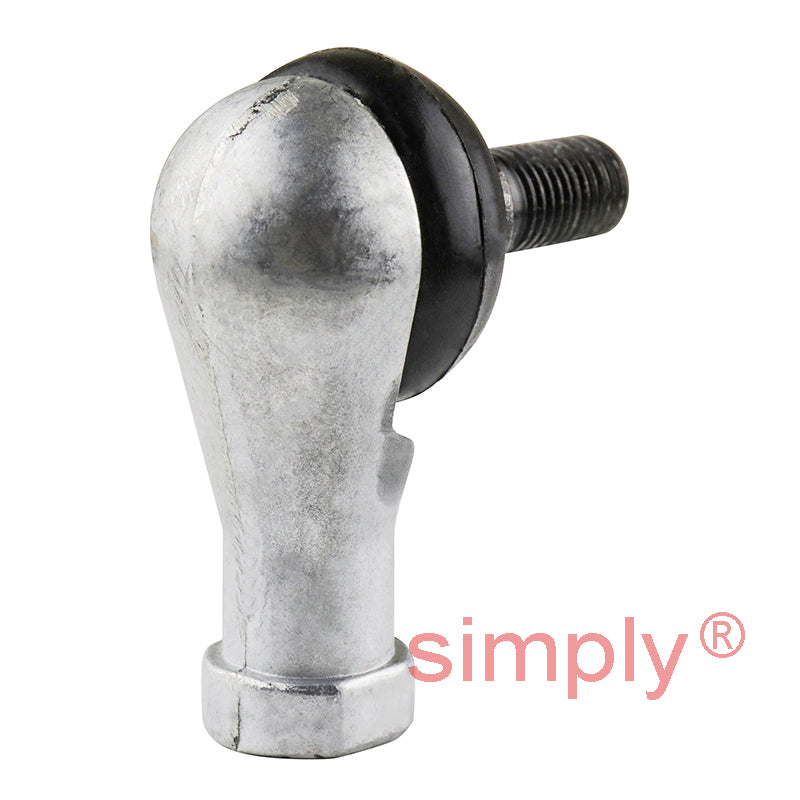

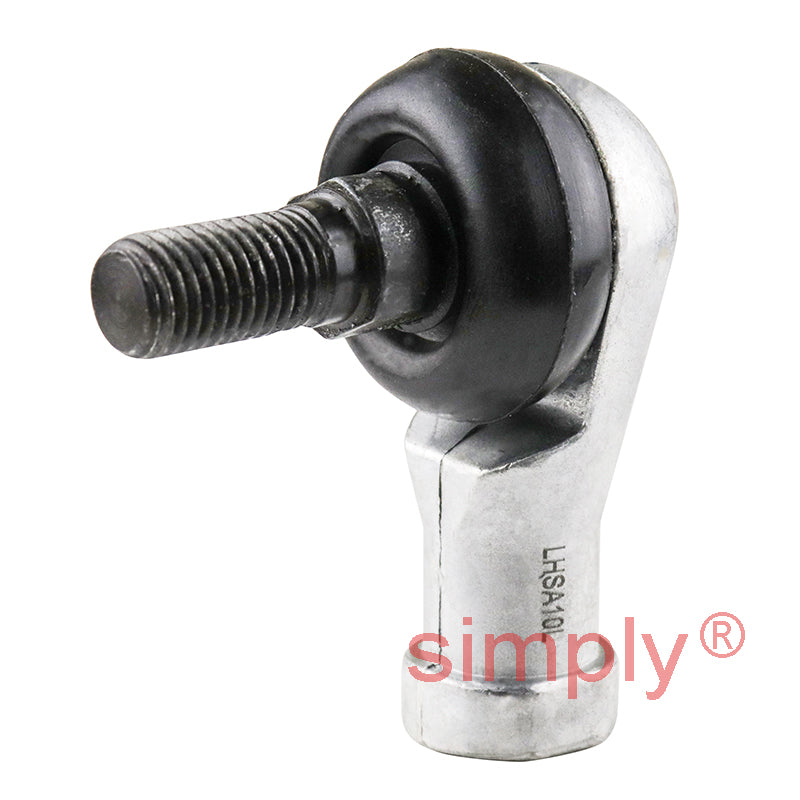

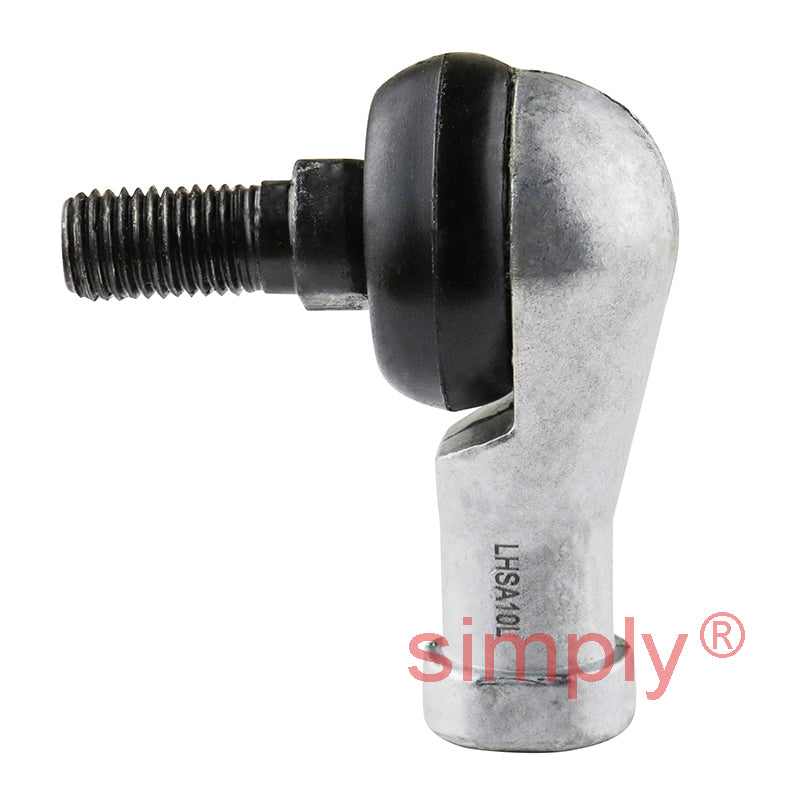

• Premier Budget LHSA10L Left Hand Thread Studded Elbow L-Ball End Joint M10x1.25mm Thread
  • Premier Budget LHSA10L Left Hand Thread Studded Elbow L-Ball End Joint M10x1.25mm Thread
  • Premier Budget LHSA10L Left Hand Thread Studded Elbow L-Ball End Joint M10x1.25mm Thread
1 3

SKU: LHSA10L-SQL10-RS-EU

Premier Budget LHSA10L Left Hand Thread Studded Elbow L-Ball End Joint M10x1.25mm Thread

Premier Budget LHSA10L Left Hand Thread Studded Elbow L-Ball End Joint M10x1.25mm Thread
$13.34 ex VAT
$13.34 ex VAT
Sale Sold out

Equivalent to: SQL10-RS

In stock

Price Break
10+ $8.93
19+ $8.43
29+ $8.33
39+ $8.23
49+ $8.13
74+ $8.03
99+ $7.53
199+ $7.43
249+ $7.33
499+ $7.23
999+ $7.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M10x1.25
Thread Direction:
Left Hand
Technical
--- Part Details
d 10mm
d1 M10x1.25mm
d2 14mm
d3 30mm
l 50.5mm
l1 15mm
l2 17mm
l3 37mm
S1 11mm
L 57mm
L1 43mm
L2 6.5mm
L3 21mm
D1 15mm
D2 19mm
D3 27mm
S2 17mm
--- Angles and Loading
Deflection angle max a 25degrees
Load Rating(kN) 10kN
Weight(g) 112g
