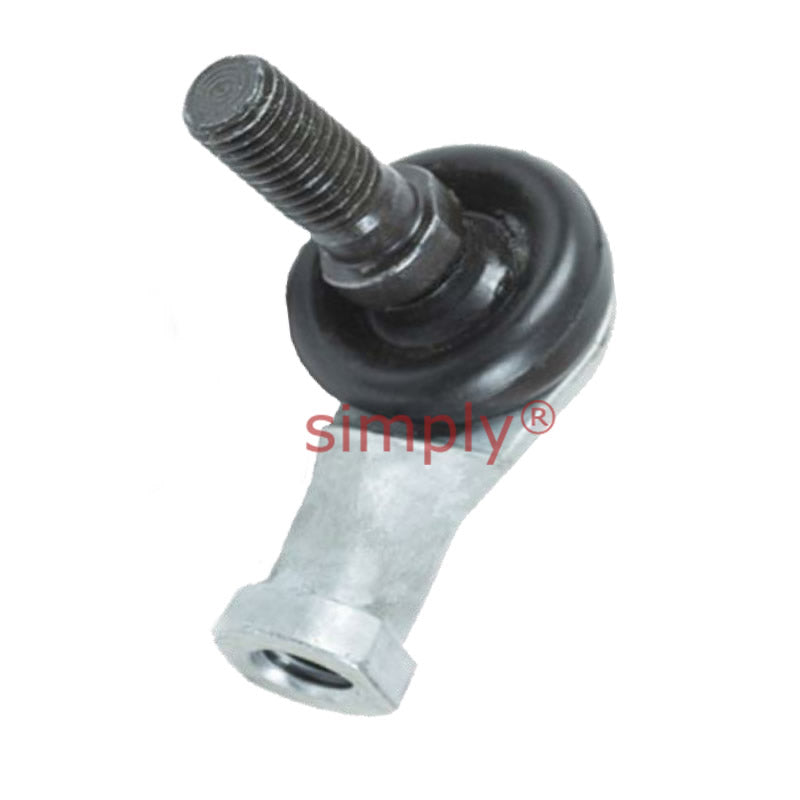

Premier Budget LHSA8L Left Hand Thread Studded Elbow L-Ball End Joint M8x1.25mm Thread

SKU: LHSA8L-SQL8-RS-EU

Premier Budget LHSA8L Left Hand Thread Studded Elbow L-Ball End Joint M8x1.25mm Thread

$9.76 ex VAT
$9.76
ex VAT
Equivalent to: SQL8-RS
Not in stock

Quantity Price Breaks

10 $8.69
19 $8.20
29 $8.10
39 $8.00
49 $7.91
74 $7.81
99 $7.32
199 $7.22
249 $7.12
499 $7.03
999 $6.83
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Premier Budget LHSA8L Left Hand Thread Studded Elbow L-Ball End Joint M8x1.25mm Thread
SKU: LHSA8L-SQL8-RS-EU

Premier Budget LHSA8L Left Hand Thread Studded Elbow L-Ball End Joint M8x1.25mm Thread

$9.76 ex VAT
$9.76
ex VAT

Description

L-Ball LHSA Rod Ends: The L-Ball LHSA is a high quality compact rod-end. Constructed with a dust cover on the stud side, this rod end is pre-loaded with quality lithium soap-based grease, allowing these rods to be run for extended periods of time between re-lubrication. Other advantages included excellent lubrication with anti-dust properties.
The ball studs of LHSA 10 and lower are formed as a single solid body, LHSA 12 and higher which are designed for larger loads have the stud friction-welded to a high precision steel ball to give better resistance to wear.
L-Balls have a maximum operating temperature of +80°C
Note: The threads on the studs are always right-handed threads, the internal threads are handed dependent on the version purchased. eg: if you purchased an LHSA12 then the internal thread will be right-handed whereas in the case of an LHSA12L the internal thread will be left-handed. (The L in the part number indicates this)
Benefits: Very high quality, excellent lubrication, can be run for extended periods between re-lubrication
