SKU: LM.10.UU.EU

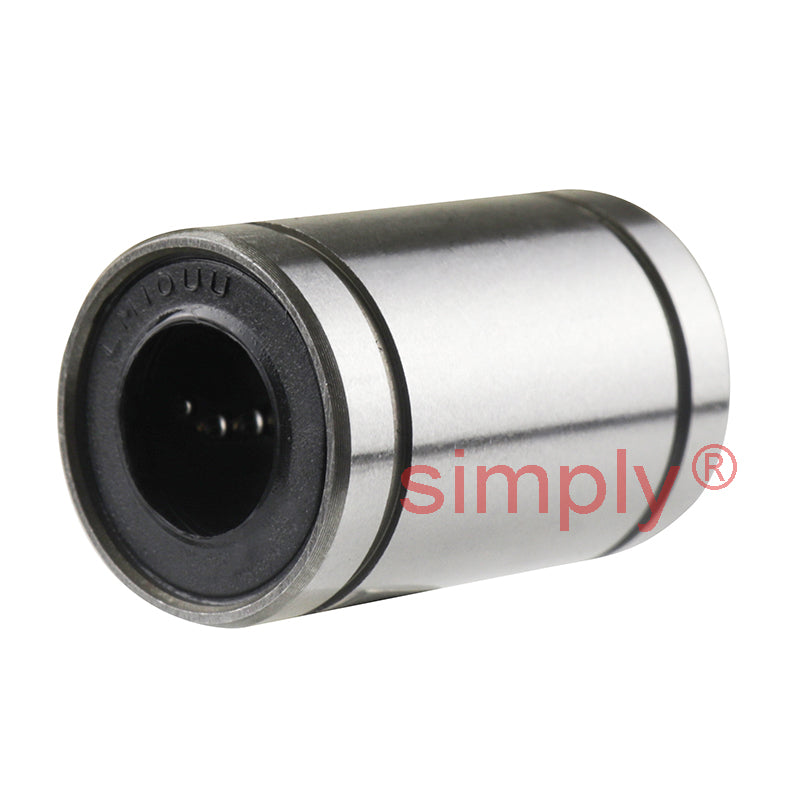

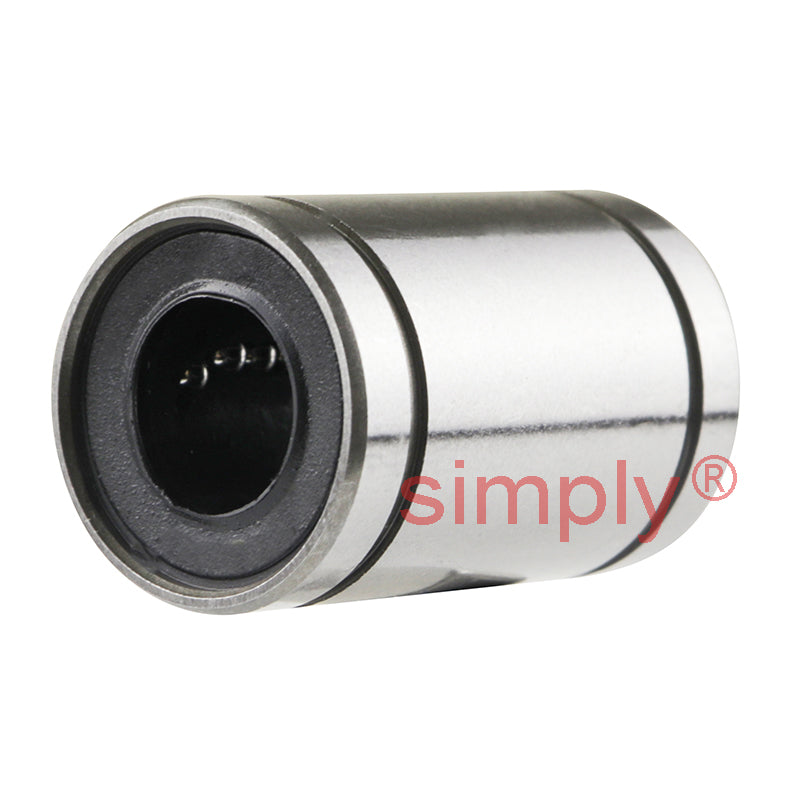

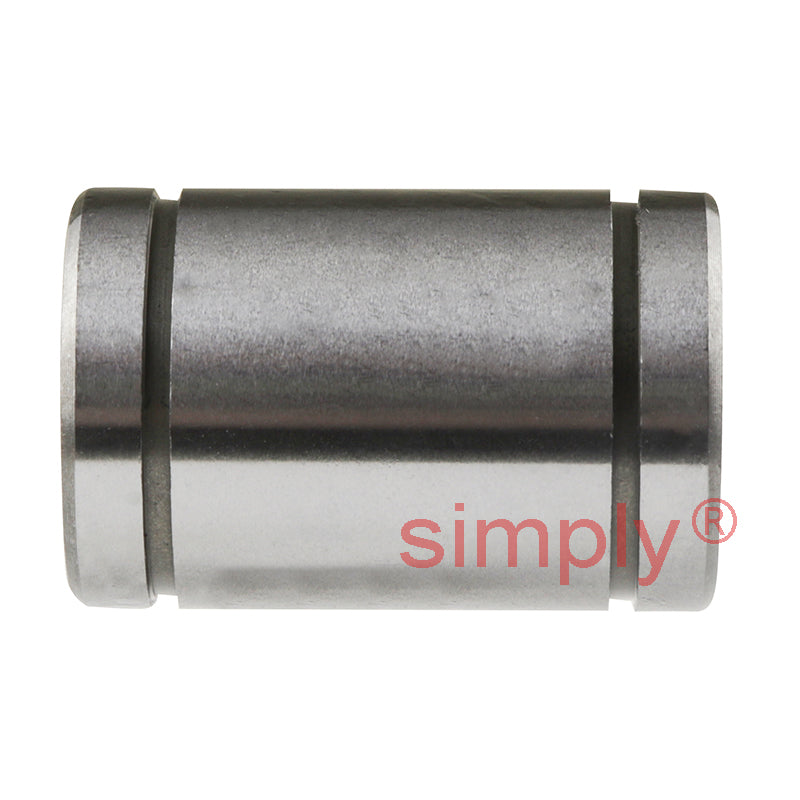

LM10UU Closed Linear Ball Bushing with Rubber Seals 10x19x29mm

LM10UU Closed Linear Ball Bushing with Rubber Seals 10x19x29mm
$12.37 ex VAT
$12.37 ex VAT
Sale Sold out

Equivalent to: SM10GUU LBD10UU LB10NYDD N10VUU L10UU TB10UU KLM10LL SDM10YUU

In stock

Price Break
3+ $8.28
5+ $7.82
10+ $7.72
15+ $7.63
20+ $7.54
30+ $7.45
40+ $6.98
50+ $6.89
60+ $6.79
75+ $6.70
100+ $6.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
10mm
Outside Diameter:
19mm
Length:
29mm
Technical
Inside Diameter dr 10mm Tol + 0 to - 6µm
Outside Diameter D 19mm Tol + 0 to - 10µm
Length L 29mm Tol + 0 to - 200µm
W 1.3mm
D1 18mm
Eccentricity 8µm
Dynamic load C 26 kgf
Static load C<sub>o</sub> 43 kgf
Weight 30 g
B 22mm Tol + 0 to - 200&micro;m
Number of ball rows 4
Tolerances dr & D Apply to closed type only
