• LM12UUAJ Adjustable Linear Ball Bushing with Rubber Seals 12x21x30mm
  • LM12UUAJ Adjustable Linear Ball Bushing with Rubber Seals 12x21x30mm
  • LM12UUAJ Adjustable Linear Ball Bushing with Rubber Seals 12x21x30mm
1 3

SKU: LM.12.UU.AJ.EU

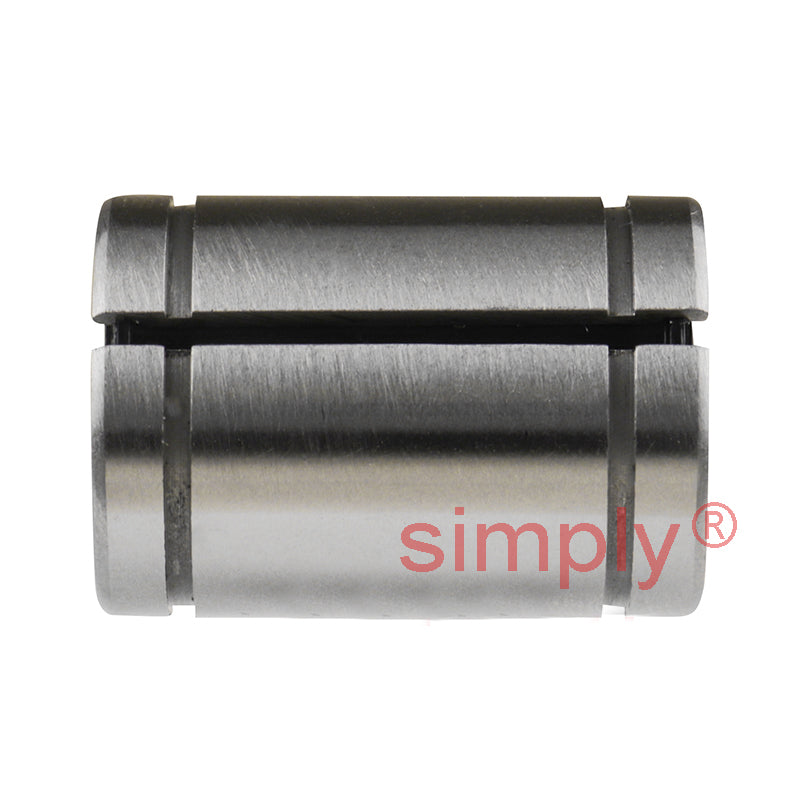

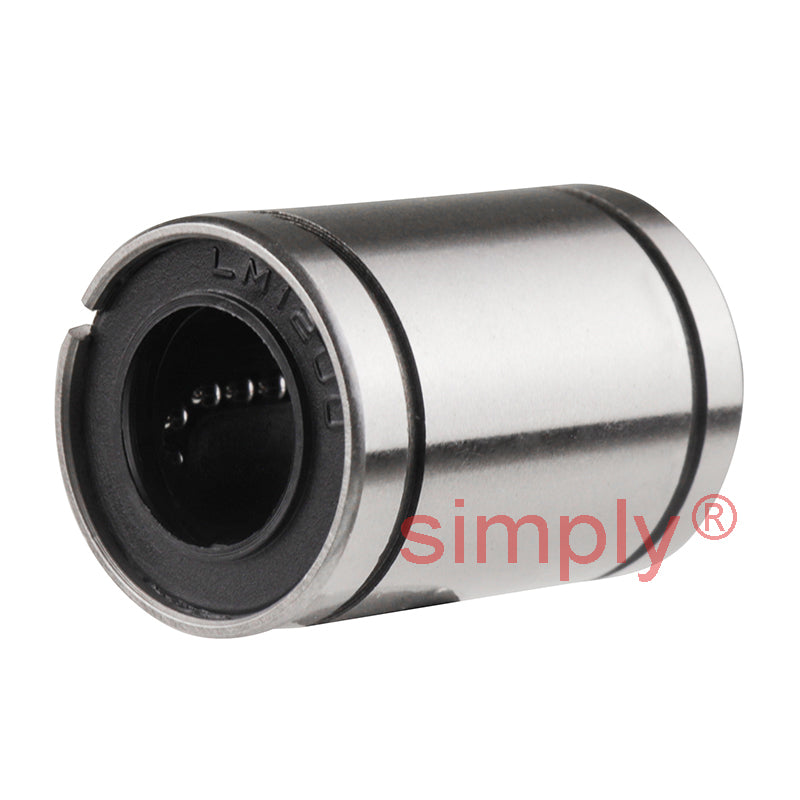

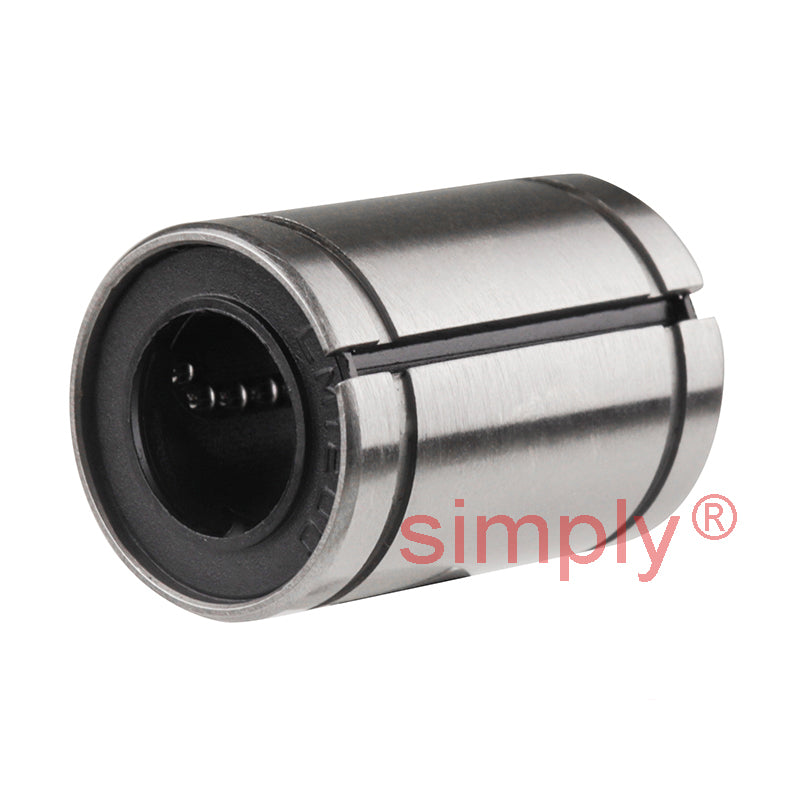

LM12UUAJ Adjustable Linear Ball Bushing with Rubber Seals 12x21x30mm

LM12UUAJ Adjustable Linear Ball Bushing with Rubber Seals 12x21x30mm
$18.85 ex VAT
$18.85 ex VAT
Sale Sold out

Equivalent to: SM12GUUAJ LBD12UUAJ LB12NTYDD N12VUUADJ L12AJDUU

In stock

Price Break
3+ $12.63
5+ $11.92
10+ $11.78
15+ $11.64
20+ $11.49
30+ $11.35
40+ $10.64
50+ $10.50
60+ $10.36
75+ $10.22
100+ $9.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Outside Diameter:
21mm
Length:
30mm
Technical
Inside Diameter dr 12mm Tol + 0 to - 6µm
Outside Diameter D 21mm Tol + 0 to - 12µm
Length L 30mm Tol + 0 to - 200µm
W 1.3mm
D1 20mm
h 1.5mm
Eccentricity 8µm
Dynamic load C 27 kgf
Static load C<sub>o</sub> 50 kgf
Weight 31.5 g
B 23mm Tol + 0 to - 200&micro;m
Number of ball rows 4
