SKU: LM.12.UU.EU

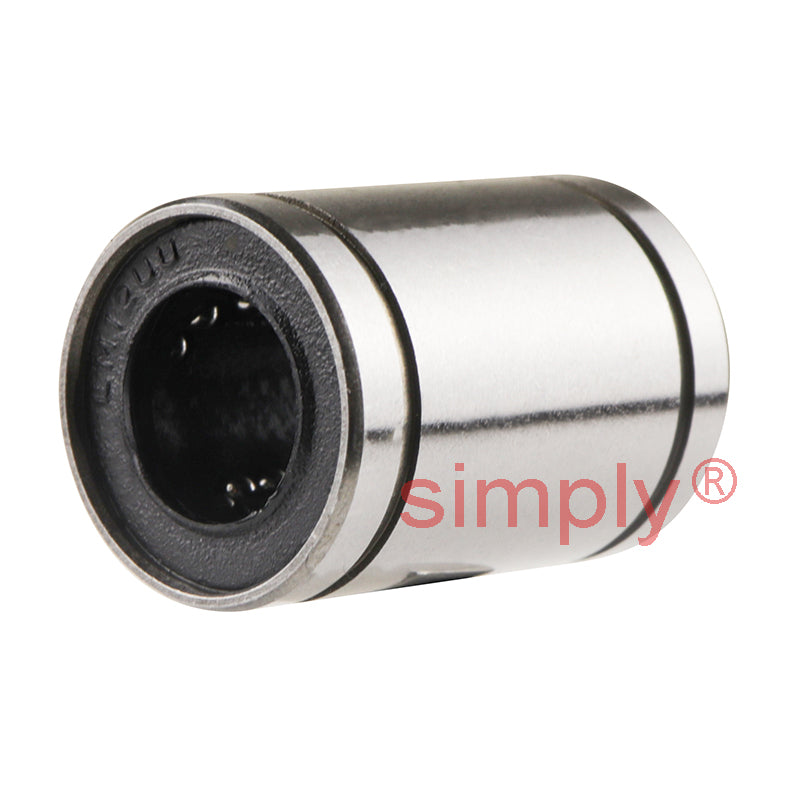

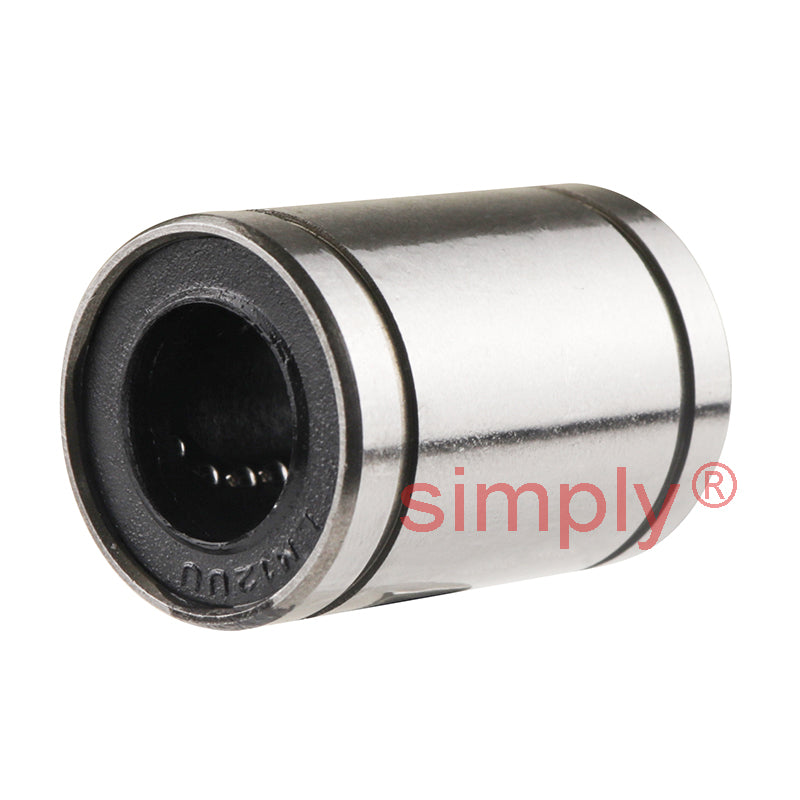

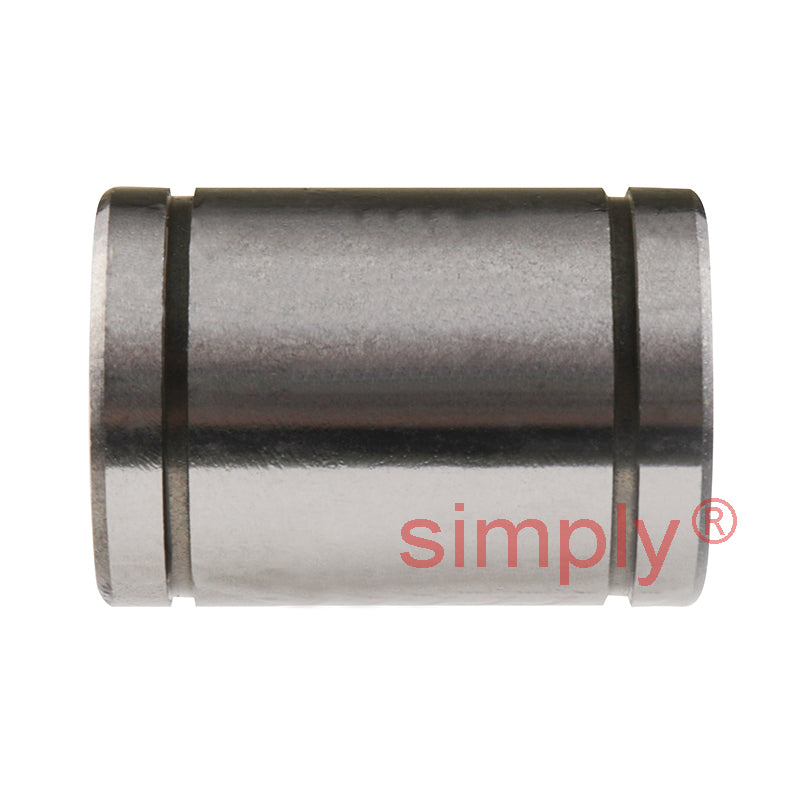

LM12UU Closed Linear Ball Bushing with Rubber Seals 12x21x30mm

LM12UU Closed Linear Ball Bushing with Rubber Seals 12x21x30mm
$13.74 ex VAT
$13.74 ex VAT
Sale Sold out

Equivalent to: SM12GUU LBD12UU LB12NYDD N12VUU L12UU TB12UU KLM12LL SDM12YUU

In stock

Price Break
3+ $9.20
5+ $8.68
10+ $8.58
15+ $8.47
20+ $8.37
30+ $8.27
40+ $7.75
50+ $7.65
60+ $7.54
75+ $7.44
100+ $7.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Outside Diameter:
21mm
Length:
30mm
Technical
Inside Diameter dr 12mm Tol + 0 to - 6µm
Outside Diameter D 21mm Tol + 0 to - 12µm
Length L 30mm Tol + 0 to - 200µm
W 1.3mm
D1 20mm
Eccentricity 8µm
Dynamic load C 27 kgf
Static load C<sub>o</sub> 50 kgf
Weight 31.5 g
B 23mm Tol + 0 to - 200&micro;m
Number of ball rows 4/5 (This is subject to change due to differences from manufacturer to manufacturer)
Tolerances dr & D Apply to closed type only
