SKU: LM.12.UU.OP.EU

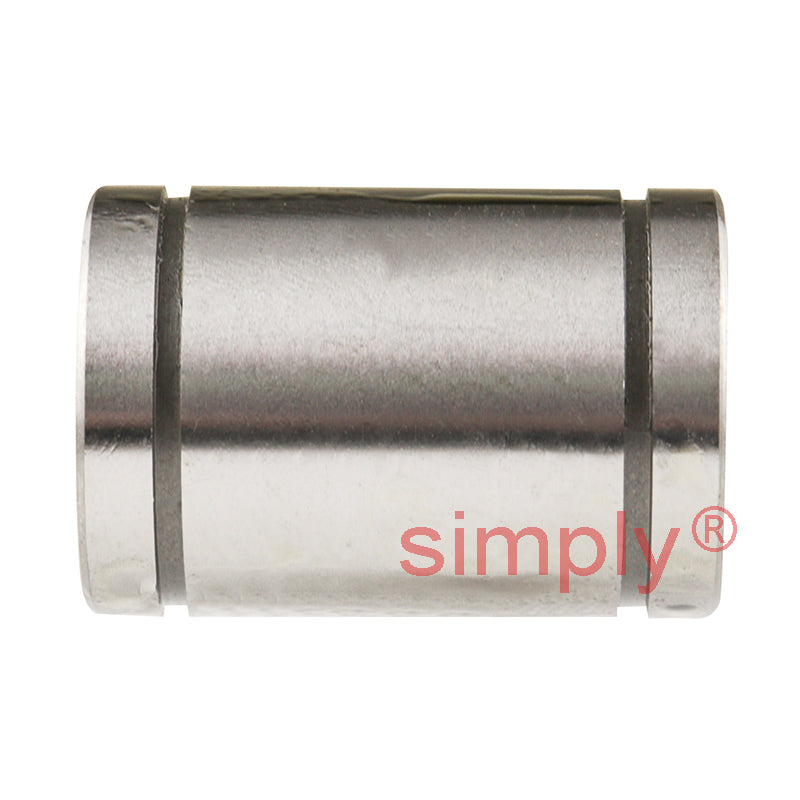

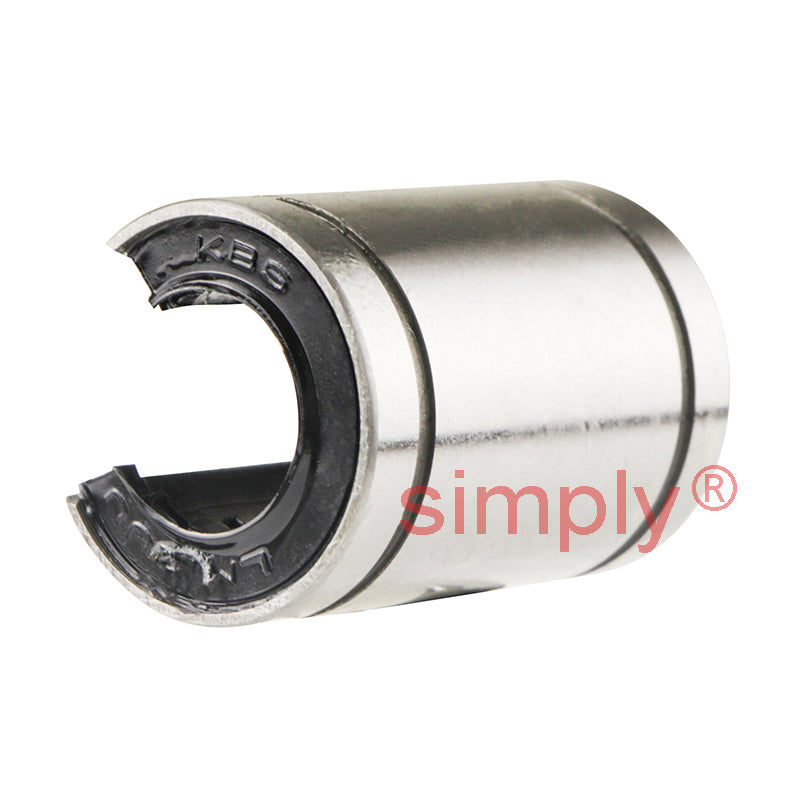

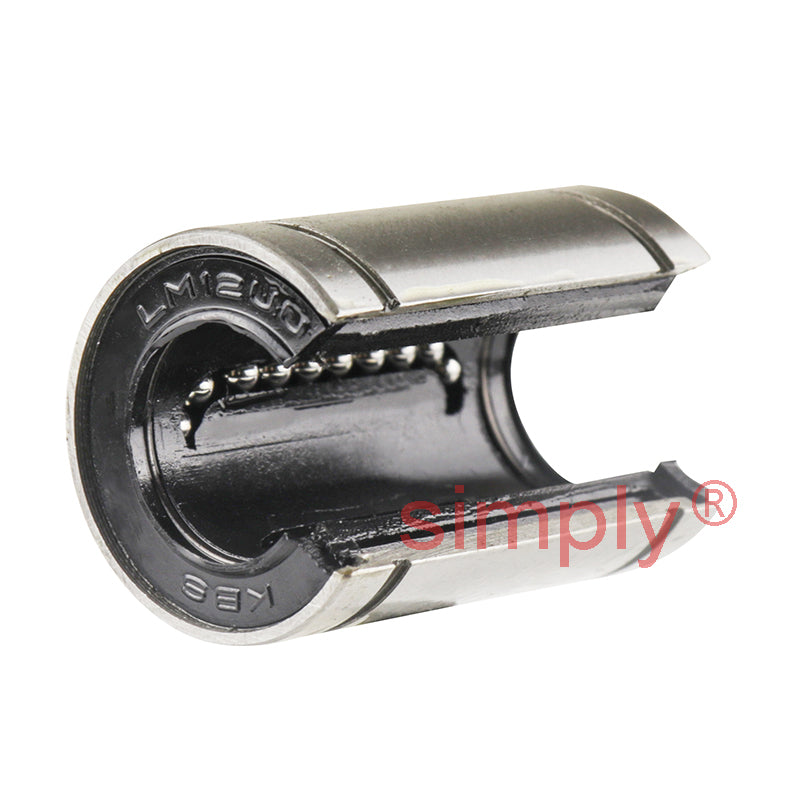

LM12UUOP Open Linear Ball Bushing with Rubber Seals 12x21x30mm

LM12UUOP Open Linear Ball Bushing with Rubber Seals 12x21x30mm
$14.64 ex VAT
$14.64 ex VAT
Sale Sold out

Equivalent to: SM12GUUOP

In stock

Price Break
3+ $9.81
5+ $9.26
10+ $9.15
15+ $9.04
20+ $8.93
30+ $8.82
40+ $8.27
50+ $8.16
60+ $8.05
75+ $7.93
100+ $7.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Outside Diameter:
21mm
Length:
30mm
Technical
Inside Diameter dr 12mm Tol + 0 to - 6µm
Outside Diameter D 21mm Tol + 0 to - 12µm
Length L 30mm Tol + 0 to - 200µm
W 1.3mm
D1 20mm
h1 7.5mm
Angle 80? degrees
Eccentricity 8µm
Dynamic load C 27 kgf
Static load C<sub>o</sub> 50 kgf
Weight 31.5 g
B 23mm Tol + 0 to - 200&micro;m
Number of ball rows 3
