SKU: LM.13.UU.AJ.EU

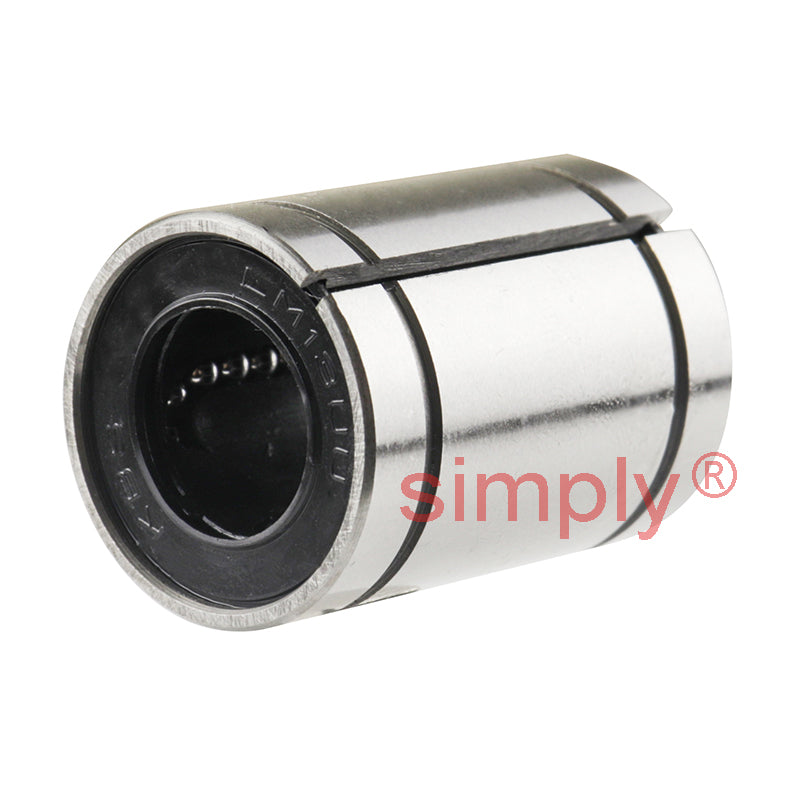

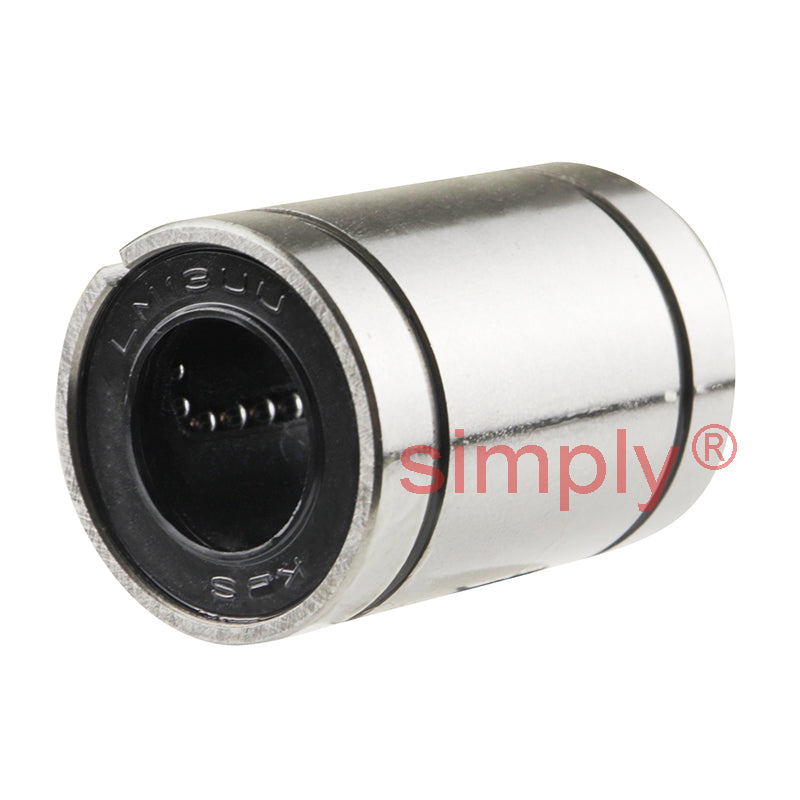

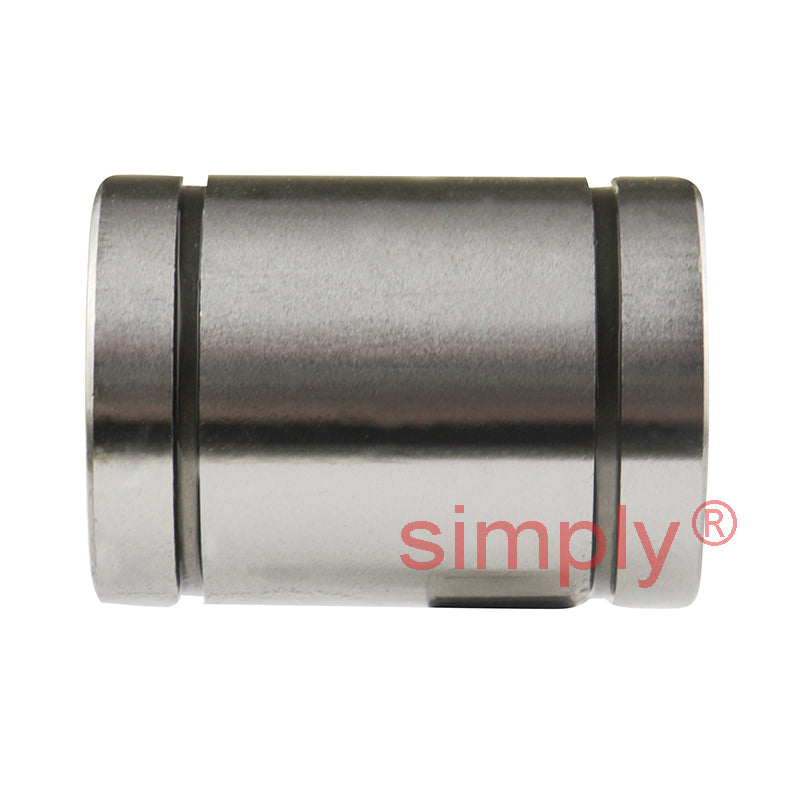

LM13UUAJ Adjustable Linear Ball Bushing with Rubber Seals 13x23x32mm

LM13UUAJ Adjustable Linear Ball Bushing with Rubber Seals 13x23x32mm
$14.22 ex VAT
$14.22 ex VAT
Sale Sold out

Equivalent to: SM13GUUAJ LBD13UUAJ LB13NTYDD N13VUUADJ L13ADJUU

In stock

Price Break
3+ $9.52
5+ $8.99
10+ $8.88
15+ $8.77
20+ $8.67
30+ $8.56
40+ $8.02
50+ $7.92
60+ $7.81
75+ $7.70
100+ $7.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
13mm
Outside Diameter:
23mm
Length:
32mm
Technical
Inside Diameter dr 13mm Tol + 0 to - 6µm
Outside Diameter D 23mm Tol + 0 to - 12µm
Length L 32mm Tol + 0 to - 200µm
W 1.3mm
D1 22mm
h 1.5mm
Eccentricity 8µm
Dynamic load C 30 kgf
Static load C<sub>o</sub> 52 kgf
Weight 43 g
B 23mm Tol + 0 to - 200&micro;m
Number of ball rows 4
