SKU: LM.13.UU.EU

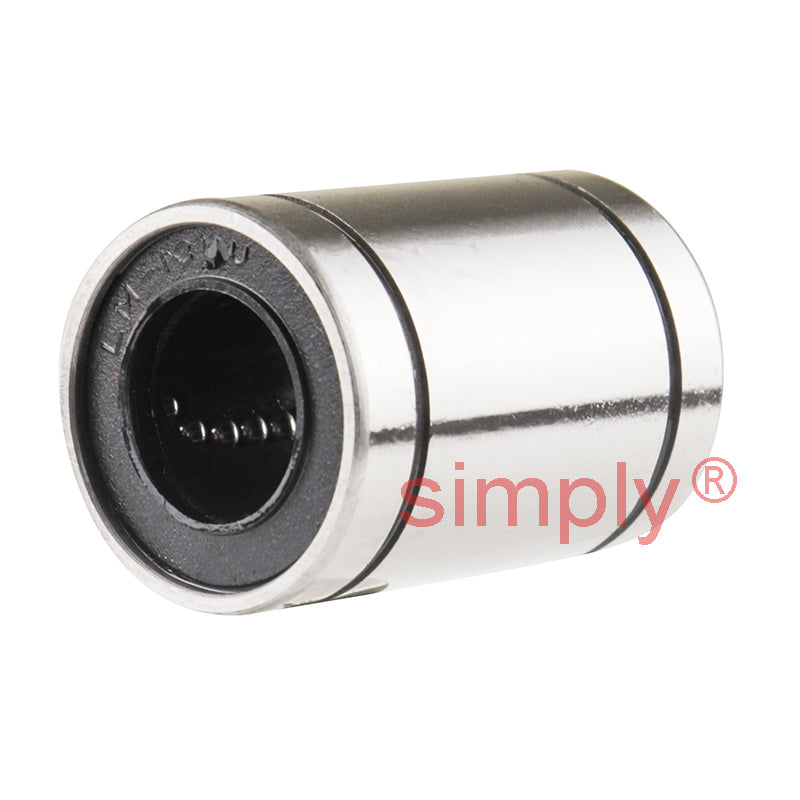

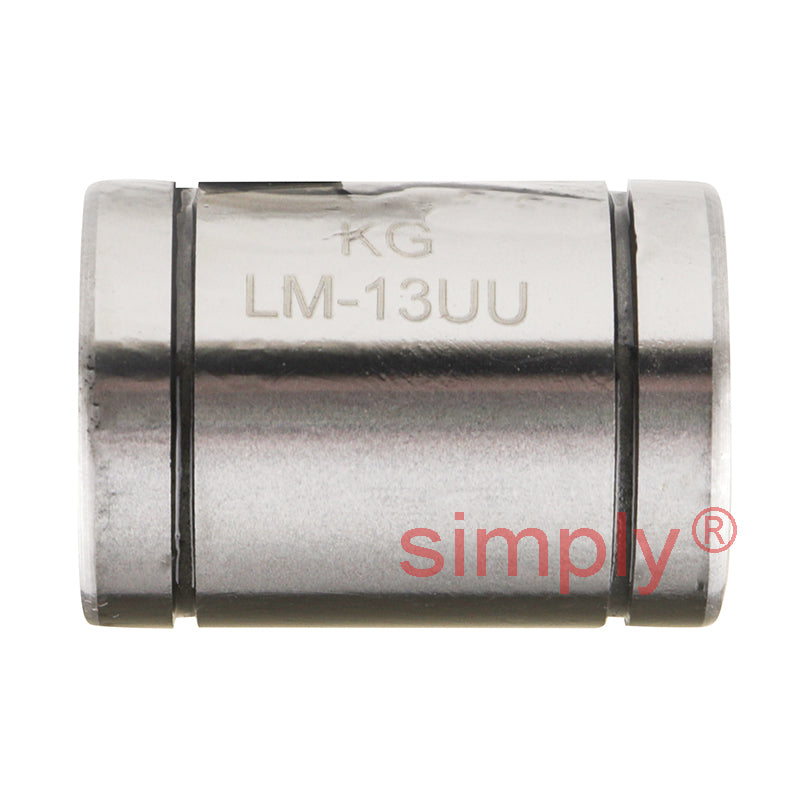

LM13UU Closed Linear Ball Bushing with Rubber Seals 13x23x32mm

LM13UU Closed Linear Ball Bushing with Rubber Seals 13x23x32mm
$13.59 ex VAT
$13.59 ex VAT
Sale Sold out

Equivalent to: SM13GUU LBD13UU LB13NYDD N13VUU L13UU TB13UU KLM13LL SDM13YUU

In stock

Price Break
3+ $9.10
5+ $8.59
10+ $8.49
15+ $8.39
20+ $8.28
30+ $8.18
40+ $7.67
50+ $7.57
60+ $7.47
75+ $7.36
100+ $7.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
13mm
Outside Diameter:
23mm
Length:
32mm
Technical
Inside Diameter dr 13mm Tol + 0 to - 6µm
Outside Diameter D 23mm Tol + 0 to - 12µm
Length L 32mm Tol + 0 to - 200µm
W 1.3mm
D1 22mm
Eccentricity 8µm
Dynamic load C 30 kgf
Static load C<sub>o</sub> 52 kgf
Weight 43 g
B 23mm Tol + 0 to - 200&micro;m
Number of ball rows 6
Tolerances dr & D Apply to closed type only
