SKU: LM.13.UU.MB

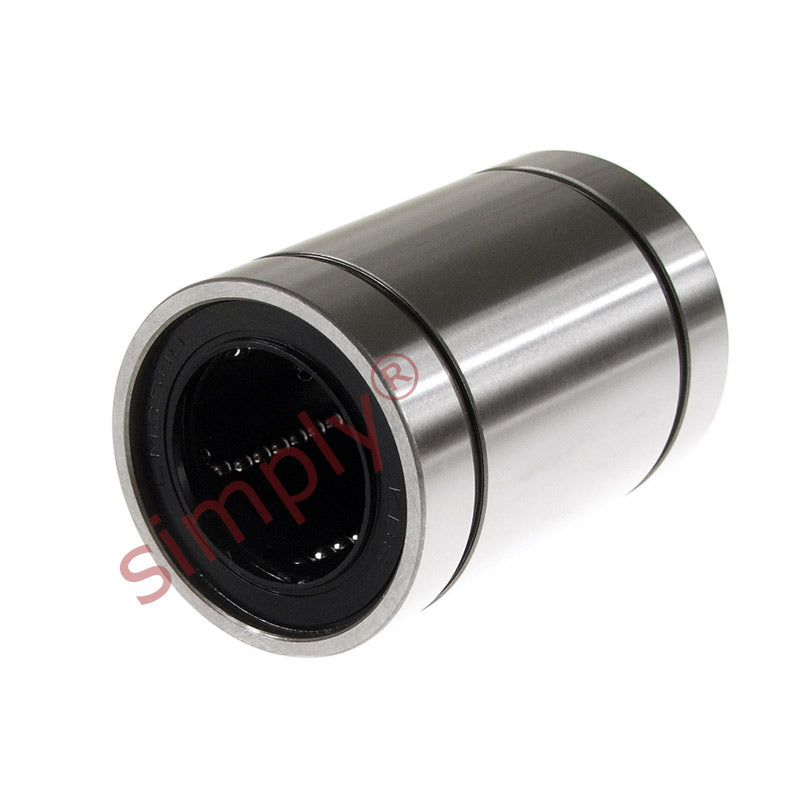

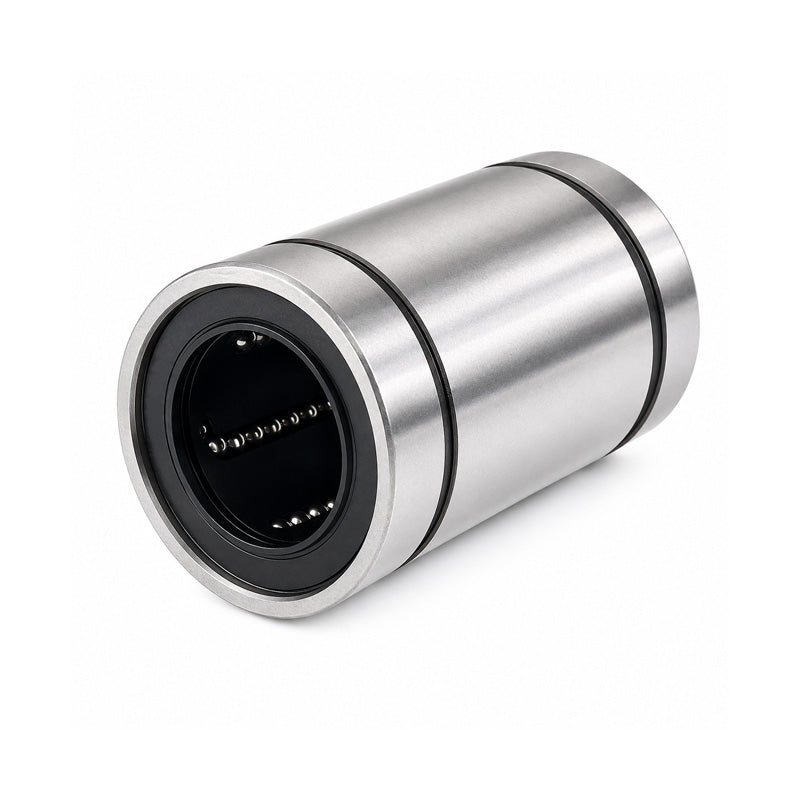

Major Branded LM13UU Closed Linear Ball Bushing with Rubber Seals 13x23x32mm

Name: Major Branded LM13UU Closed Linear Ball Bushing with Rubber Seals 13x23x32mm
Brand: Major Brand
SKU: LM.13.UU.MB
Price: 21.27 USD
Availability: InStock

$21.27 ex VAT

Sale Sold out

Equivalent to: SM13GUU LBD13UU LB13NYDD N13VUU L13UU TB13UU KLM13LL SDM13YUU

In stock

Price Break

3+ $14.25

5+ $13.45

10+ $13.29

15+ $13.13

20+ $12.97

30+ $12.81

40+ $12.01

50+ $11.85

60+ $11.69

75+ $11.53

100+ $11.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 13mm
Outside Diameter:: 23mm
Length:: 32mm

Technical

Inside Diameter dr	13mm Tol + 0 to - 6µm
Outside Diameter D	23mm Tol + 0 to - 12µm
Length L	32mm Tol + 0 to - 200µm
W	1.3mm
D1	22mm
Eccentricity	8µm
Dynamic load C	30 kgf
Static load C<sub>o</sub>	52 kgf
Weight	43 g
B	23mm Tol + 0 to - 200µm
Number of ball rows	6
Tolerances dr & D	Apply to closed type only
