SKU: LM.16.UU.OP.EU

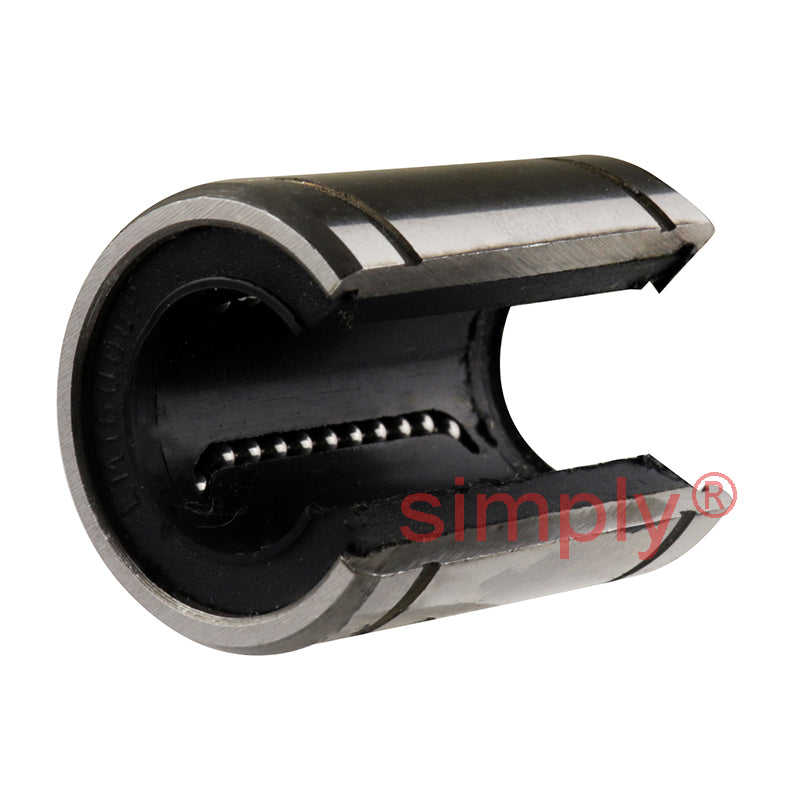

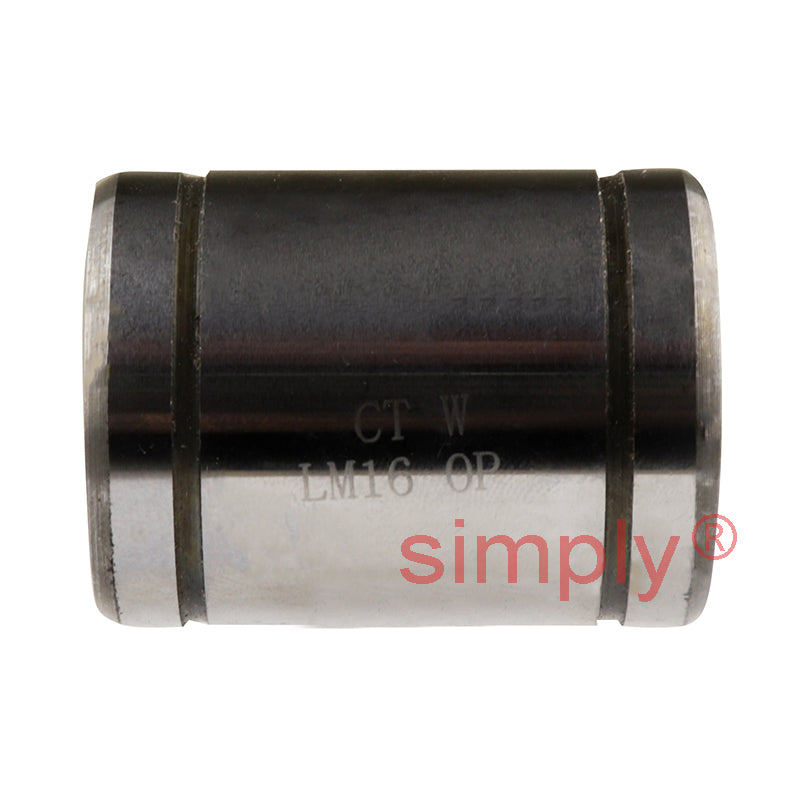

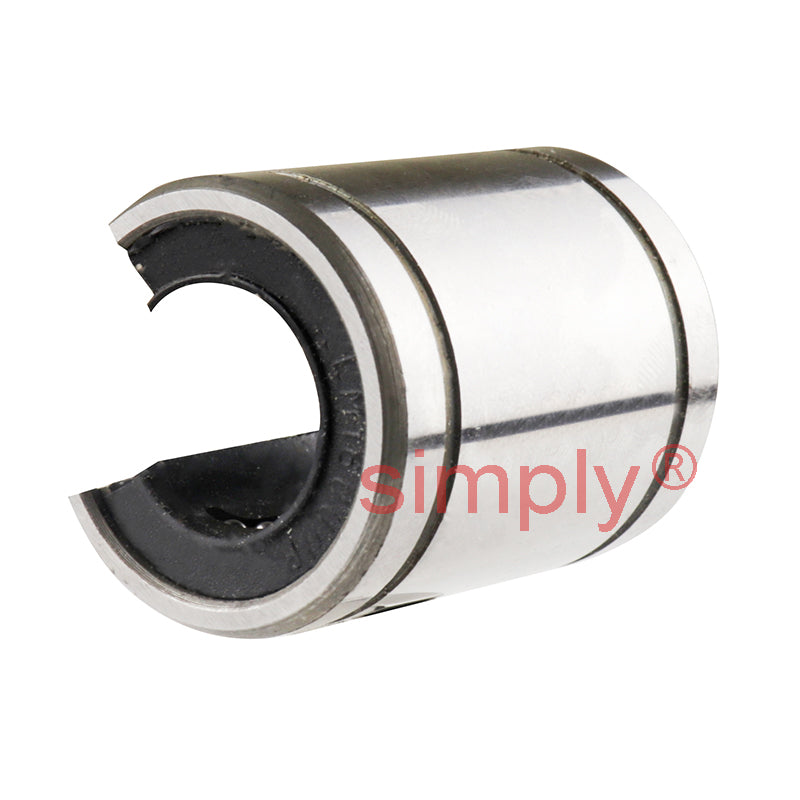

LM16UUOP Open Linear Ball Bushing with Rubber Seals 16x28x37mm

LM16UUOP Open Linear Ball Bushing with Rubber Seals 16x28x37mm
$22.91 ex VAT
$22.91 ex VAT
Sale Sold out

Equivalent to: SM16GUUOP N16VUUOP L16OPUU TB16OPUU

In stock

Price Break
3+ $15.35
5+ $14.48
10+ $14.31
15+ $14.14
20+ $13.97
30+ $13.79
40+ $12.93
50+ $12.76
60+ $12.59
75+ $12.42
100+ $12.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
16mm
Outside Diameter:
28mm
Length:
37mm
Technical
Inside Diameter dr 16mm Tol + 0 to - 6µm
Outside Diameter D 28mm Tol + 0 to - 12µm
Length L 37mm Tol + 0 to - 200µm
W 1.6mm
D1 27mm
h1 11mm
Angle 80? degrees
Eccentricity 8µm
Dynamic load C 49 kgf
Static load C<sub>o</sub> 78 kgf
Weight 69 g
B 26.5mm Tol + 0 to - 200&micro;m
Number of ball rows 3
