SKU: LM.20.UU.AJ.EU

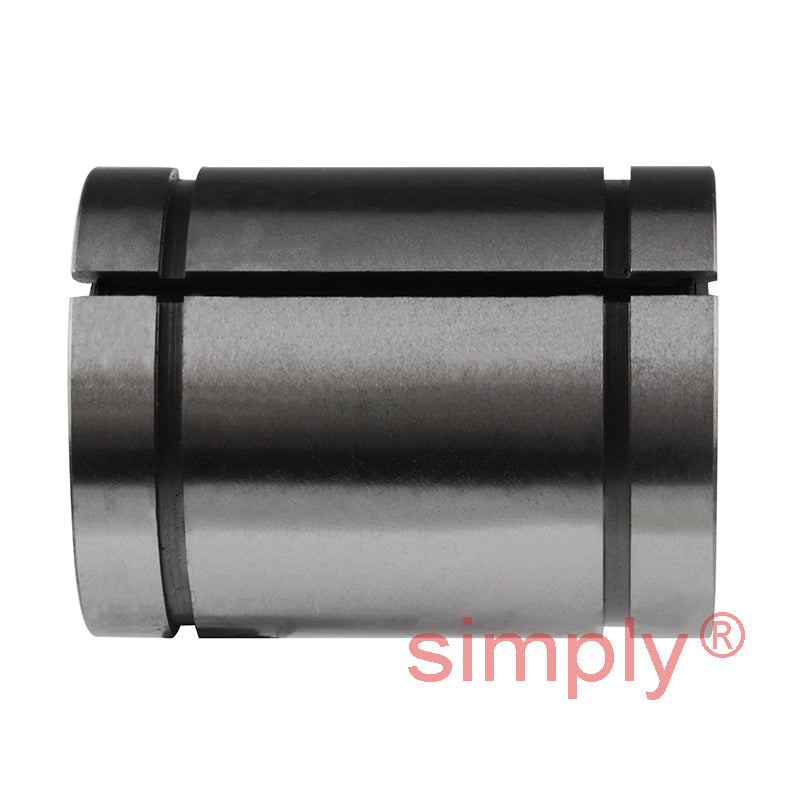

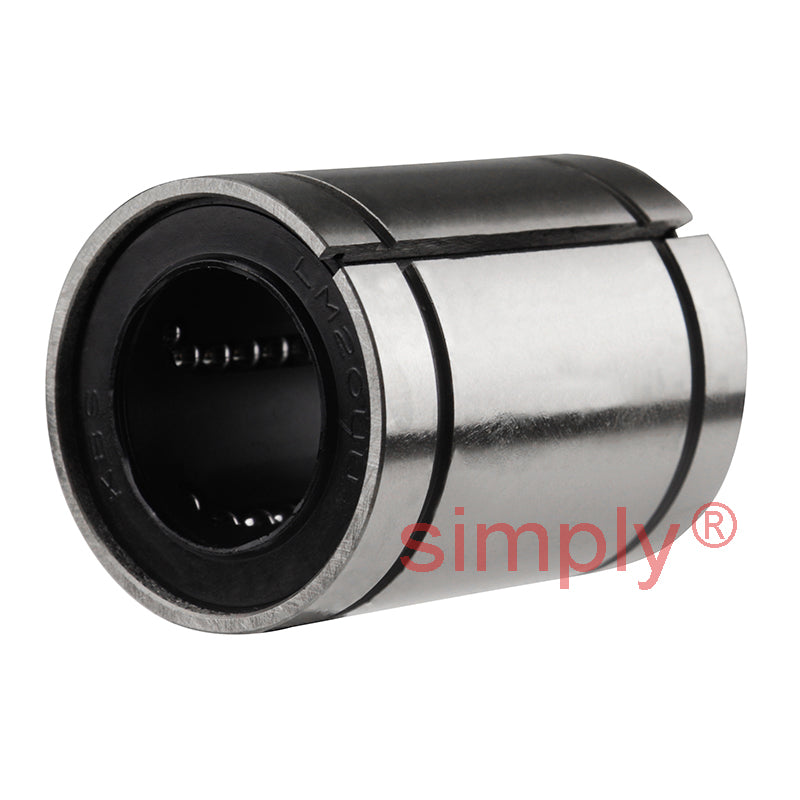

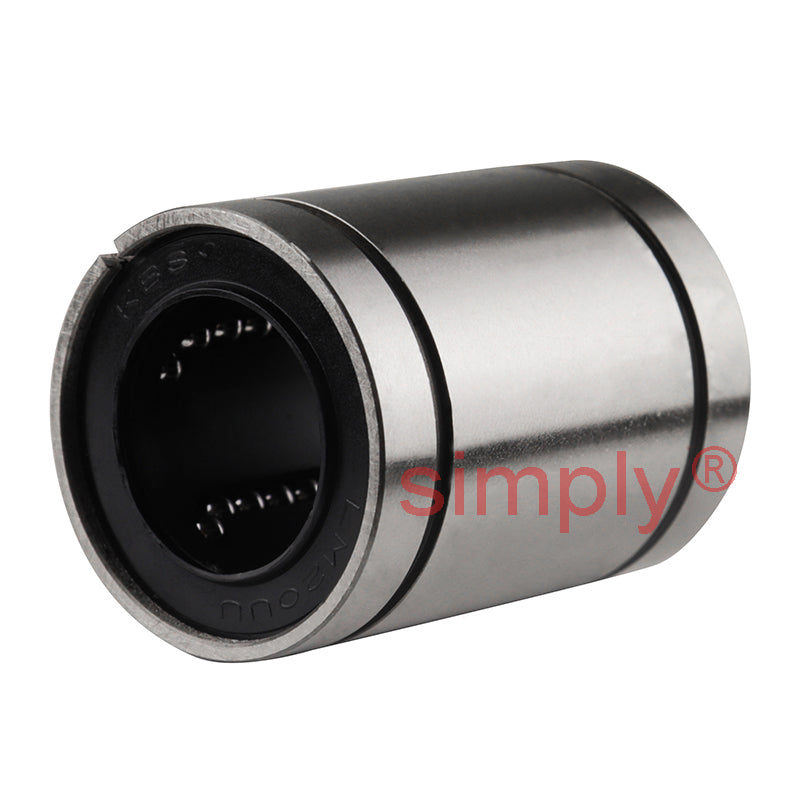

LM20UUAJ Adjustable Linear Ball Bushing with Rubber Seals 20x32x42mm

LM20UUAJ Adjustable Linear Ball Bushing with Rubber Seals 20x32x42mm
$23.16 ex VAT
$23.16 ex VAT
Sale Sold out

Equivalent to: SM20GUUAJ LBD20UUAJ LB20NTYDD N20VUUADJ L20ADJUU TB20ADJUU

In stock

Price Break
3+ $15.51
5+ $14.64
10+ $14.46
15+ $14.29
20+ $14.11
30+ $13.94
40+ $13.07
50+ $12.89
60+ $12.72
75+ $12.55
100+ $12.20

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Outside Diameter:
32mm
Length:
42mm
Technical
Inside Diameter dr 20mm Tol + 0 to - 7µm
Outside Diameter D 32mm Tol + 0 to - 14µm
Length L 42mm Tol + 0 to - 300µm
W 1.6mm
D1 30.5mm
h 1.5mm
Eccentricity 10µm
Dynamic load C 60 kgf
Static load C<sub>o</sub> 105 kgf
Weight 87 g
B 30.5mm Tol + 0 to - 300&micro;m
Number of ball rows 6
