SKU: LM.20.UU.EU

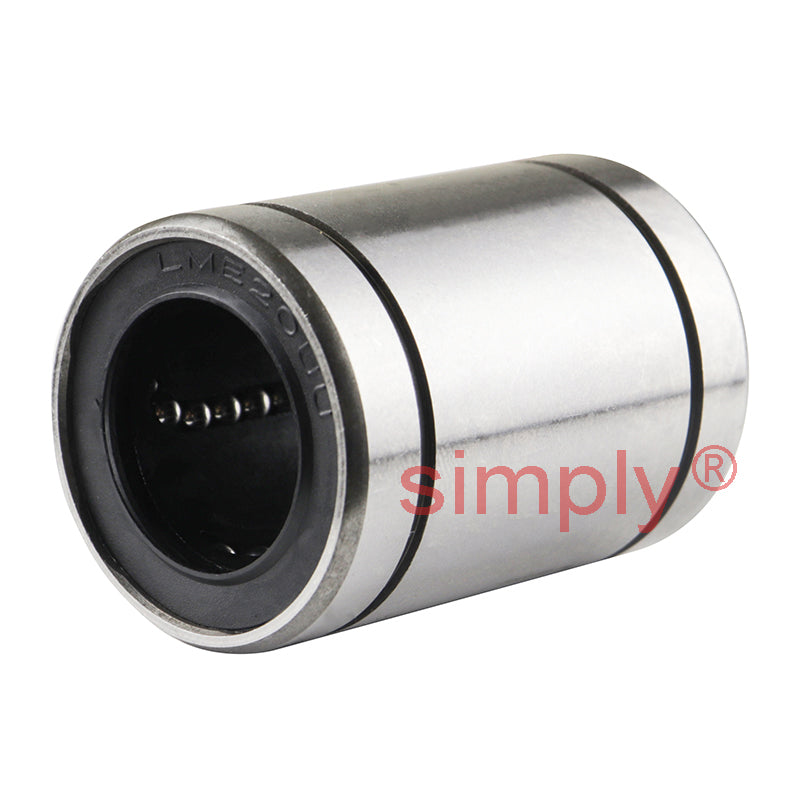

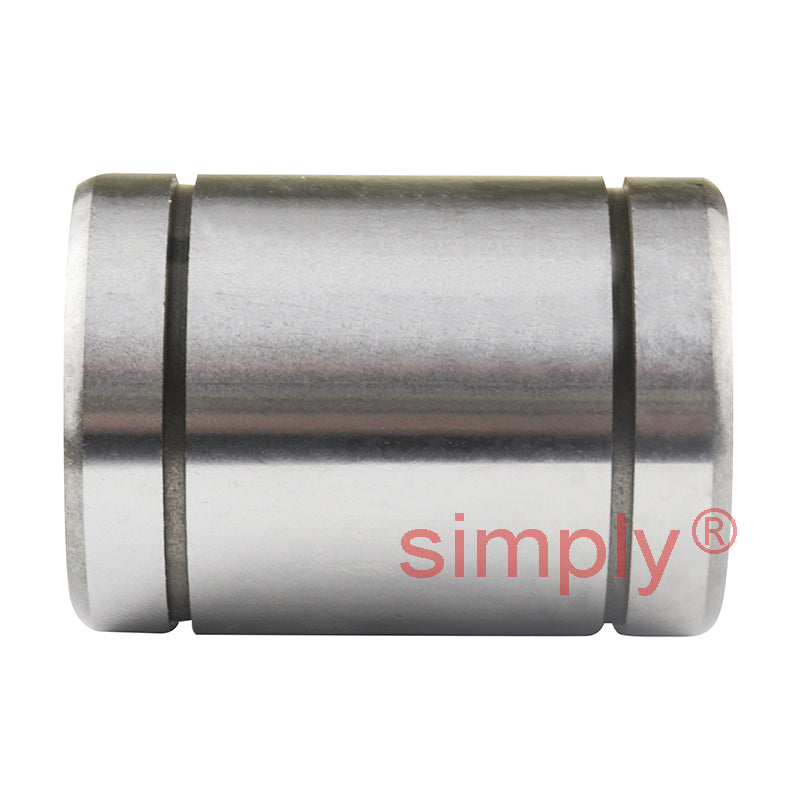

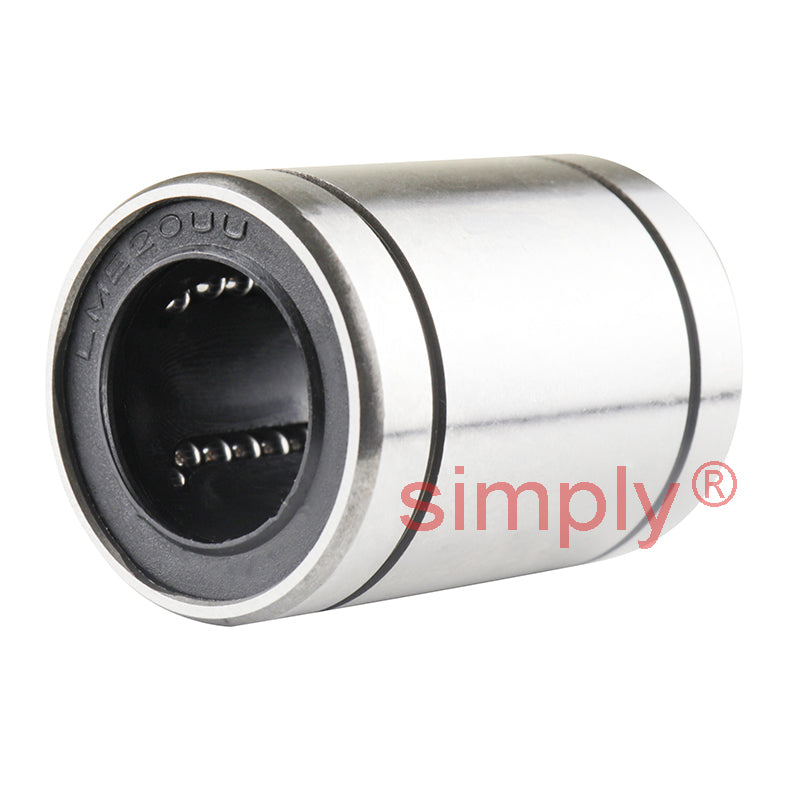

LM20UU Closed Linear Ball Bushing with Rubber Seals 20x32x42mm

LM20UU Closed Linear Ball Bushing with Rubber Seals 20x32x42mm
$16.86 ex VAT
$16.86 ex VAT
Sale Sold out

Equivalent to: SM20GUU LBD20UU LB20NYDD N20VUU L20UU TB20UU KLM20LL SDM20YUU

In stock

Price Break
3+ $11.30
5+ $10.66
10+ $10.53
15+ $10.41
20+ $10.28
30+ $10.15
40+ $9.52
50+ $9.39
60+ $9.26
75+ $9.14
100+ $8.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Outside Diameter:
32mm
Length:
42mm
Technical
Inside Diameter dr 20mm Tol + 0 to - 7µm
Outside Diameter D 32mm Tol + 0 to - 14µm
Length L 42mm Tol + 0 to - 300µm
W 1.6mm
D1 30.5mm
Eccentricity 10µm
Dynamic load C 60 kgf
Static load C<sub>o</sub> 105 kgf
Weight 87 g
B 30.5mm Tol + 0 to - 300&micro;m
Number of ball rows 6
Tolerances dr & D Apply to closed type only
