SKU: LM.20.UU.OP.EU

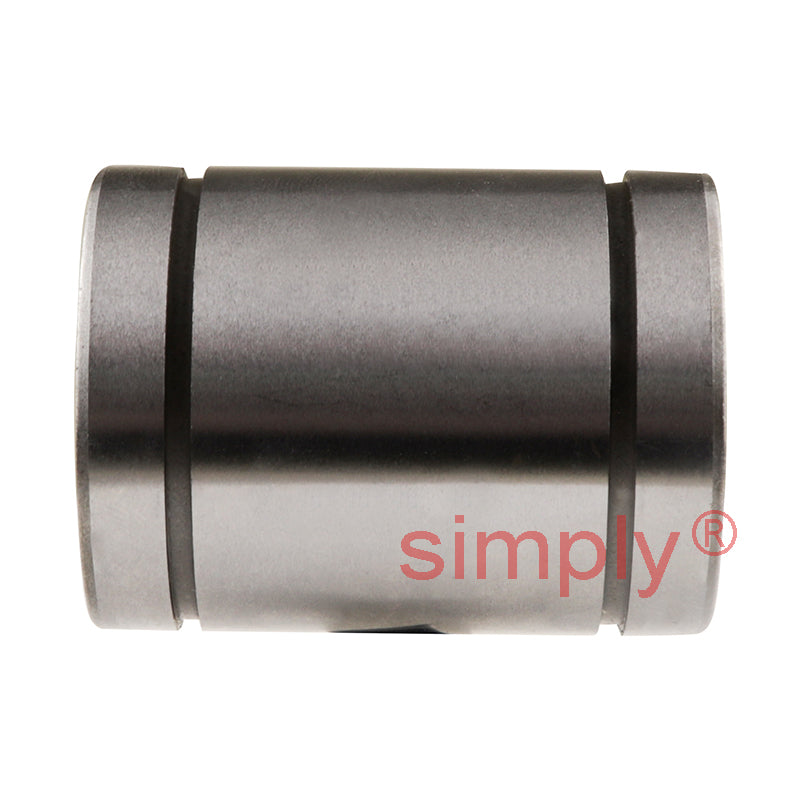

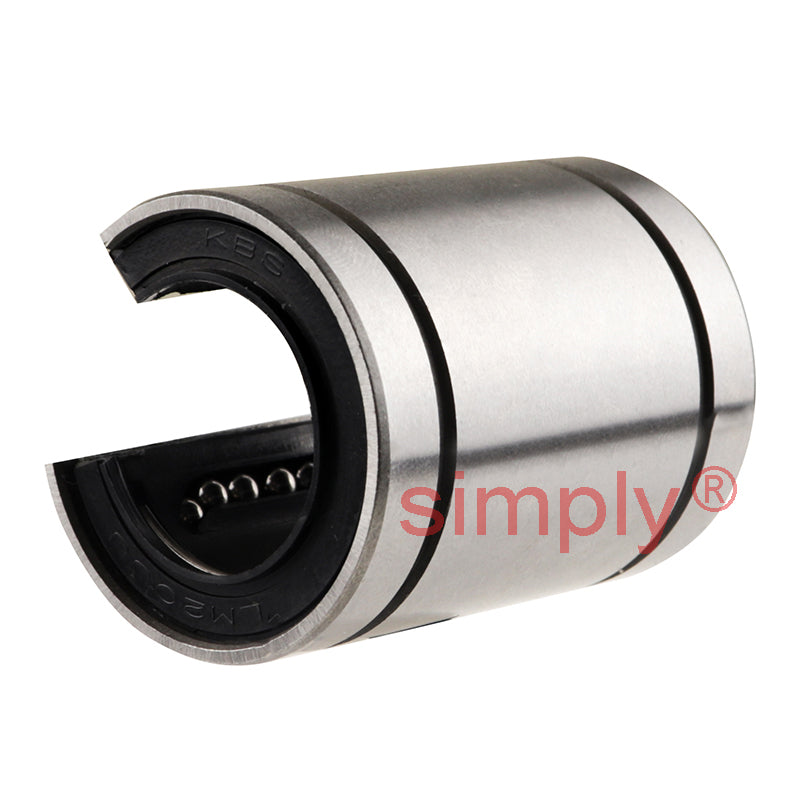

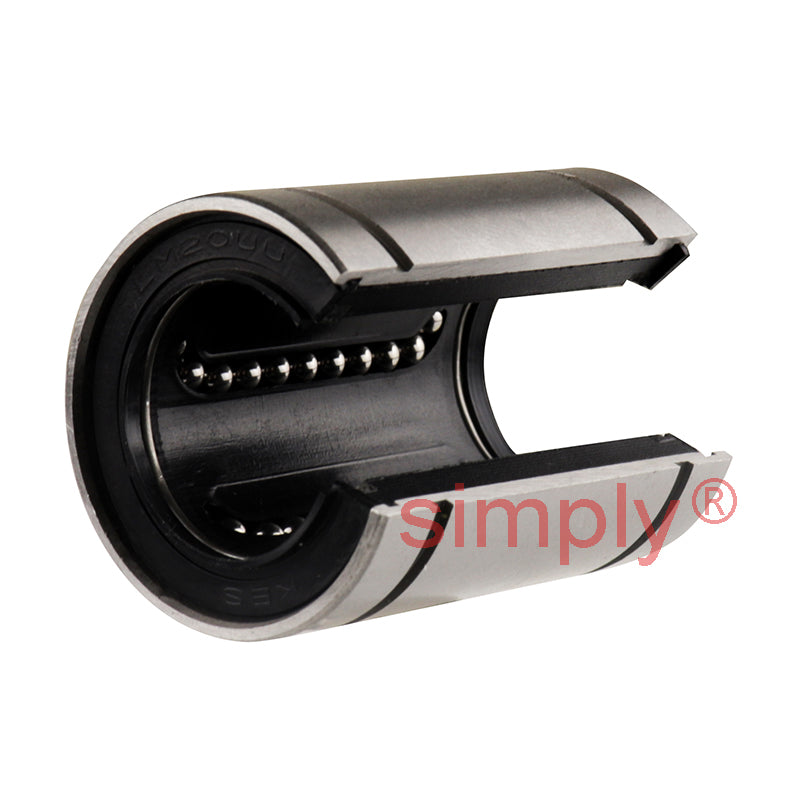

LM20UUOP Open Linear Ball Bushing with Rubber Seals 20x32x42mm

LM20UUOP Open Linear Ball Bushing with Rubber Seals 20x32x42mm
$23.41 ex VAT
$23.41 ex VAT
Sale Sold out

Equivalent to: SM20GUUOP N20VUUOP L20OPUU TB20OPUU

In stock

Price Break
3+ $15.68
5+ $14.80
10+ $14.62
15+ $14.45
20+ $14.27
30+ $14.09
40+ $13.21
50+ $13.04
60+ $12.86
75+ $12.68
100+ $12.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Outside Diameter:
32mm
Length:
42mm
Technical
Inside Diameter dr 20mm Tol + 0 to - 7µm
Outside Diameter D 32mm Tol + 0 to - 14µm
Length L 42mm Tol + 0 to - 300µm
W 1.6mm
D1 30.5mm
h1 11mm
Angle 60? degrees
Eccentricity 10µm
Dynamic load C 60 kgf
Static load C<sub>o</sub> 105 kgf
Weight 87 g
B 30.5mm Tol + 0 to - 300&micro;m
Number of ball rows 4
