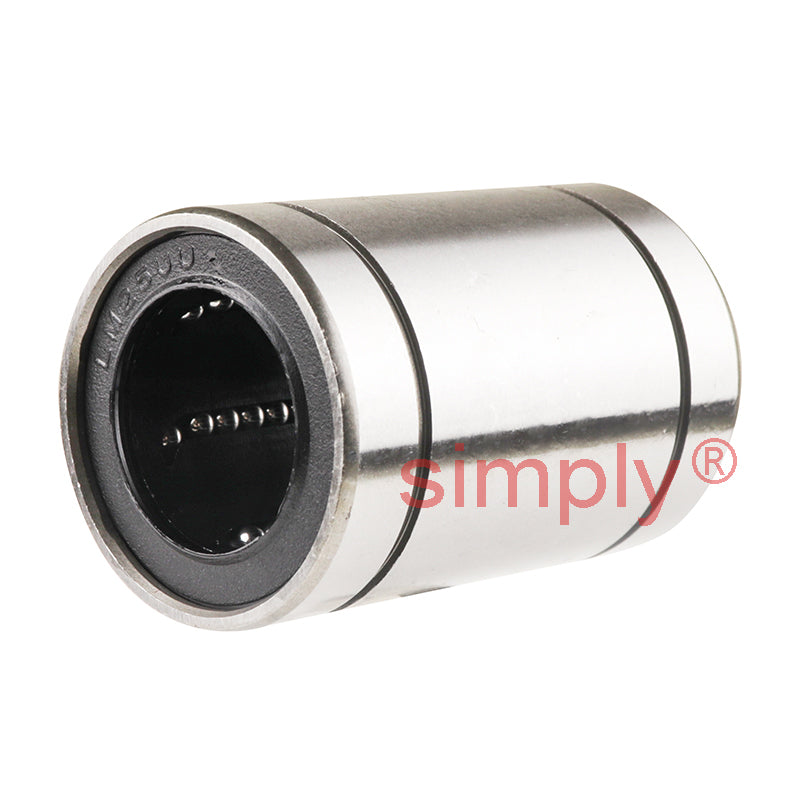

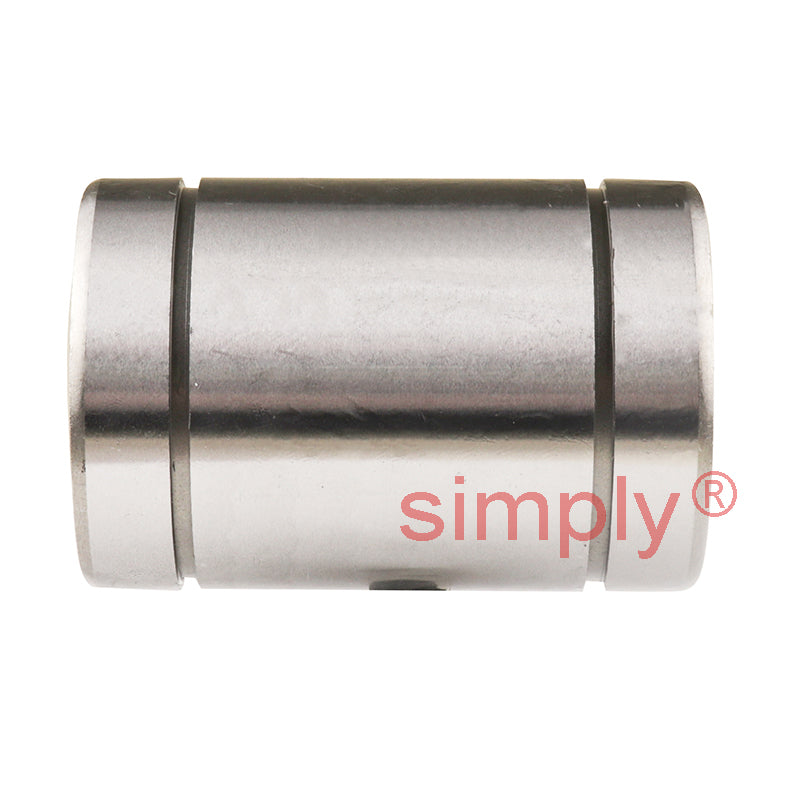

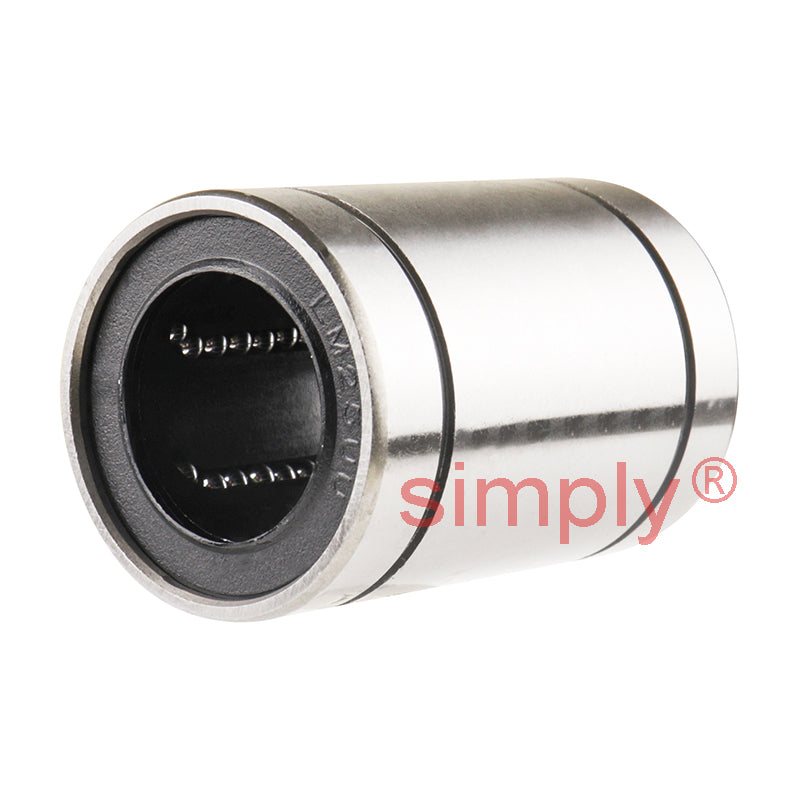

• LM25UU Closed Linear Ball Bushing with Rubber Seals 25x40x59mm
  • LM25UU Closed Linear Ball Bushing with Rubber Seals 25x40x59mm
  • LM25UU Closed Linear Ball Bushing with Rubber Seals 25x40x59mm
1 3

SKU: LM.25.UU.EU

LM25UU Closed Linear Ball Bushing with Rubber Seals 25x40x59mm

LM25UU Closed Linear Ball Bushing with Rubber Seals 25x40x59mm
$20.33 ex VAT
$20.33 ex VAT
Sale Sold out

Equivalent to: SM25GUU LBD25UU LB25NYDD N25BVUU L25BUU TB25UU KLM25LL SDM25YUU

In stock

Price Break
3+ $13.62
5+ $12.86
10+ $12.70
15+ $12.55
20+ $12.40
30+ $12.24
40+ $11.48
50+ $11.33
60+ $11.17
75+ $11.02
100+ $10.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
40mm
Length:
59mm
Technical
Inside Diameter dr 25mm Tol + 0 to - 7µm
Outside Diameter D 40mm Tol + 0 to - 14µm
Length L 59mm Tol + 0 to - 300µm
W 1.85mm
D1 38mm
Eccentricity 10µm
Dynamic load C 105 kgf
Static load C<sub>o</sub> 185 kgf
Weight 220 g
B 41mm Tol + 0 to - 300&micro;m
Number of ball rows 6
Tolerances dr & D Apply to closed type only
