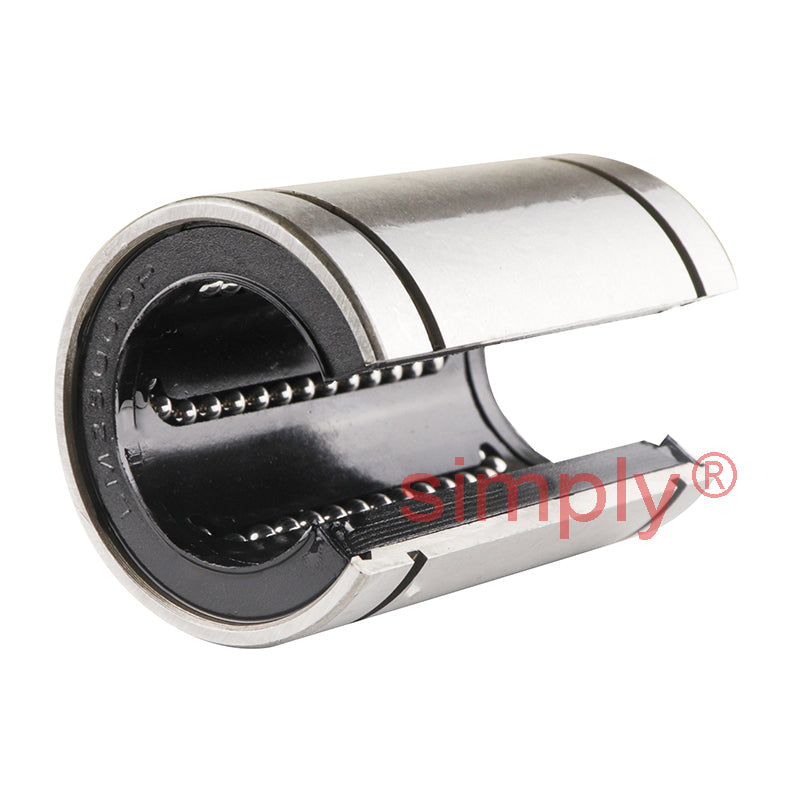

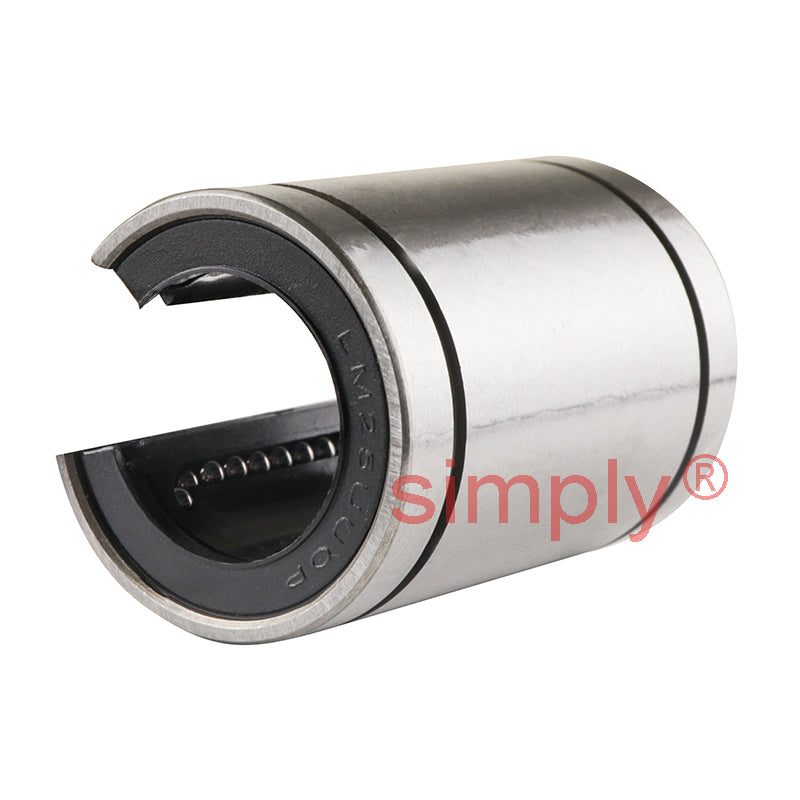

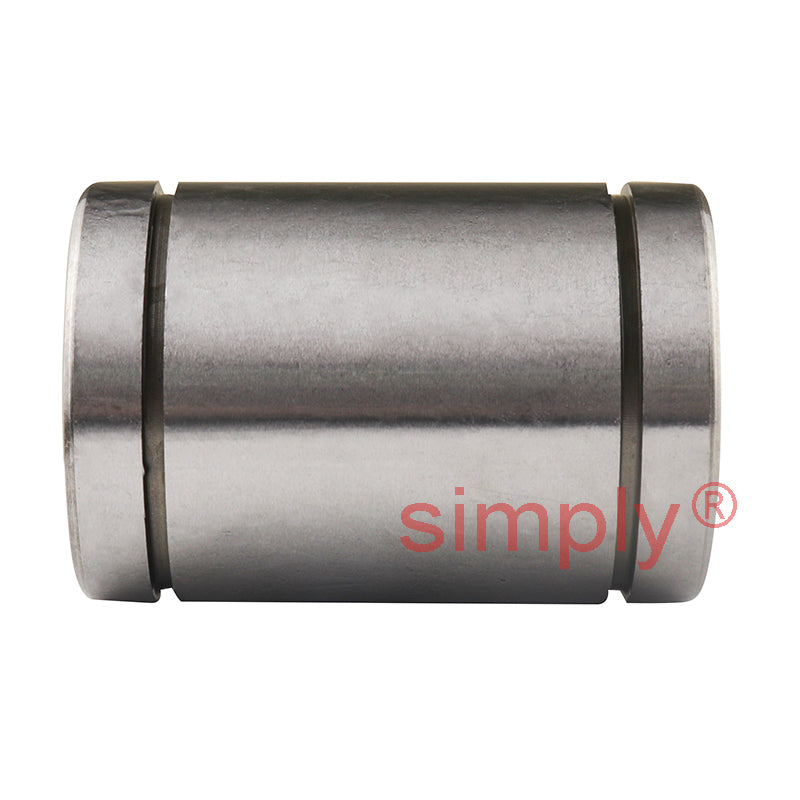

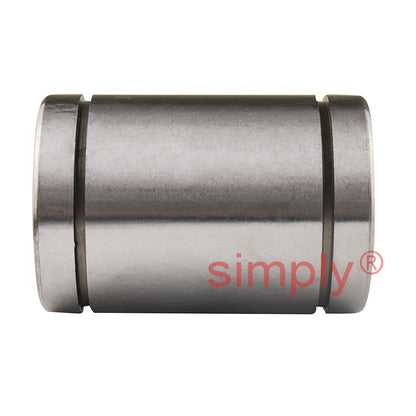

• LM25UUOP Open Linear Ball Bushing with Rubber Seals 25x40x59mm
  • LM25UUOP Open Linear Ball Bushing with Rubber Seals 25x40x59mm
  • LM25UUOP Open Linear Ball Bushing with Rubber Seals 25x40x59mm
1 3

SKU: LM.25.UU.OP.EU

LM25UUOP Open Linear Ball Bushing with Rubber Seals 25x40x59mm

LM25UUOP Open Linear Ball Bushing with Rubber Seals 25x40x59mm
$20.28 ex VAT
$20.28 ex VAT
Sale Sold out

Equivalent to: SM25GUUOP N25BVUUOP L25BOPUU TB25OPUU

In stock

Price Break
3+ $13.58
5+ $12.82
10+ $12.67
15+ $12.51
20+ $12.36
30+ $12.21
40+ $11.45
50+ $11.29
60+ $11.14
75+ $10.99
100+ $10.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
40mm
Length:
59mm
Technical
Inside Diameter dr 25mm Tol + 0 to - 7µm
Outside Diameter D 40mm Tol + 0 to - 14µm
Length L 59mm Tol + 0 to - 300µm
W 1.85mm
D1 38mm
h1 13mm
Angle 50? degrees
Eccentricity 10µm
Dynamic load C 105 kgf
Static load C<sub>o</sub> 185 kgf
Weight 220 g
B 41mm Tol + 0 to - 300&micro;m
Number of ball rows 5
