SKU: LM.30.UU.AJ.EU

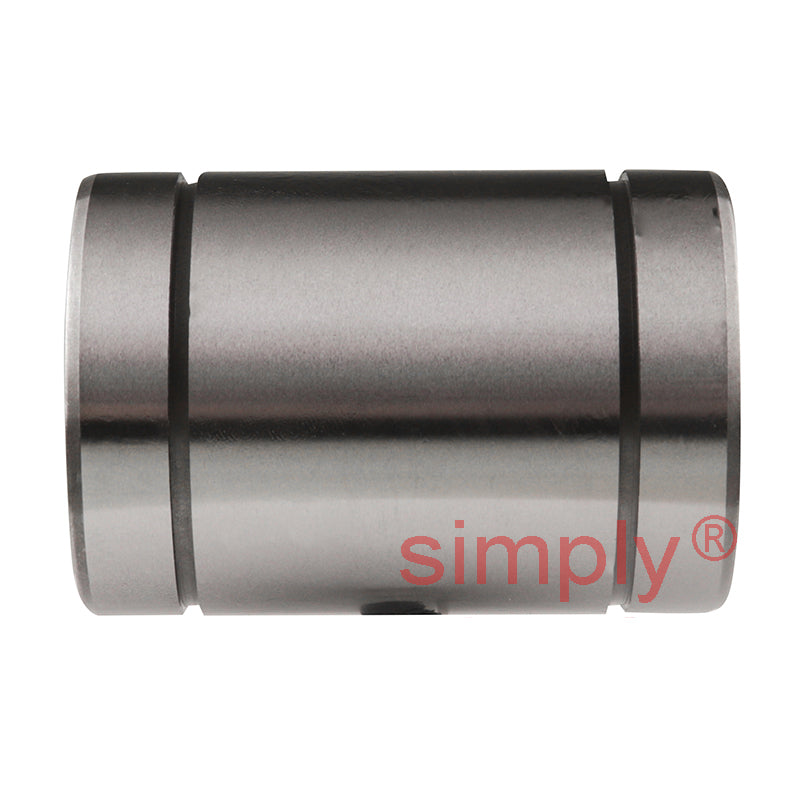

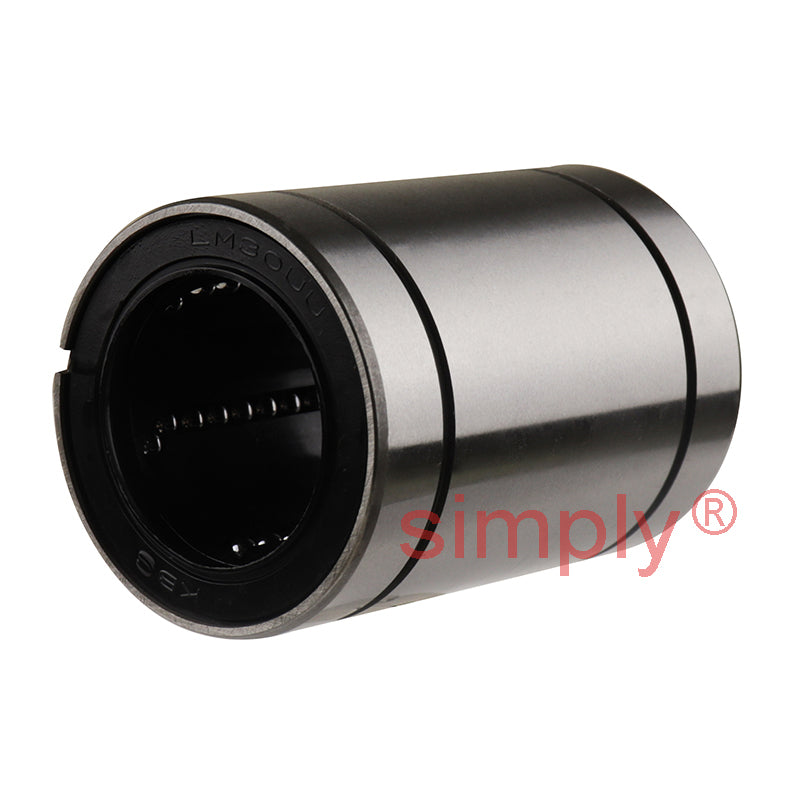

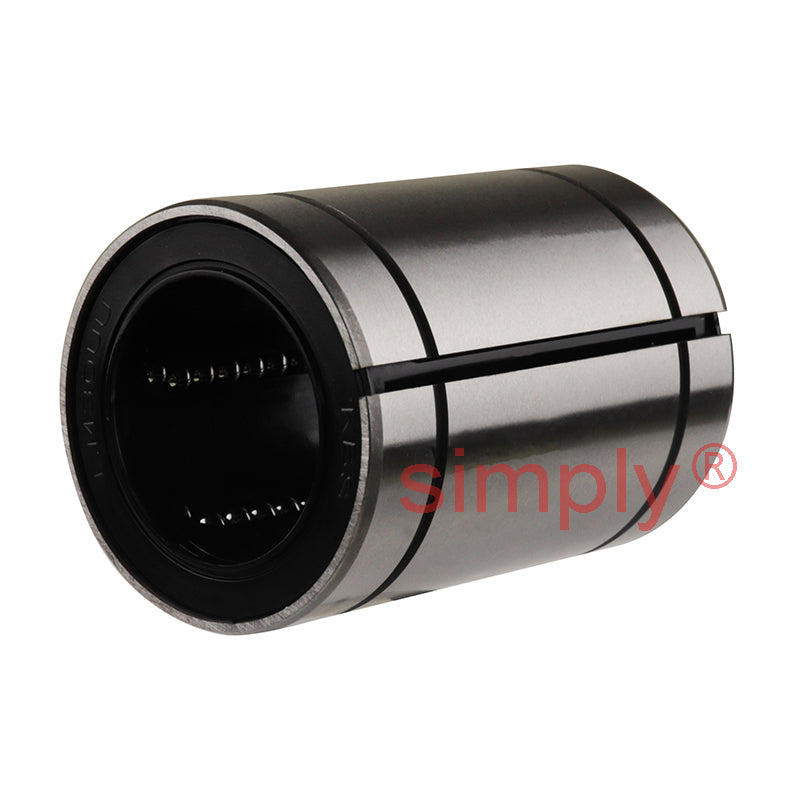

LM30UUAJ Adjustable Linear Ball Bushing with Rubber Seals 30x45x64mm

LM30UUAJ Adjustable Linear Ball Bushing with Rubber Seals 30x45x64mm
$25.03 ex VAT
$25.03 ex VAT
Sale Sold out

Equivalent to: SM30GUUAJ LBD30UUAJ LB30NTYDD N30VUUADJ L30AADJUU TB30ADJUU

In stock

Price Break
3+ $16.77
5+ $15.82
10+ $15.64
15+ $15.45
20+ $15.26
30+ $15.07
40+ $14.13
50+ $13.94
60+ $13.75
75+ $13.56
100+ $13.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
45mm
Length:
64mm
Technical
Inside Diameter dr 30mm Tol + 0 to - 7µm
Outside Diameter D 45mm Tol + 0 to - 14µm
Length L 64mm Tol + 0 to - 300µm
W 1.85mm
D1 43mm
h 2.5mm
Eccentricity 10µm
Dynamic load C 140 kgf
Static load C<sub>o</sub> 255 kgf
Weight 250 g
B 44.5mm Tol + 0 to - 300&micro;m
Number of ball rows 6
