SKU: LM.30.UU.EU

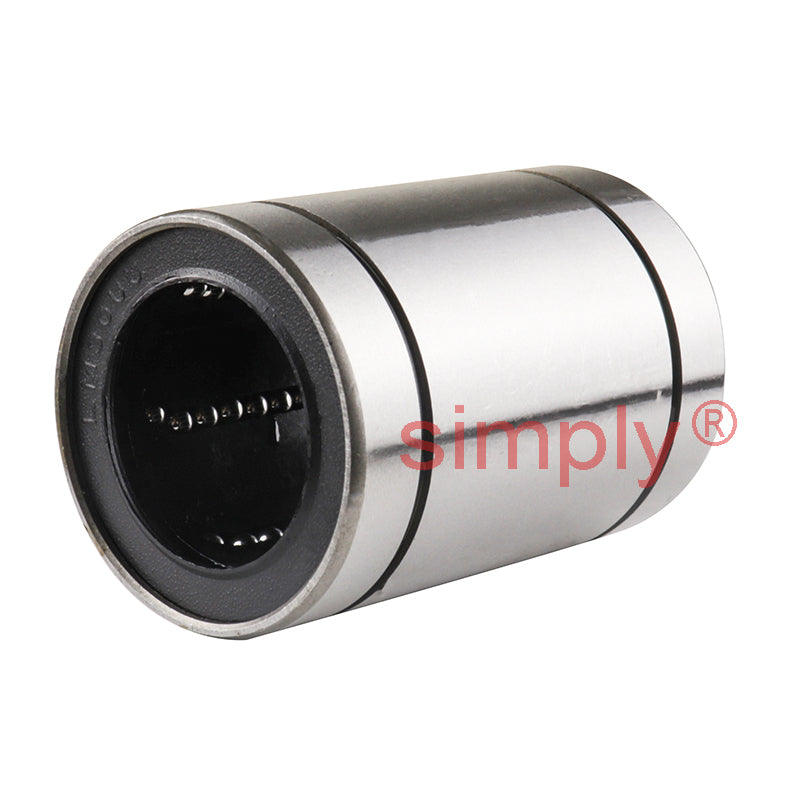

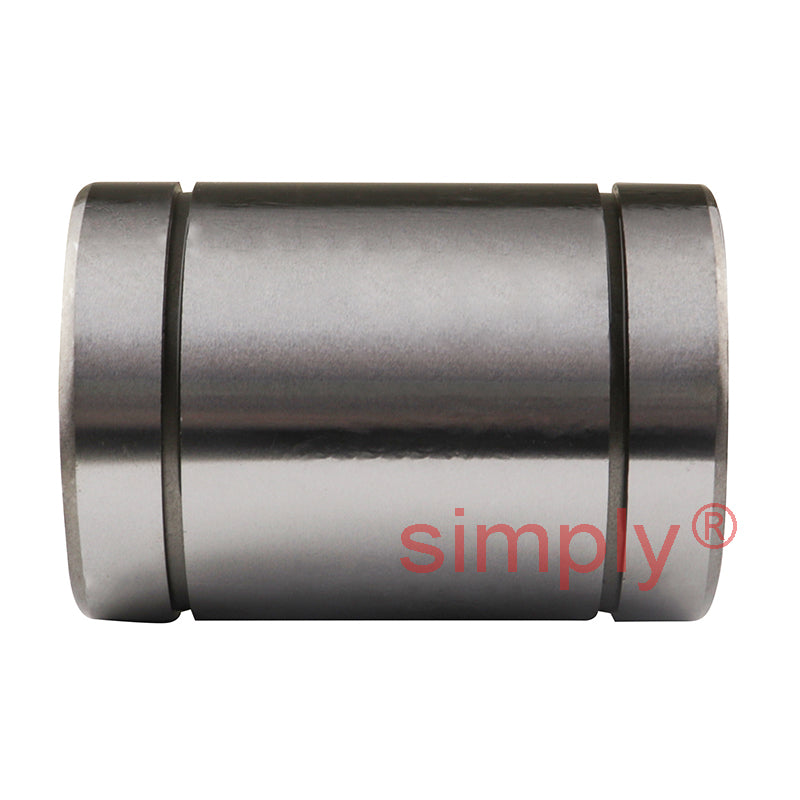

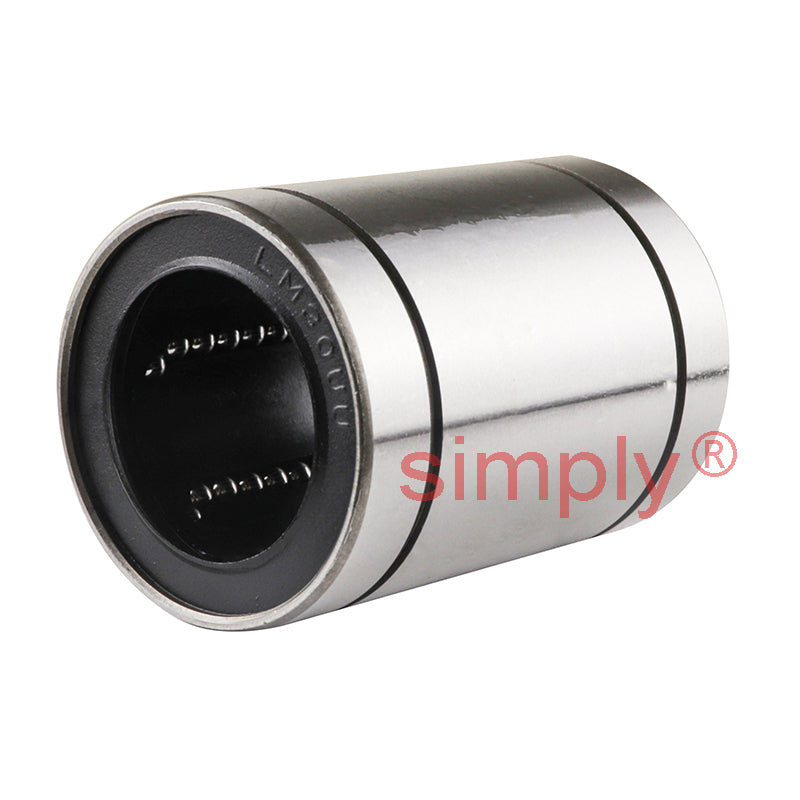

LM30UU Closed Linear Ball Bushing with Rubber Seals 30x45x64mm

LM30UU Closed Linear Ball Bushing with Rubber Seals 30x45x64mm
$24.74 ex VAT
$24.74 ex VAT
Sale Sold out

Equivalent to: SM30GUU LBD30UU LB30NYDD N30VUU L30AUU TB30UU KLM30LL SDM30YUU

In stock

Price Break
3+ $16.58
5+ $15.64
10+ $15.46
15+ $15.27
20+ $15.09
30+ $14.90
40+ $13.97
50+ $13.78
60+ $13.60
75+ $13.41
100+ $13.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
45mm
Length:
64mm
Technical
Inside Diameter dr 30mm Tol + 0 to - 7µm
Outside Diameter D 45mm Tol + 0 to - 14µm
Length L 64mm Tol + 0 to - 300µm
W 1.85mm
D1 43mm
Eccentricity 10µm
Dynamic load C 140 kgf
Static load C<sub>o</sub> 255 kgf
Weight 250 g
B 44.5mm Tol + 0 to - 300&micro;m
Number of ball rows 6
Tolerances dr & D Apply to closed type only
