SKU: LM.30.UU.OP.EU

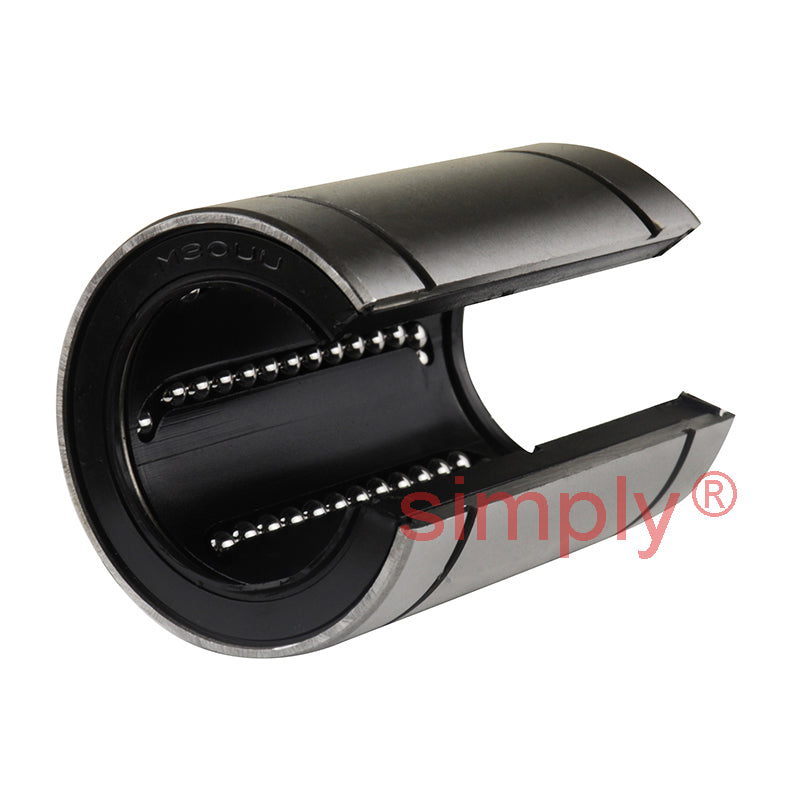

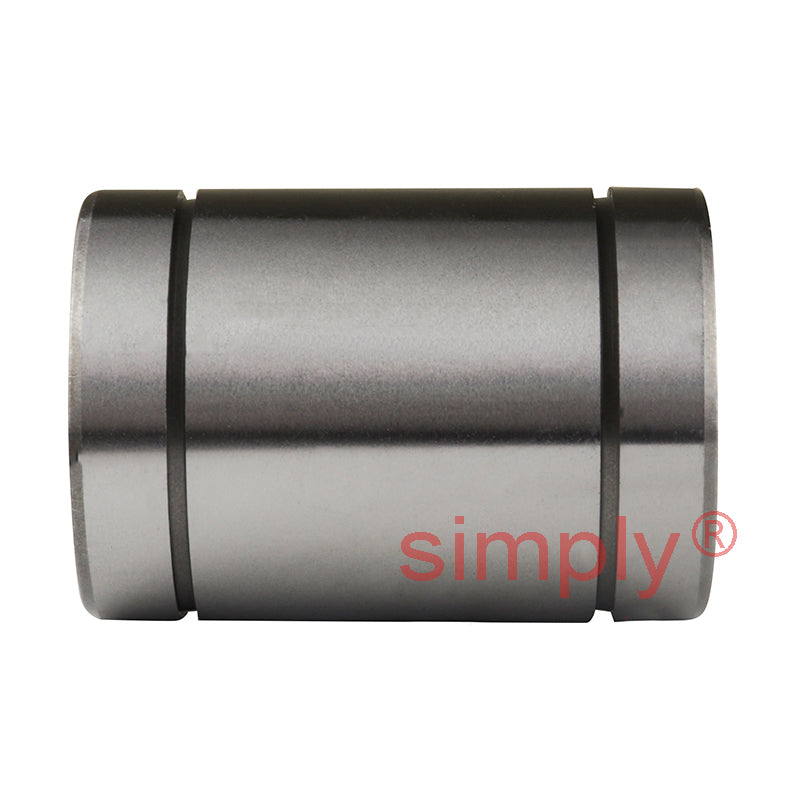

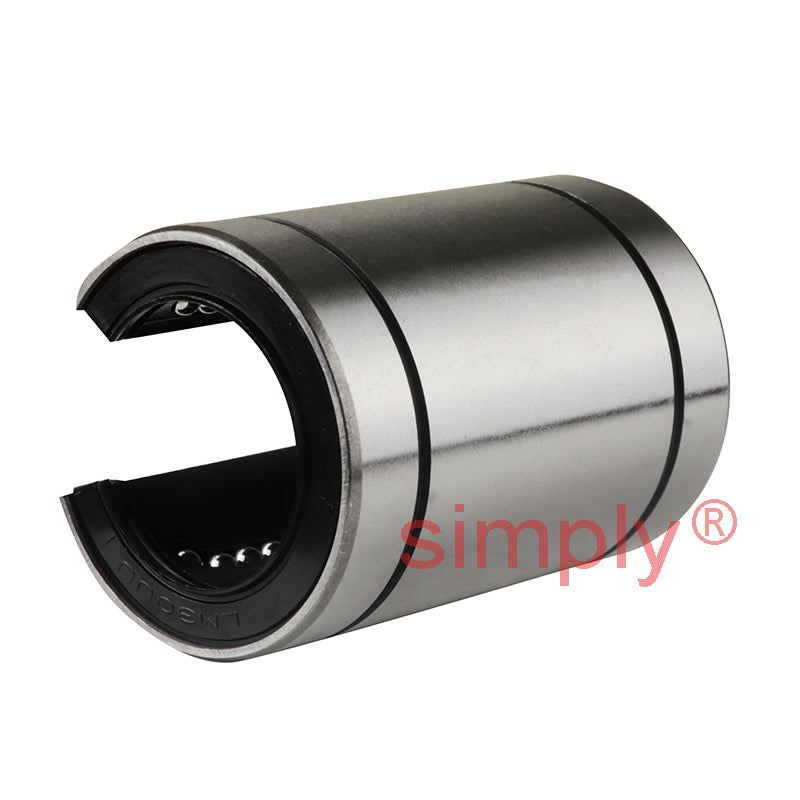

LM30UUOP Open Linear Ball Bushing with Rubber Seals 30x45x64mm

LM30UUOP Open Linear Ball Bushing with Rubber Seals 30x45x64mm
$28.10 ex VAT
$28.10 ex VAT
Sale Sold out

Equivalent to: SM30GUUOP N30VUUOP L30AOPUU TB30OPUU

In stock

Price Break
3+ $18.83
5+ $17.77
10+ $17.56
15+ $17.34
20+ $17.13
30+ $16.92
40+ $15.86
50+ $15.65
60+ $15.44
75+ $15.23
100+ $14.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
45mm
Length:
64mm
Technical
Inside Diameter dr 30mm Tol + 0 to - 7µm
Outside Diameter D 45mm Tol + 0 to - 14µm
Length L 64mm Tol + 0 to - 300µm
W 1.85mm
D1 43mm
h1 15mm
Angle 50? degrees
Eccentricity 10µm
Dynamic load C 140 kgf
Static load C<sub>o</sub> 255 kgf
Weight 250 g
B 44.5mm Tol + 0 to - 300&micro;m
Number of ball rows 5
