SKU: LM.40.UU.EU

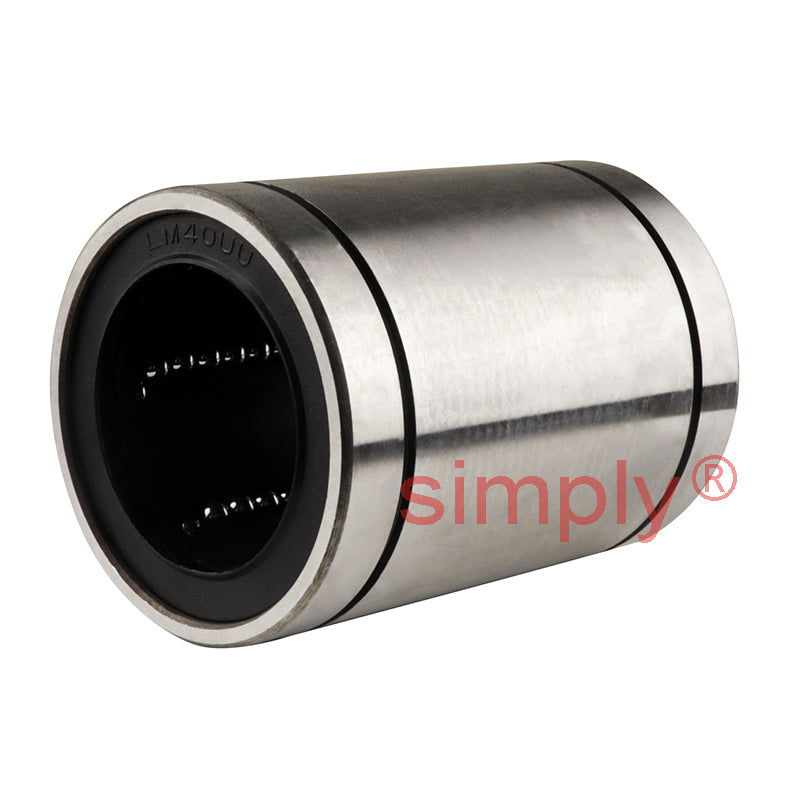

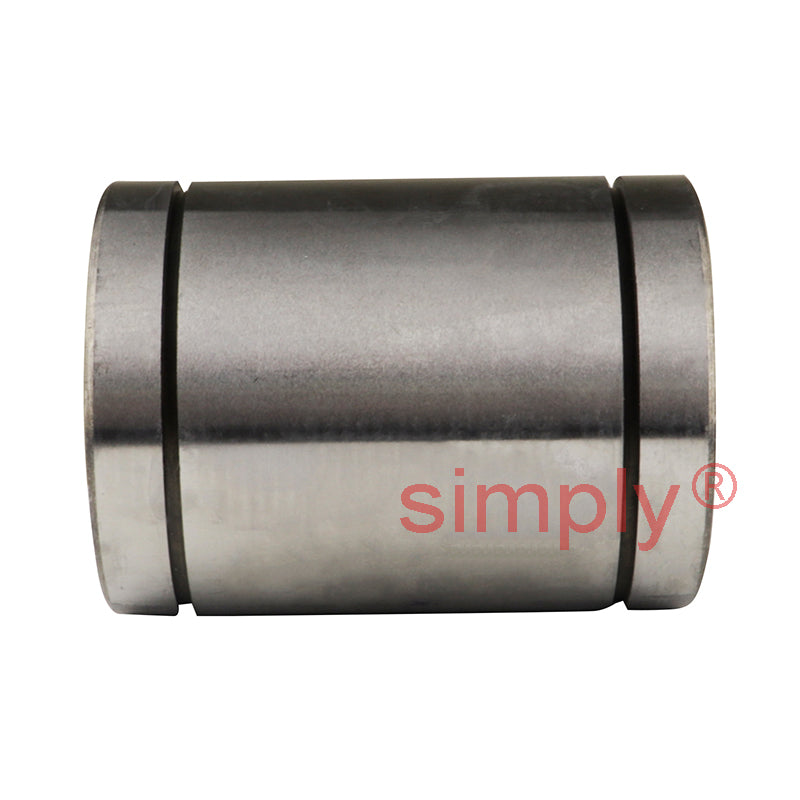

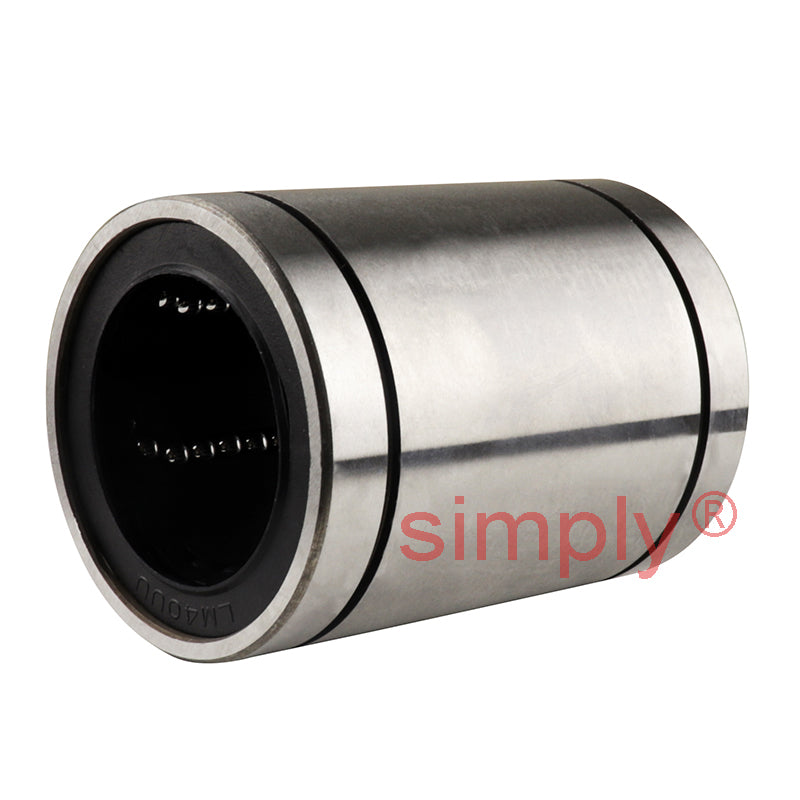

LM40UU Closed Linear Ball Bushing with Rubber Seals 40x60x80mm

LM40UU Closed Linear Ball Bushing with Rubber Seals 40x60x80mm
$42.68 ex VAT
$42.68 ex VAT
Sale Sold out

Equivalent to: SM40GUU LBD40UU LB40NYDD N40VUU L40UU TB40UU KLM40LL SDM40YUU

In stock

Price Break
3+ $28.59
5+ $26.98
10+ $26.66
15+ $26.34
20+ $26.02
30+ $25.70
40+ $24.09
50+ $23.77
60+ $23.45
75+ $23.13
100+ $22.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
60mm
Length:
80mm
Technical
Inside Diameter dr 40mm Tol + 0 to - 8µm
Outside Diameter D 60mm Tol + 0 to - 17µm
Length L 80mm Tol + 0 to - 300µm
W 2.1mm
D1 57mm
Eccentricity 12µm
Dynamic load C 235 kgf
Static load C<sub>o</sub> 450 kgf
Weight 585 g
B 60.5mm Tol + 0 to - 300&micro;m
Number of ball rows 6
Tolerances dr & D Apply to closed type only
