SKU: LM.6.UU.EU

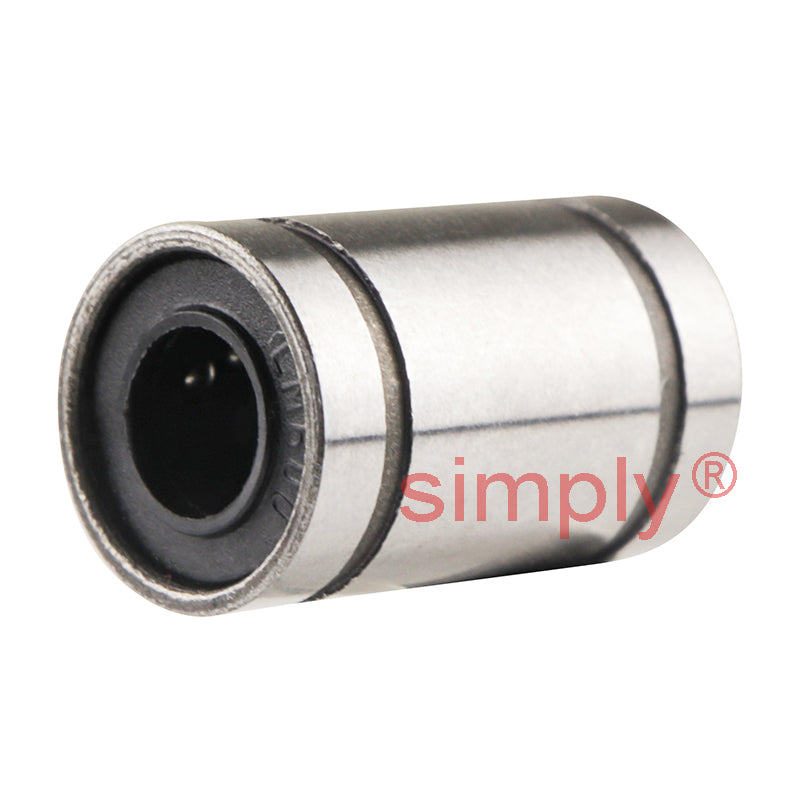

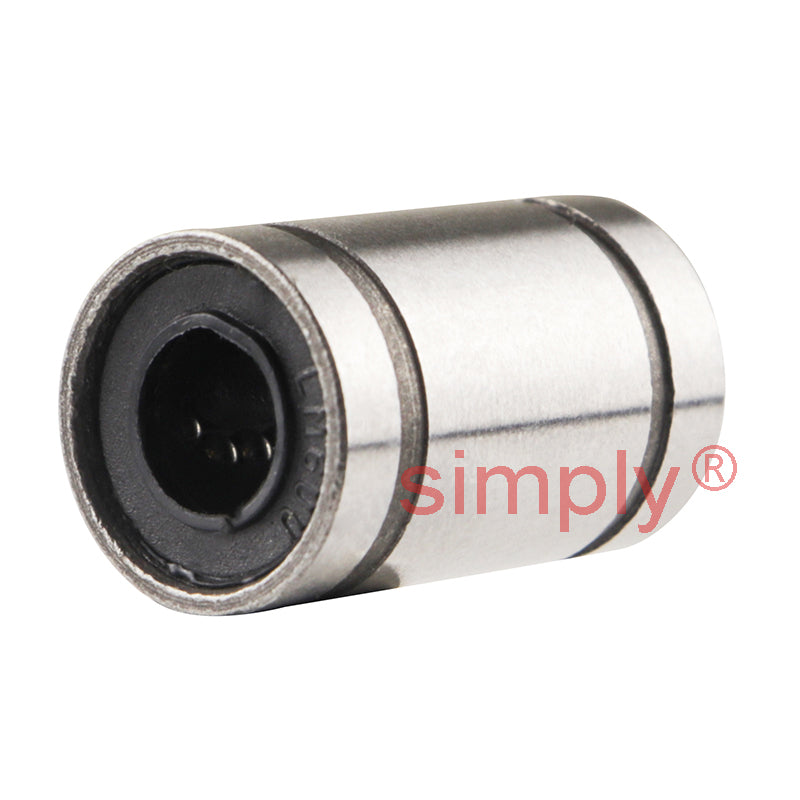

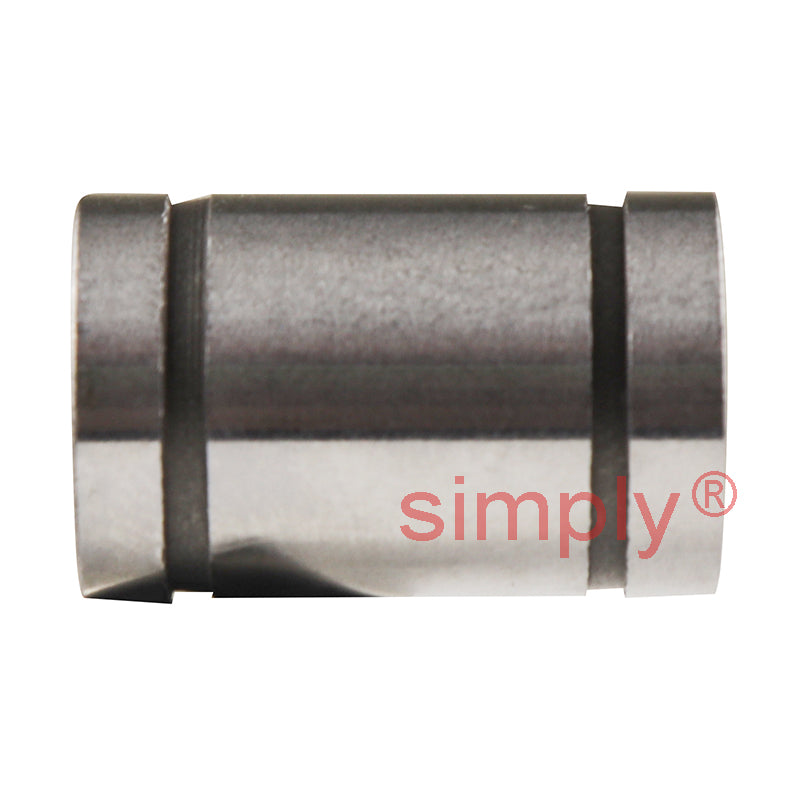

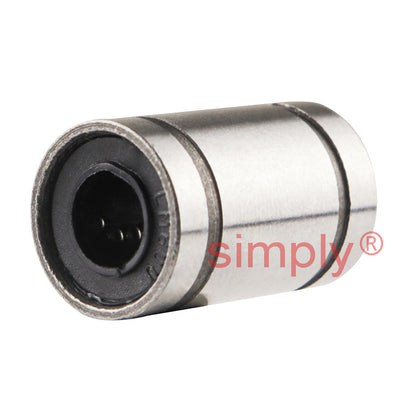

LM6UU Closed Linear Ball Bushing with Rubber Seals 6x12x19mm

LM6UU Closed Linear Ball Bushing with Rubber Seals 6x12x19mm
$14.56 ex VAT
$14.56 ex VAT
Sale Sold out

Equivalent to: SM6GUU LBD6UU LB6NYDD L6UU TB6UU KLM6LL SDM6YUU

In stock

Price Break
3+ $9.75
5+ $9.20
10+ $9.09
15+ $8.98
20+ $8.87
30+ $8.77
40+ $8.22
50+ $8.11
60+ $8.00
75+ $7.89
100+ $7.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
6mm
Outside Diameter:
12mm
Length:
19mm
Technical
Inside Diameter dr 6mm Tol + 0 to - 6µm
Outside Diameter D 12mm Tol + 0 to - 10µm
Length L 19mm Tol + 0 to - 200µm
W 1.1mm
D1 11.5mm
Eccentricity 8µm
Dynamic load C 11 kgf
Static load C<sub>o</sub> 19 kgf
Weight 8 g
B 13.5mm Tol + 0 to - 200&micro;m
Number of ball rows 3
Tolerances dr & D Apply to closed type only
