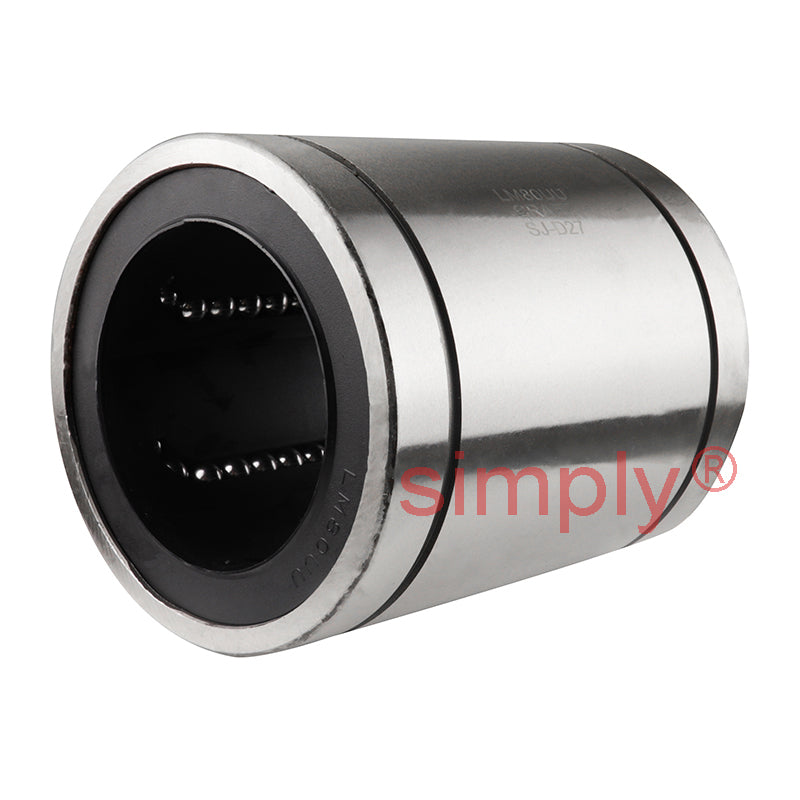

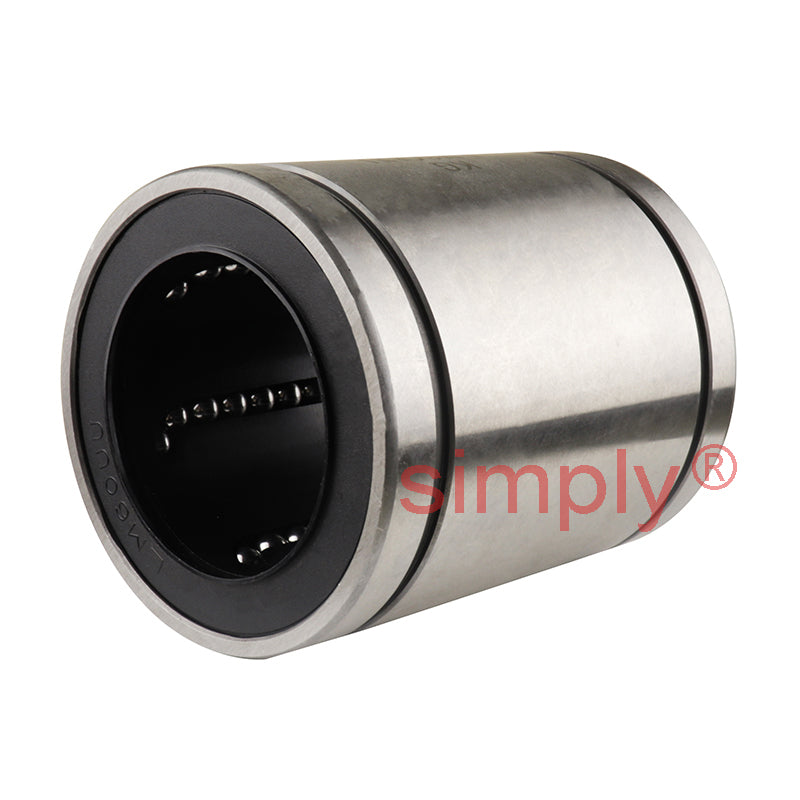

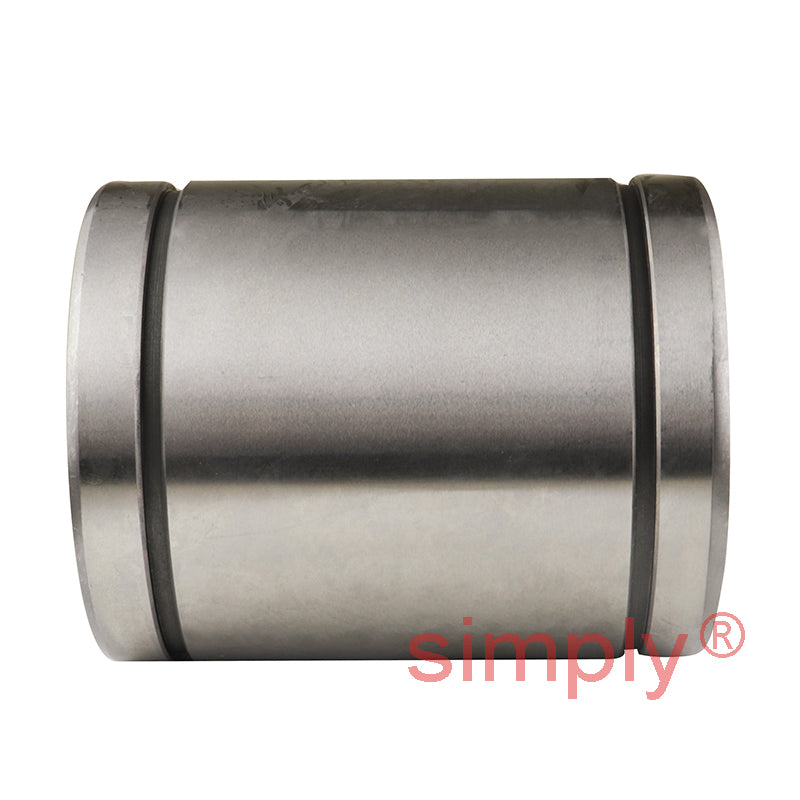

• LM60UU Closed Linear Ball Bushing with Rubber Seals 60x90x110mm
  • LM60UU Closed Linear Ball Bushing with Rubber Seals 60x90x110mm
  • LM60UU Closed Linear Ball Bushing with Rubber Seals 60x90x110mm
1 3

SKU: LM.60.UU.EU

LM60UU Closed Linear Ball Bushing with Rubber Seals 60x90x110mm

LM60UU Closed Linear Ball Bushing with Rubber Seals 60x90x110mm
$46.33 ex VAT
$46.33 ex VAT
Sale Sold out

Equivalent to: SM60GUU LBD60UU N60VUU L60UU SDM60YUU

In stock

Price Break
3+ $31.04
5+ $29.29
10+ $28.94
15+ $28.59
20+ $28.25
30+ $27.90
40+ $26.15
50+ $25.81
60+ $25.46
75+ $25.11
100+ $24.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
60mm
Outside Diameter:
90mm
Length:
110mm
Technical
Inside Diameter dr 60mm Tol + 0 to - 9µm
Outside Diameter D 90mm Tol + 0 to - 20µm
Length L 110mm Tol + 0 to - 400µm
W 3.15mm
D1 86.5mm
Eccentricity 17µm
Dynamic load C 490 kgf
Static load C<sub>o</sub> 830 kgf
Weight 2000 g
B 85mm Tol + 0 to - 400&micro;m
Number of ball rows 6
Tolerances dr & D Apply to closed type only
