SKU: LM.80.UU.AJ.EU

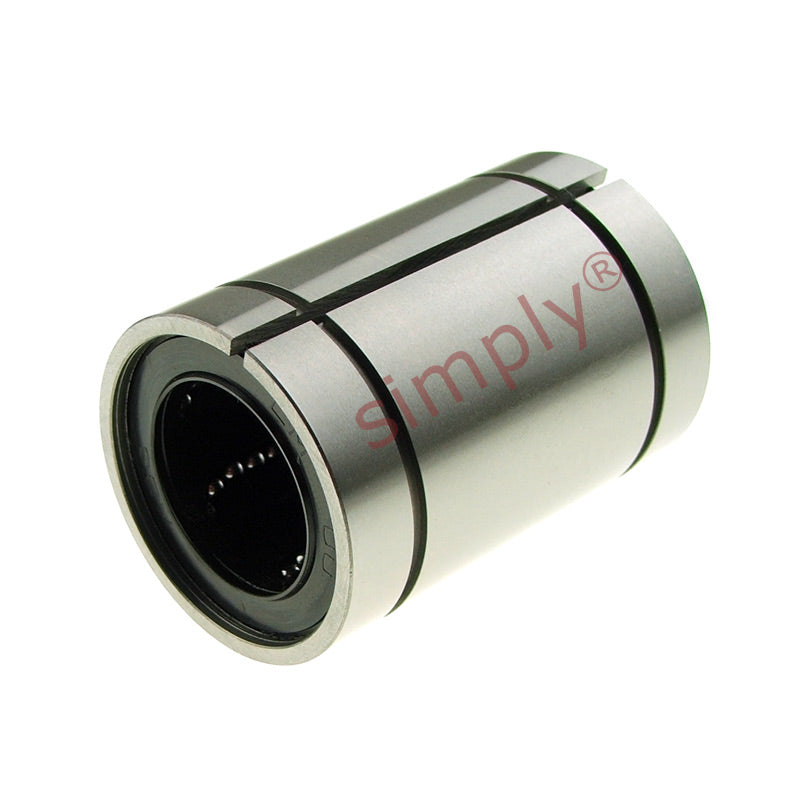

LM80UUAJ Adjustable Linear Ball Bushing with Rubber Seals 80x120x140mm - Allow 2 Weeks
Equivalent to: SM80GUUAJ N80VUUADJ L80ADJUU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
LM-AJ Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 120mm
- Length:
- 140mm
Technical
| Inside Diameter dr | 80mm Tol + 0 to - 9µm |
|---|---|
| Outside Diameter D | 120mm Tol + 0 to - 20µm |
| Length L | 140mm Tol + 0 to - 400µm |
| W | 4.15mm |
| D1 | 116mm |
| h | 3mm |
| Eccentricity | 17µm |
| Dynamic load C | 835 kgf |
| Static load C<sub>o</sub> | 1310 kgf |
| Weight | 4520 g |
| B | 105.5mm Tol + 0 to - 400µm |
| Number of ball rows | 6 |
