SKU: LM.E.12.UU.AJ.EU

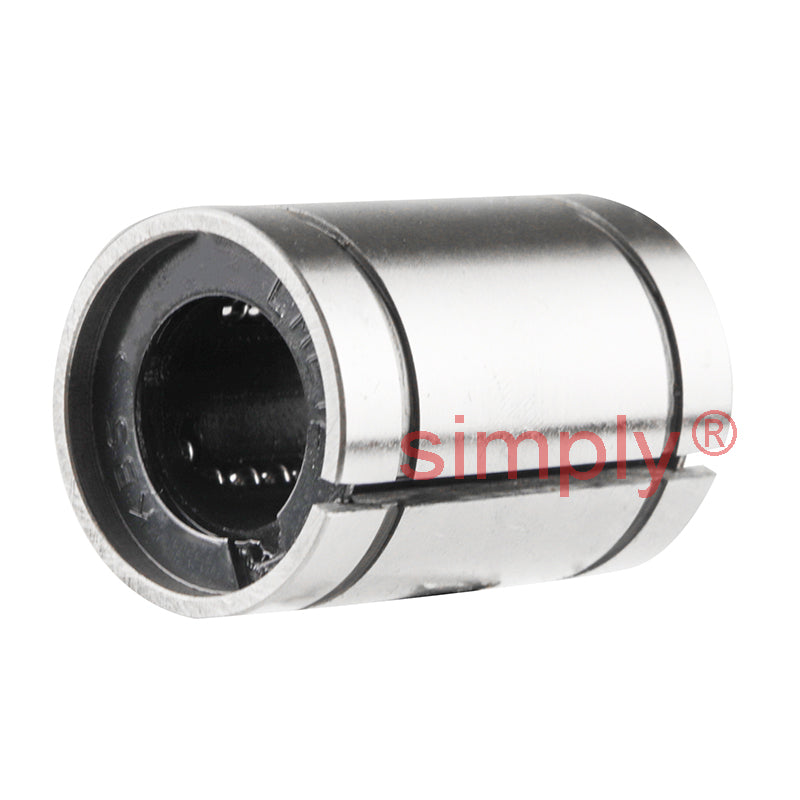

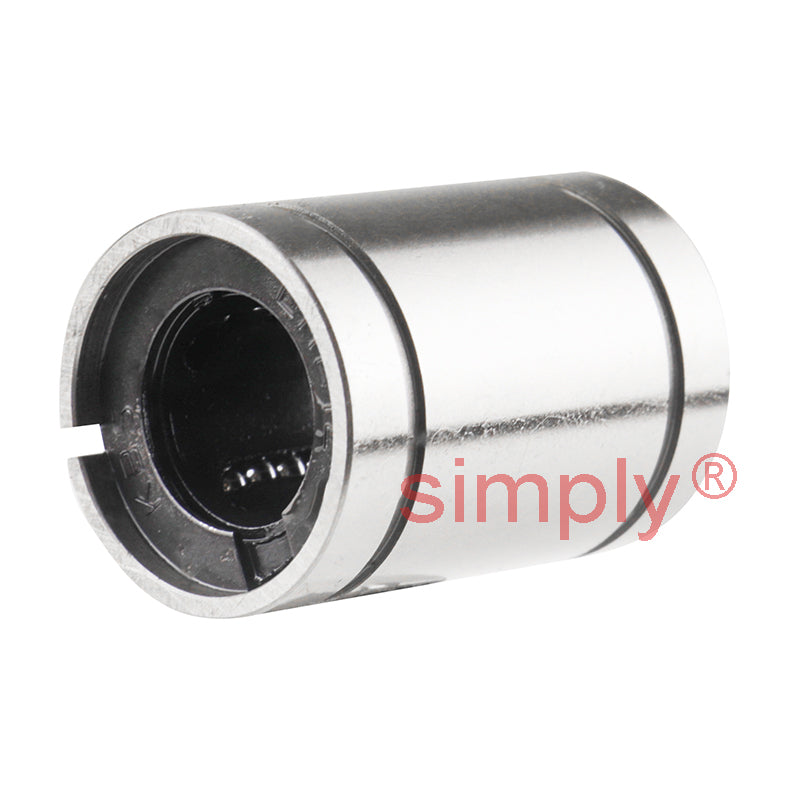

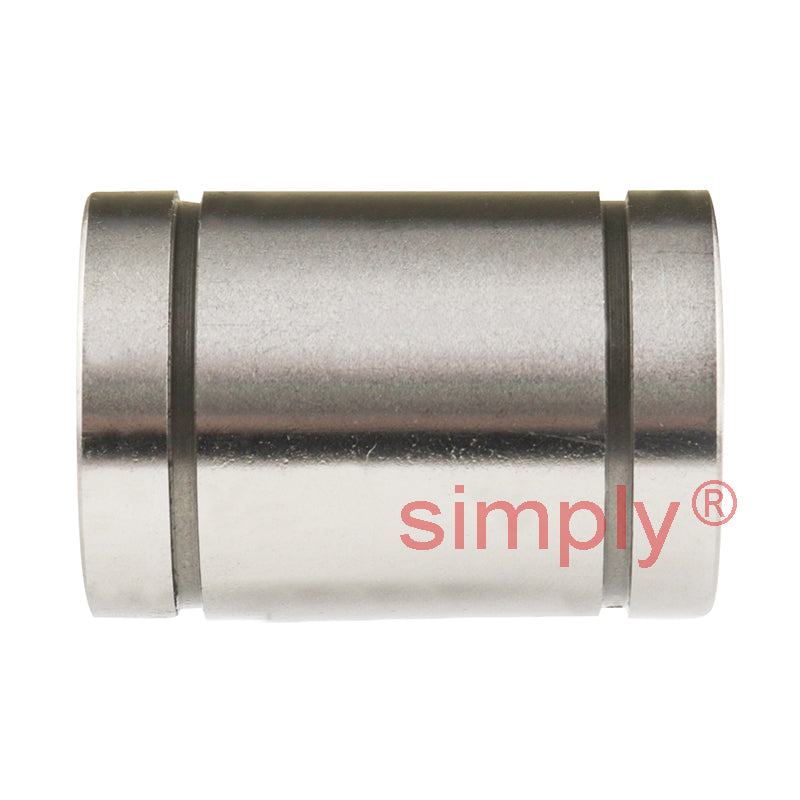

LME12UUAJ Adjustable Linear Ball Bushing with Rubber Seals 12x22x32mm

LME12UUAJ Adjustable Linear Ball Bushing with Rubber Seals 12x22x32mm
$14.47 ex VAT
$14.47 ex VAT
Sale Sold out

Equivalent to: KB12GUUAJ MAM12ADJWW LBE12UUAJ

In stock

Price Break
3+ $9.69
5+ $9.15
10+ $9.04
15+ $8.93
20+ $8.82
30+ $8.71
40+ $8.17
50+ $8.06
60+ $7.95
75+ $7.84
100+ $7.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Outside Diameter:
22mm
Length:
32mm
Technical
Inside Diameter dr 12mm Tol +8 to - 0µm
Outside Diameter D 22mm Tol + 0 to - 9µm
Length L 32mm Tol + 0 to - 200µm
W 1.3mm
D1 21mm
B 22.9mm
h 1.5mm
Eccentricity 12µm
Dynamic load C 60 kgf
Static load C<sub>o</sub> 51 kgf
Weight 41 g
Number of ball rows 4
Tolerances dr & D Apply to closed type only
