SKU: LM.E.12.UU.EU

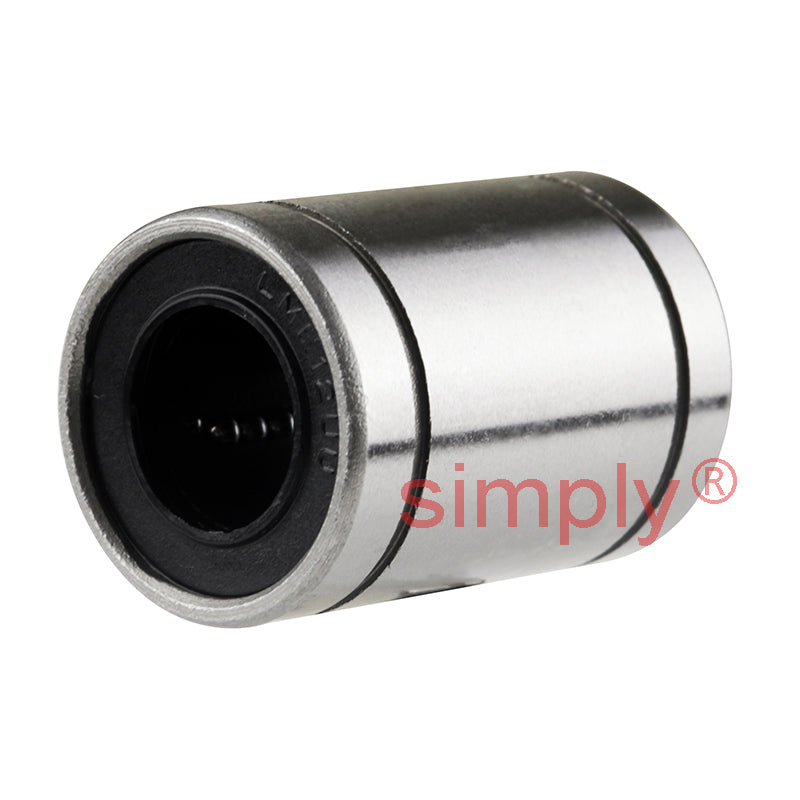

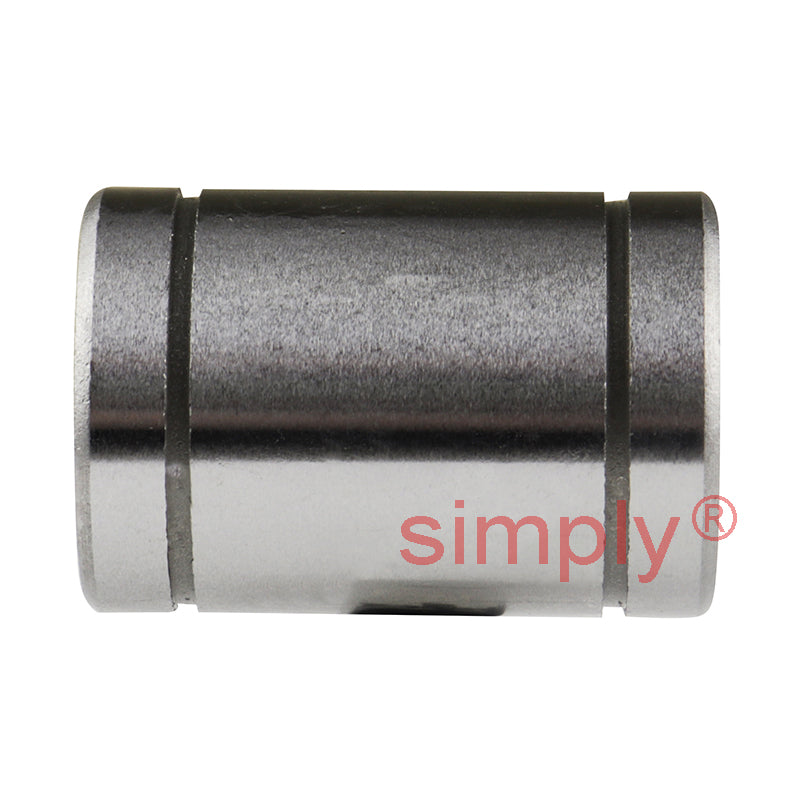

LME12UU Closed Linear Ball Bushing with Rubber Seals 12x22x32mm

LME12UU Closed Linear Ball Bushing with Rubber Seals 12x22x32mm
$12.80 ex VAT
$12.80 ex VAT
Sale Sold out

Equivalent to: KB12GUU MAM12WW LBE12UU

In stock

Price Break
3+ $8.57
5+ $8.09
10+ $7.99
15+ $7.90
20+ $7.80
30+ $7.70
40+ $7.22
50+ $7.12
60+ $7.03
75+ $6.93
100+ $6.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Outside Diameter:
22mm
Length:
32mm
Technical
Inside Diameter dr 12mm Tol +8 to - 0µm
Outside Diameter D 22mm Tol + 0 to - 200µm
Length L 32mm Tol + 0 to - 200µm
W 1.3mm
D1 21mm
B 22.9mm
Eccentricity 12µm
Dynamic load C 60 kgf
Static load C<sub>o</sub> 51 kgf
Weight 41 g
Number of ball rows 4
Tolerances dr & D Apply to closed type only
