• LME12UUOP Open Linear Ball Bushing with Rubber Seals 12x22x32mm
  • LME12UUOP Open Linear Ball Bushing with Rubber Seals 12x22x32mm
  • LME12UUOP Open Linear Ball Bushing with Rubber Seals 12x22x32mm
1 3

SKU: LM.E.12.UU.OP.EU

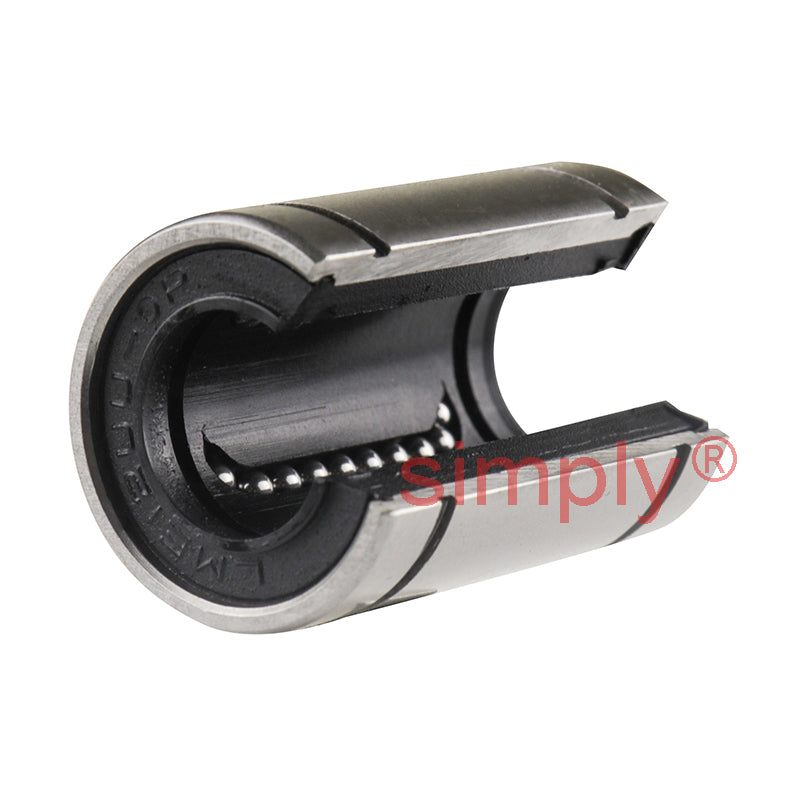

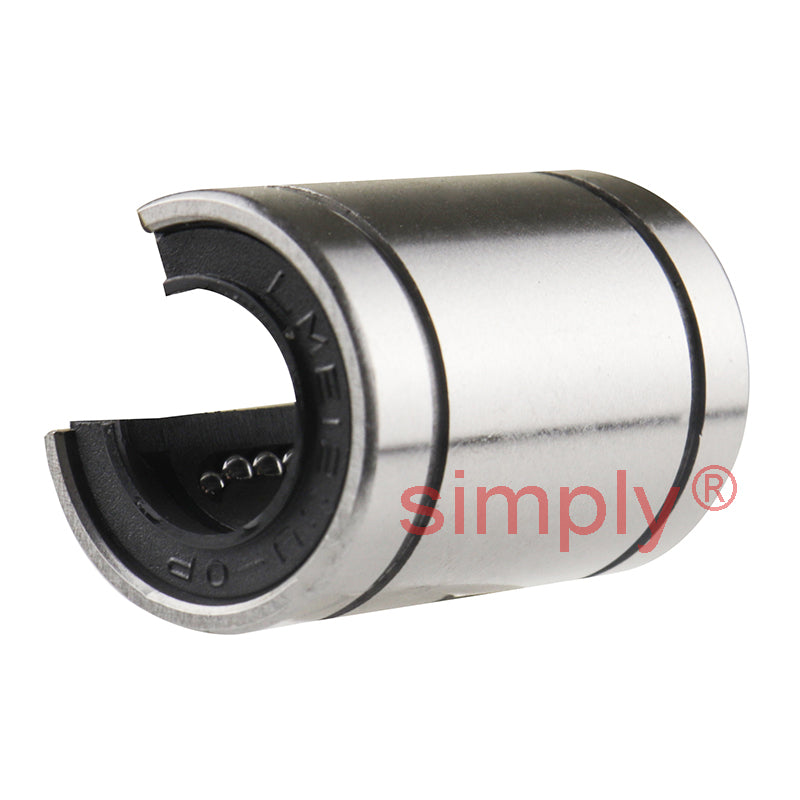

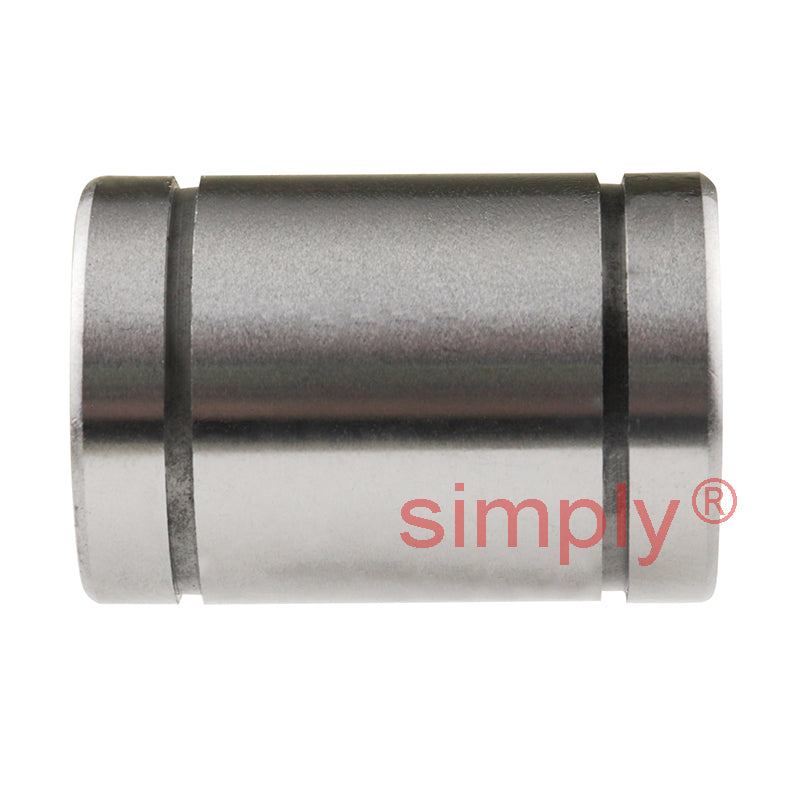

LME12UUOP Open Linear Ball Bushing with Rubber Seals 12x22x32mm

LME12UUOP Open Linear Ball Bushing with Rubber Seals 12x22x32mm
$14.19 ex VAT
$14.19 ex VAT
Sale Sold out

Equivalent to: KB12GUU-OP MAM12OPNWW LBE12UUOP

In stock

Price Break
3+ $9.50
5+ $8.97
10+ $8.86
15+ $8.76
20+ $8.65
30+ $8.54
40+ $8.01
50+ $7.90
60+ $7.79
75+ $7.69
100+ $7.47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Outside Diameter:
22mm
Length:
32mm
Technical
Inside Diameter dr 12mm Tol +8 to - 0µm
Outside Diameter D 22mm Tol + 0 to - 9µm
Length L 32mm Tol + 0 to - 200µm
W 1.3mm
D1 21mm
B 22.9mm
h1 7.5mm
Eccentricity 12µm
Dynamic load C 60 kgf
Static load C<sub>o</sub> 51 kgf
Weight 41 g
Number of ball rows 3
Tolerances dr & D Apply to closed type only
