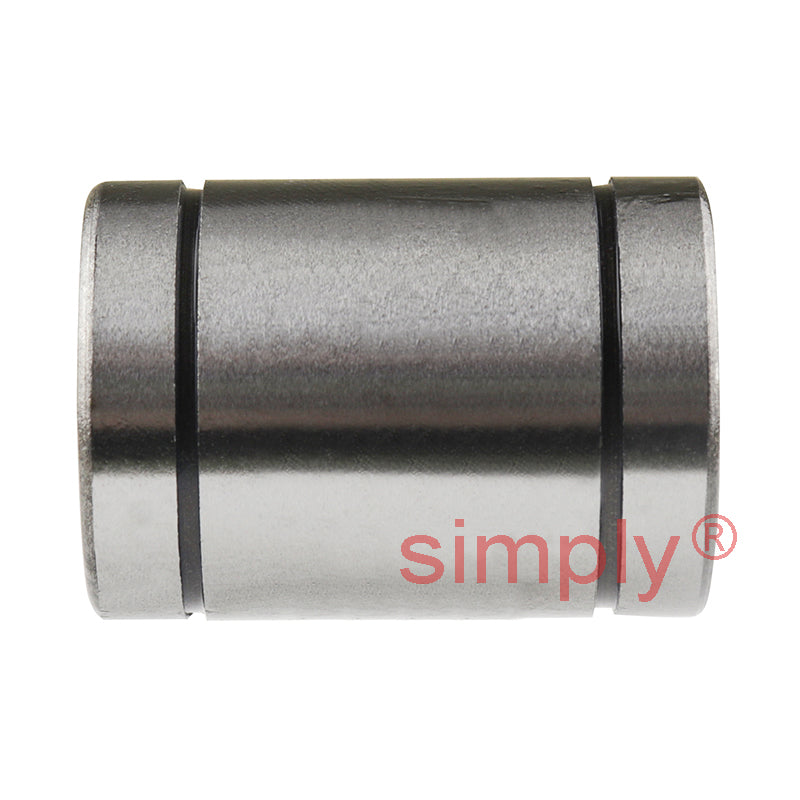

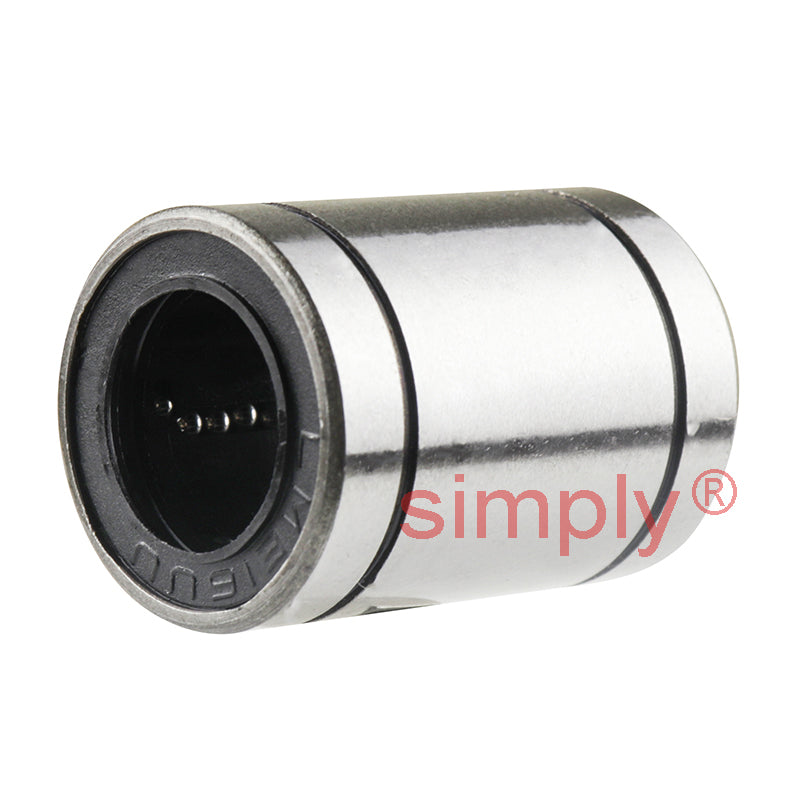

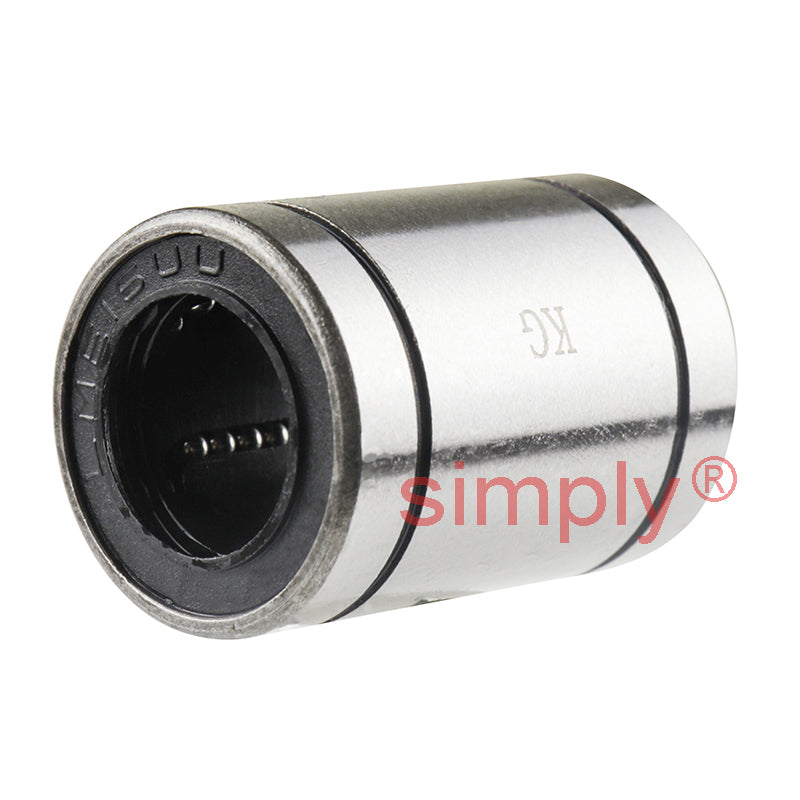

• LME16UU Closed Linear Ball Bushing with Rubber Seals 16x26x36mm
  • LME16UU Closed Linear Ball Bushing with Rubber Seals 16x26x36mm
  • LME16UU Closed Linear Ball Bushing with Rubber Seals 16x26x36mm
1 3

SKU: LM.E.16.UU.EU

LME16UU Closed Linear Ball Bushing with Rubber Seals 16x26x36mm

LME16UU Closed Linear Ball Bushing with Rubber Seals 16x26x36mm
$14.59 ex VAT
$14.59 ex VAT
Sale Sold out

Equivalent to: KB16GUU KB1636PP MAM16WW LBE16UU

In stock

Price Break
3+ $9.77
5+ $9.22
10+ $9.11
15+ $9.00
20+ $8.89
30+ $8.78
40+ $8.23
50+ $8.12
60+ $8.01
75+ $7.90
100+ $7.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
16mm
Outside Diameter:
26mm
Length:
36mm
Technical
Inside Diameter dr 16mm Tol +9 to - 0µm
Outside Diameter D 26mm Tol + 0 to - 200µm
Length L 36mm Tol + 0 to - 200µm
W 1.3mm
D1 24.9mm
B 24.9mm
Eccentricity 12µm
Dynamic load C 49 kgf
Static load C<sub>o</sub> 78 kgf
Weight 57 g
Number of ball rows 4
Tolerances dr & D Apply to closed type only
