• LME16UUOP Open Linear Ball Bushing with Rubber Seals 16x26x36mm
  • LME16UUOP Open Linear Ball Bushing with Rubber Seals 16x26x36mm
  • LME16UUOP Open Linear Ball Bushing with Rubber Seals 16x26x36mm
1 3

SKU: LM.E.16.UU.OP.EU

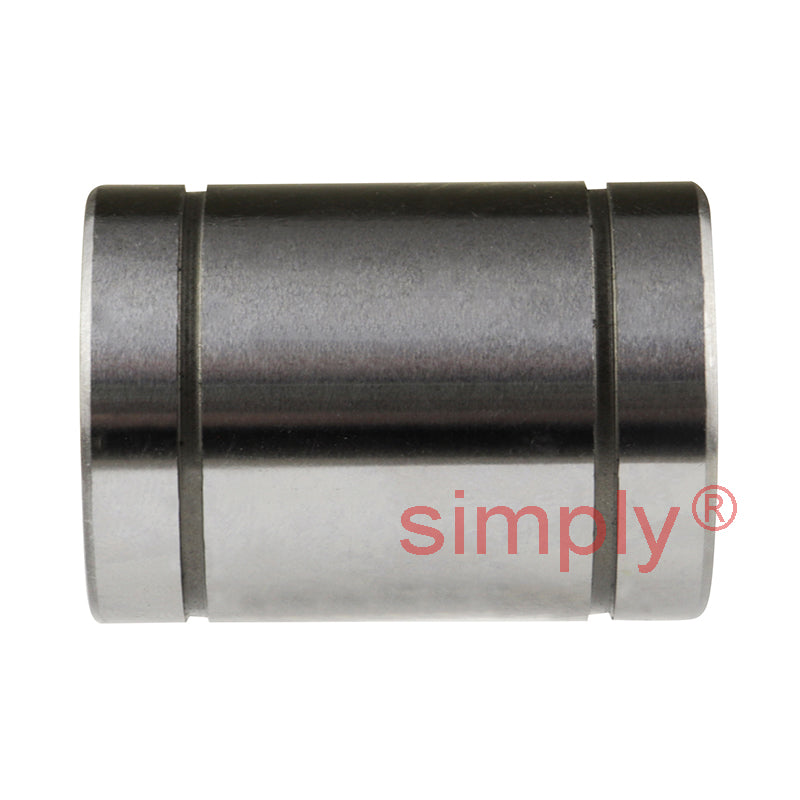

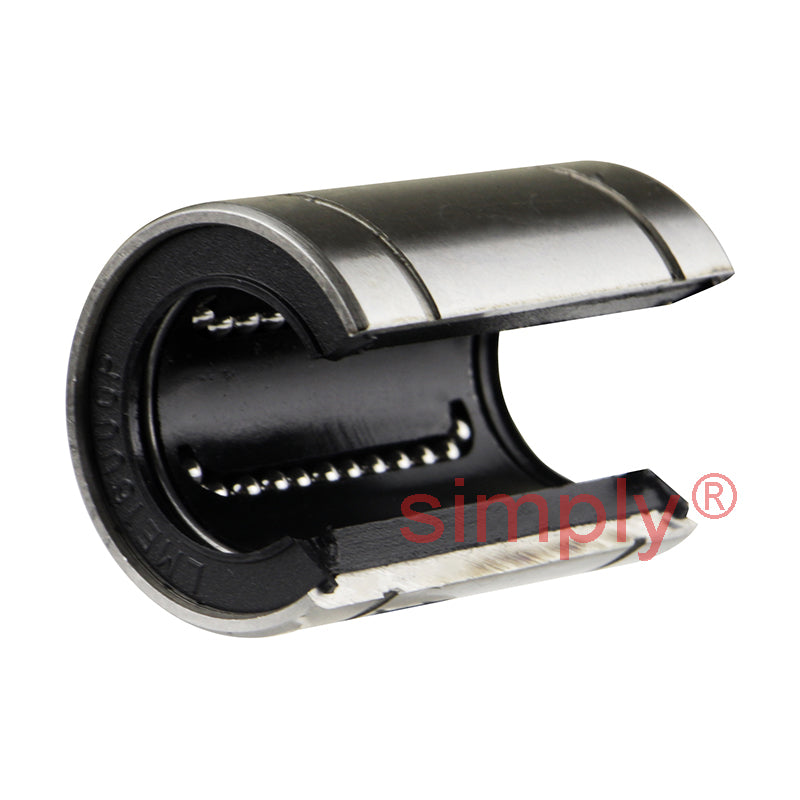

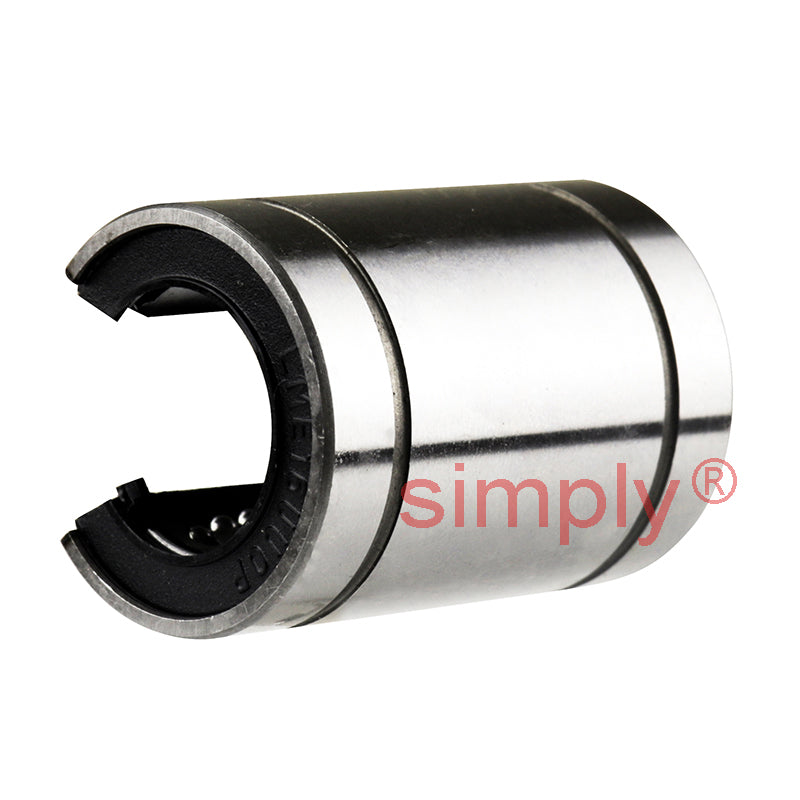

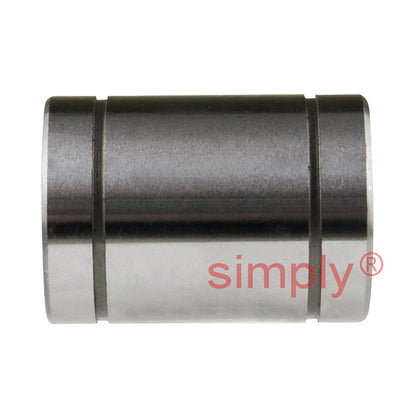

LME16UUOP Open Linear Ball Bushing with Rubber Seals 16x26x36mm

LME16UUOP Open Linear Ball Bushing with Rubber Seals 16x26x36mm
$25.29 ex VAT
$25.29 ex VAT
Sale Sold out

Equivalent to: KB16GUU-OP KBO1636PP MAM16OPNWW LBE16UUOP

In stock

Price Break
3+ $16.94
5+ $15.99
10+ $15.80
15+ $15.61
20+ $15.42
30+ $15.23
40+ $14.27
50+ $14.08
60+ $13.89
75+ $13.70
100+ $13.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
16mm
Outside Diameter:
26mm
Length:
36mm
Technical
Inside Diameter dr 16mm Tol +9 to - 0µm
Outside Diameter D 26mm Tol + 0 to - 9µm
Length L 36mm Tol + 0 to - 200µm
W 1.3mm
D1 24.9mm
B 24.9mm
h1 10mm
Eccentricity 12µm
Dynamic load C 49 kgf
Static load C<sub>o</sub> 78 kgf
Weight 57 g
Number of ball rows 3
Tolerances dr & D Apply to closed type only
