SKU: LM.E.20.UU.OP.EU

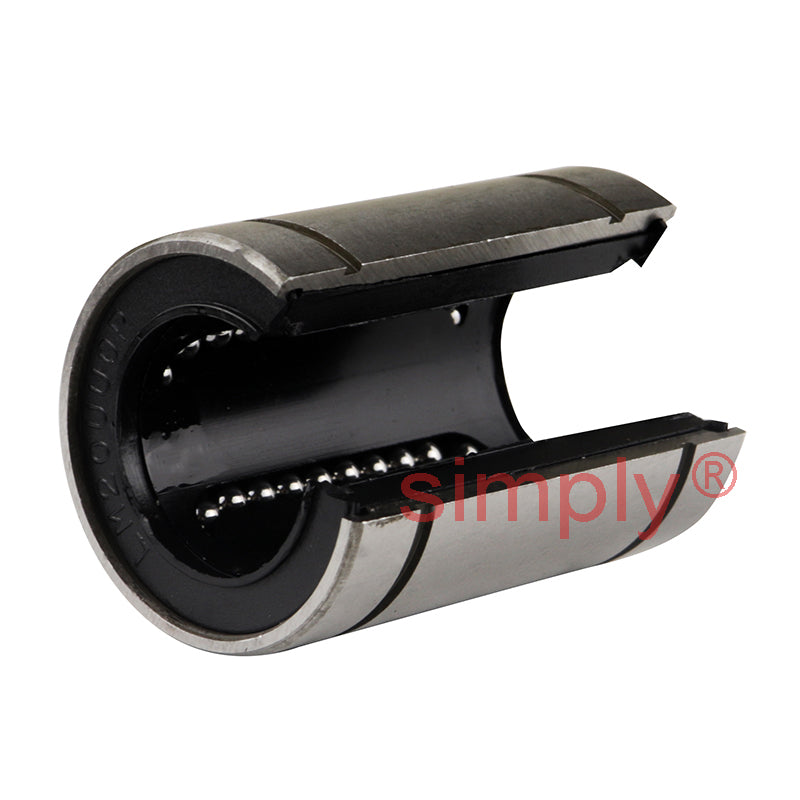

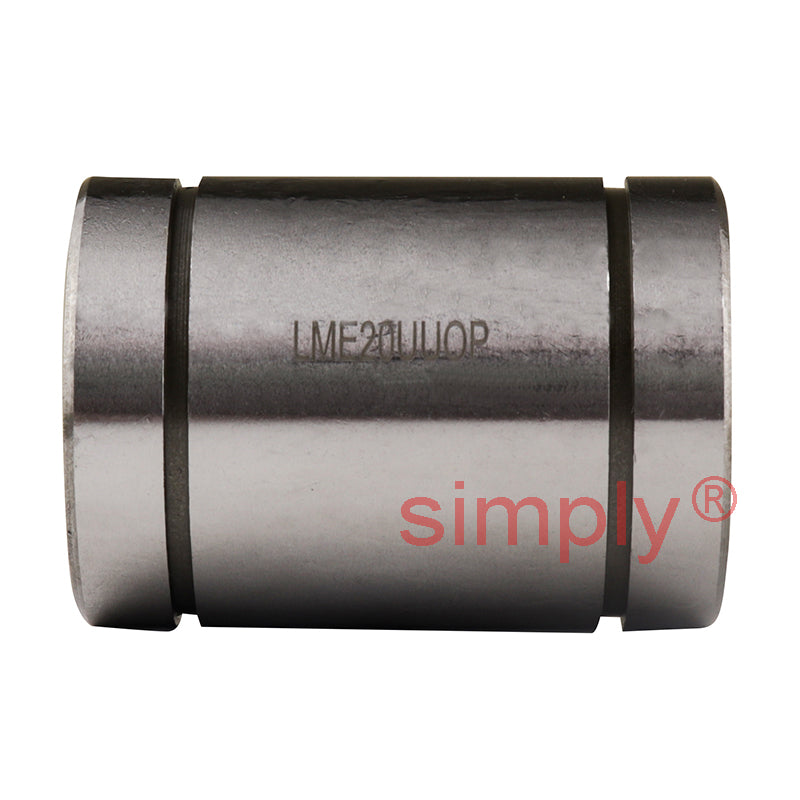

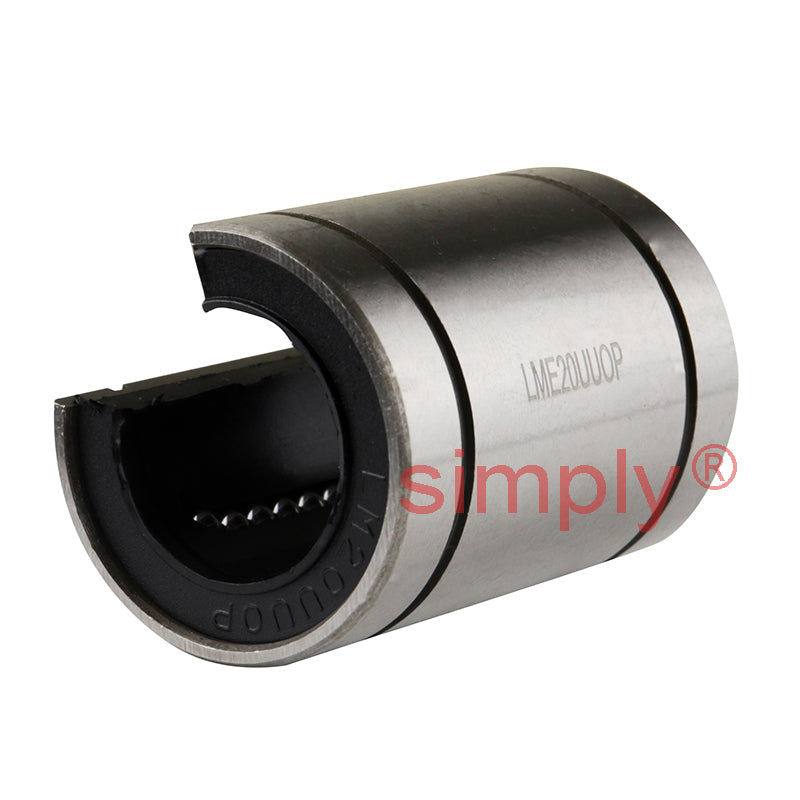

LME20UUOP Open Linear Ball Bushing with Rubber Seals 20x32x45mm

LME20UUOP Open Linear Ball Bushing with Rubber Seals 20x32x45mm
$25.18 ex VAT
$25.18 ex VAT
Sale Sold out

Equivalent to: KB20GUU-OP KBO2045PP MAM20OPNWW LBE20UUOP

In stock

Price Break
3+ $16.86
5+ $15.91
10+ $15.73
15+ $15.54
20+ $15.35
30+ $15.16
40+ $14.21
50+ $14.02
60+ $13.83
75+ $13.64
100+ $13.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Outside Diameter:
32mm
Length:
45mm
Technical
Inside Diameter dr 20mm Tol +9 to - 0µm
Outside Diameter D 32mm Tol + 0 to - 11µm
Length L 45mm Tol + 0 to - 200µm
W 1.6mm
D1 30.3mm
B 31.5mm
h1 10mm
Eccentricity 15µm
Dynamic load C 66 kgf
Static load C<sub>o</sub> 225 kgf
Weight 91 g
Number of ball rows 4
Tolerances dr & D Apply to closed type only
