SKU: LM.E.25.UU.AJ.EU

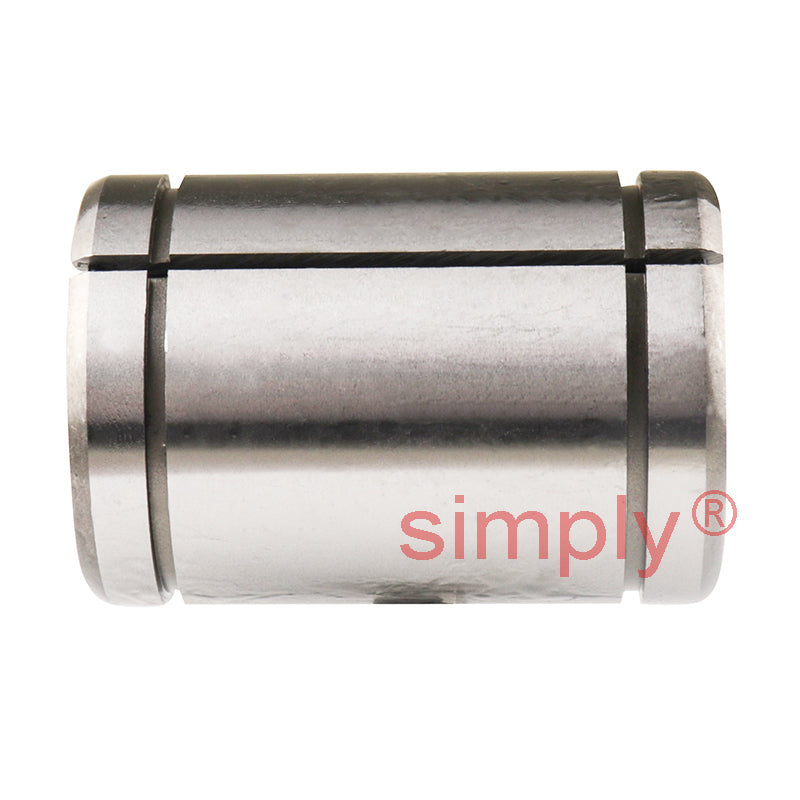

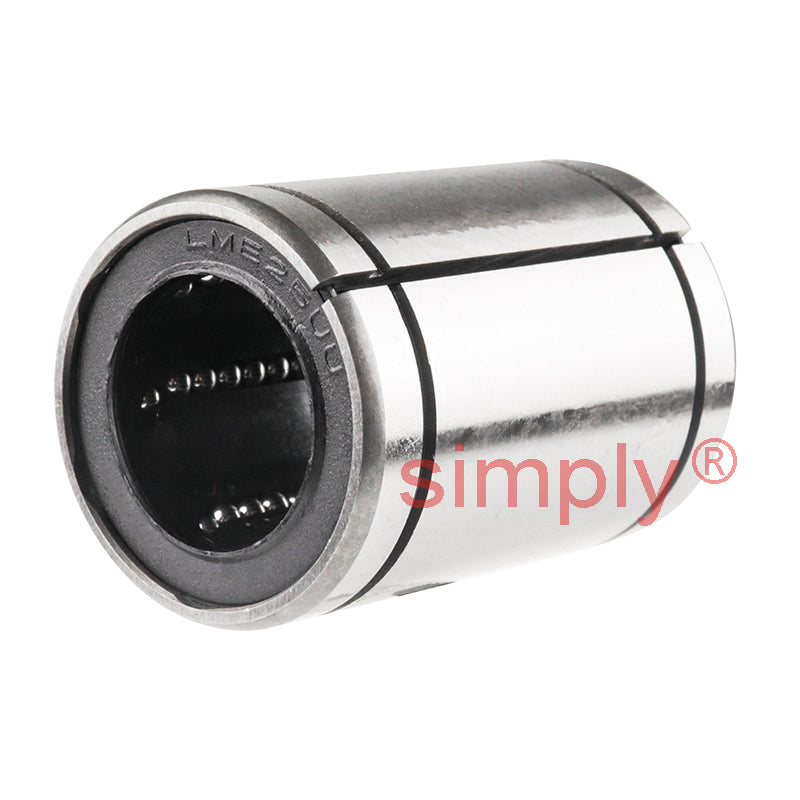

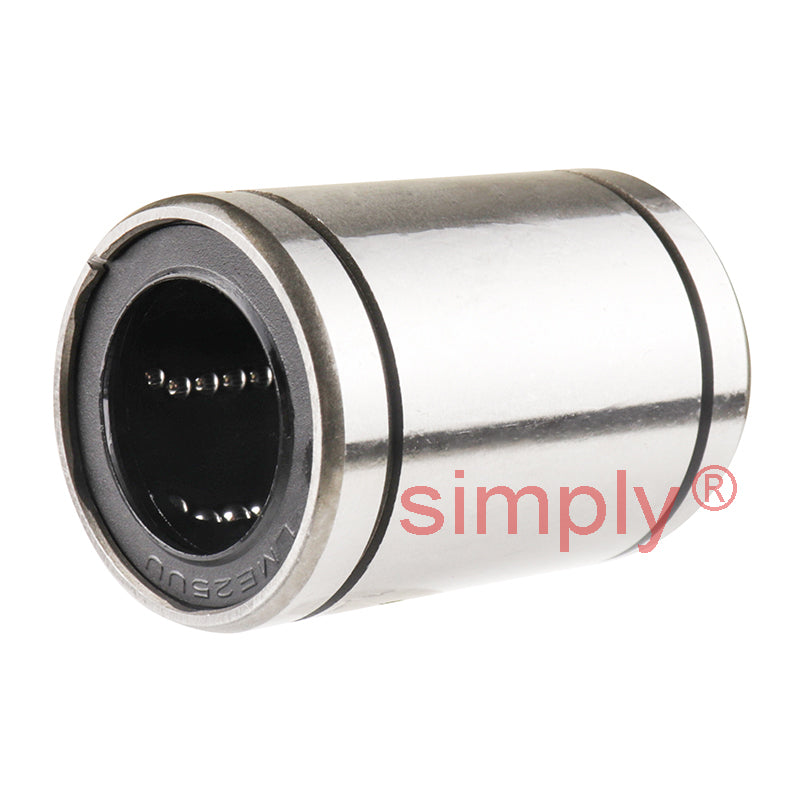

LME25UUAJ Adjustable Linear Ball Bushing with Rubber Seals 25x40x58mm

LME25UUAJ Adjustable Linear Ball Bushing with Rubber Seals 25x40x58mm
$21.96 ex VAT
$21.96 ex VAT
Sale Sold out

Equivalent to: KB25GUUAJ KBS2558PP MAM25ADJWW LBE25UUAJ

In stock

Price Break
3+ $14.71
5+ $13.88
10+ $13.72
15+ $13.55
20+ $13.39
30+ $13.22
40+ $12.39
50+ $12.23
60+ $12.06
75+ $11.90
100+ $11.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
40mm
Length:
58mm
Technical
Inside Diameter dr 25mm Tol +11 to - 1µm
Outside Diameter D 40mm Tol + 0 to - 11µm
Length L 58mm Tol + 0 to - 300µm
W 1.85mm
D1 37.5mm
B 44.1mm
h 2mm
Eccentricity 15µm
Dynamic load C 105 kgf
Static load C<sub>o</sub> 185 kgf
Weight 215 g
Number of ball rows 6
Tolerances dr & D Apply to closed type only
